YELUFT 5pcs 0.96 Inch I2C 12864 128x64 SSD1306 Pi/ESP32 Pre-Soldered IIC OLED Display Module Pixel Driver Self-Luminous

5pcs Pre-Soldered 0.96 Inch I2C IIC OLED Display Module 12864 128x64 Pixel SSD1306 Driver Self-Luminous Display Board with Protective Case for Arduino/Raspberry Pi/ESP32 (White)

YELUFT 5pcs 0.96 Inch I2C 12864 128x64 SSD1306 Pi/ESP32 Pre-Soldered IIC OLED Display Module Pixel Driver Self-Luminous

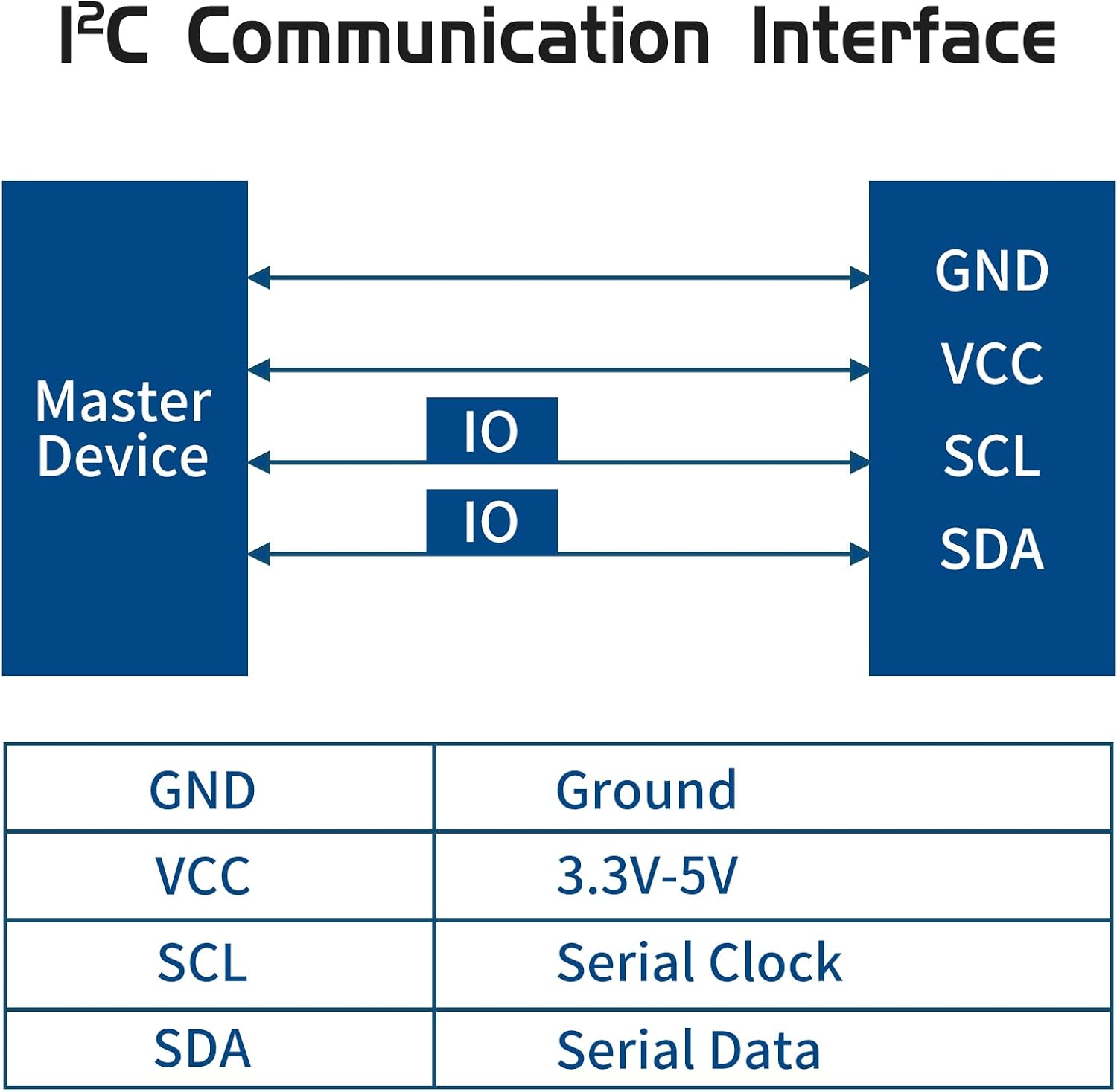

Visit the Store Visit the Store Visit the Store GND: Ground VCC: 3.3V-5V SCL: Serial Clock SDA: Serial Data If the resistor is connected to the 0x7B side, it means that the address of the IIC slave device is 0x7B; if it is connected to the 0x7A side, it means that the address of the IIC slave device is 0x7A 0.91-inch OLED Display 0.96-inch OLED Display 1.28-inch TFT-LCD Display 1.3-inch OLED Display 2.24-inch OLED Display 3.5-inch TFT Display 3.5-inch TFT Display

Brand: YELUFT

i2c iic, case, inch i2c, computers accessories, board, module 12864, accessories computer, display board, i2c, 128x64, case arduino, driver Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ 128 x 64 Pixel: Needn't backlight, these OLED module can self-luminous. It has super high contrast, bright and crisp dots, viewing angle is greater than 160, even tiny fonts quite readable
• ✓ No Embedded Fonts: There are no embedded fonts inside these Arduino display module, you can create the fonts through font generation software

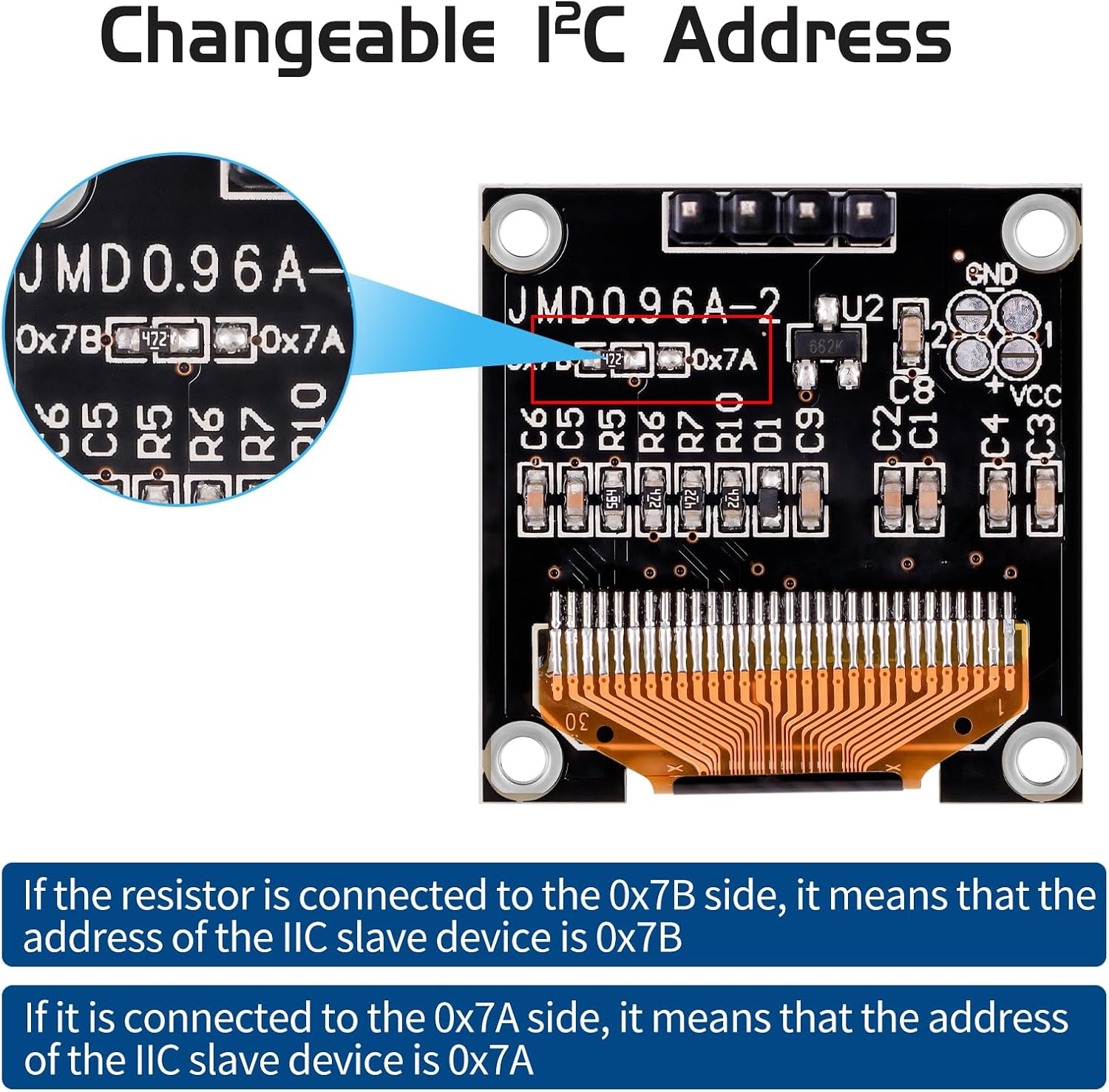

• ✓ Changeable IIC Address: If the resistor is connected to the 0x7B side, it means that the address of the IIC slave device is 0x7B; if it is connected to the 0x7A side, it means that the address of the IIC slave device is 0x7A

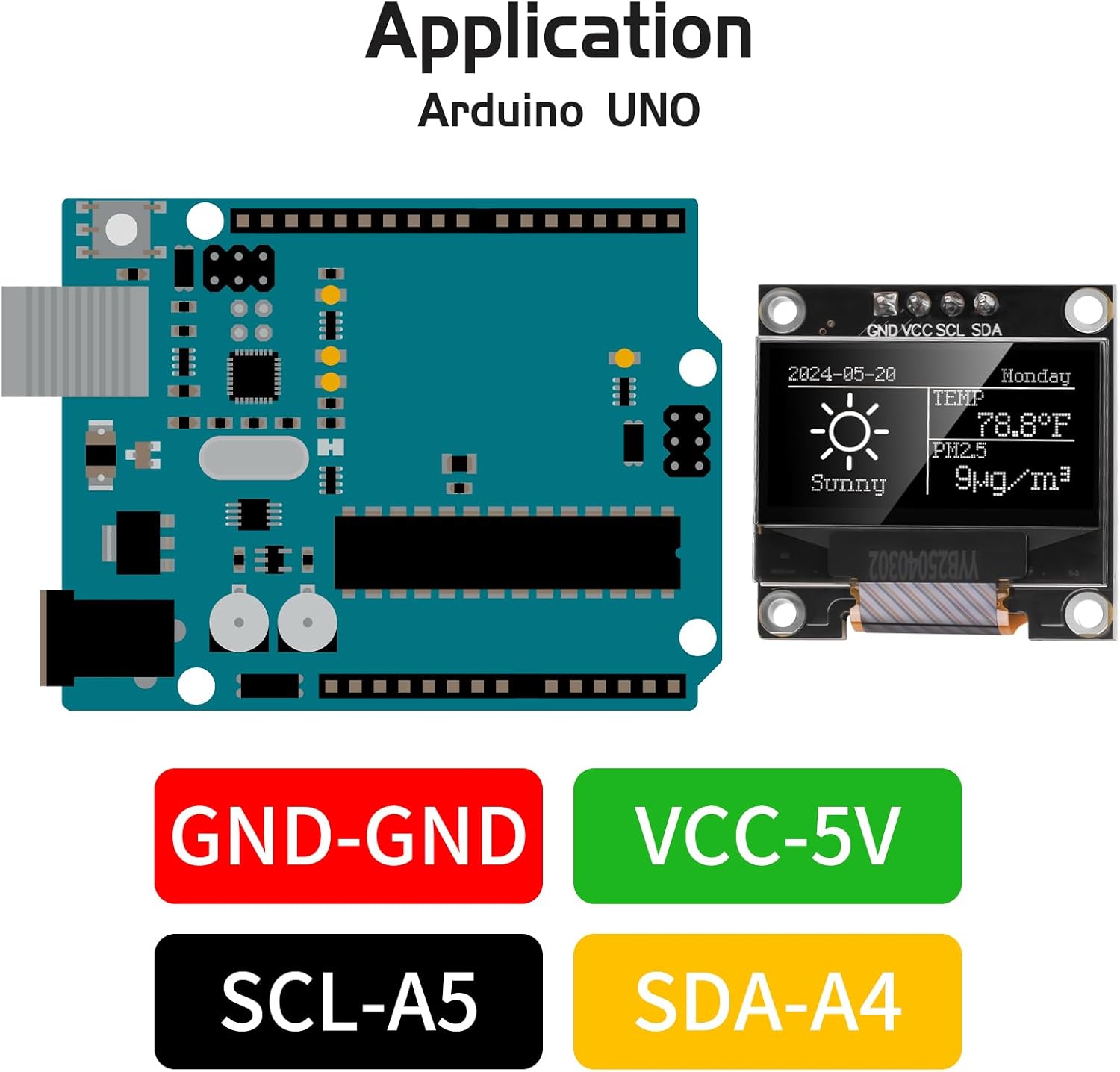

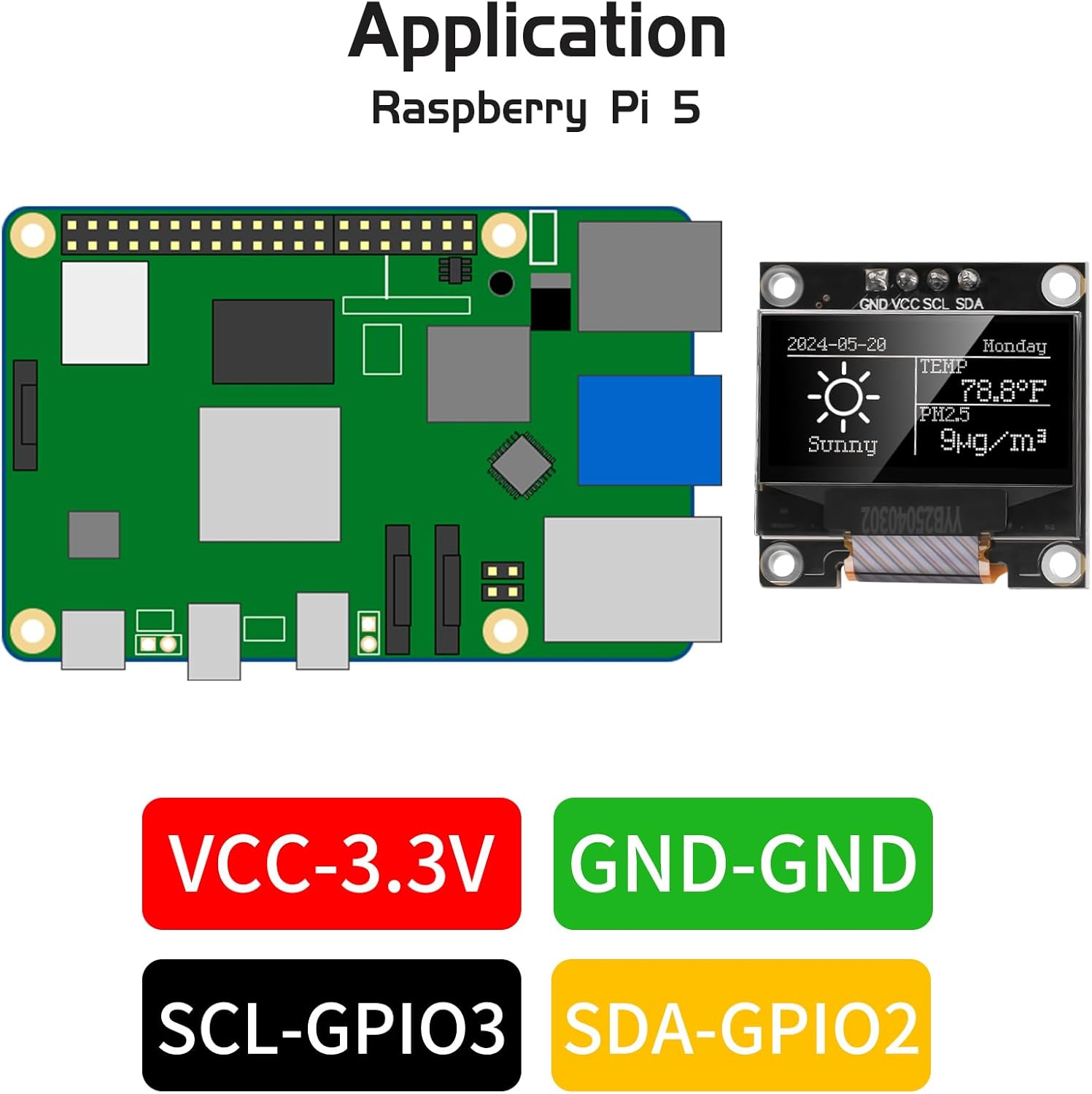

• ✓ Widely Application: These OLED display can be used for Arduino, Raspberry Pi 5/4B/3B+/3B/2B/Zero, STM32, C51, MSP430, ESP32 development board and so on. Showing graphical & textual information directly of your machines

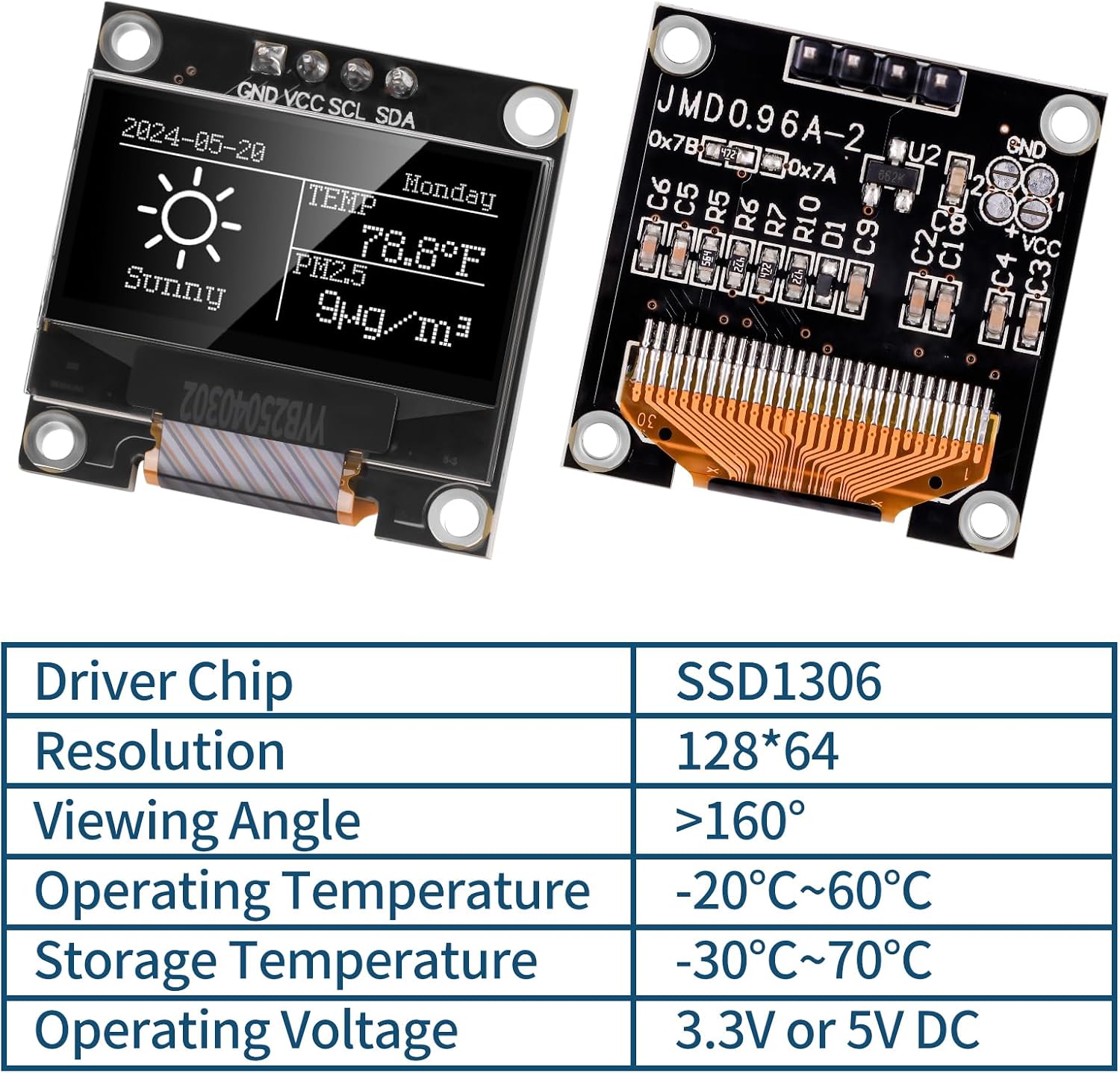

• ✓ Parameters: Screen Size: 0.96-inch; Driver Chip: SSD1306; Resolution: 128*64; Color: White; Viewing Angle: >160; Power Consumption: 0.06W; Voltage: 3.3V or 5V DC; Working Temperature: -20-60
