XYGStudy ESP32-S3 1.47inch 172320 262K 2.4GHz 5, 240MHz LX7 (ESP32-S3-LCD-1.47B-M) LCD Display Development Board Type

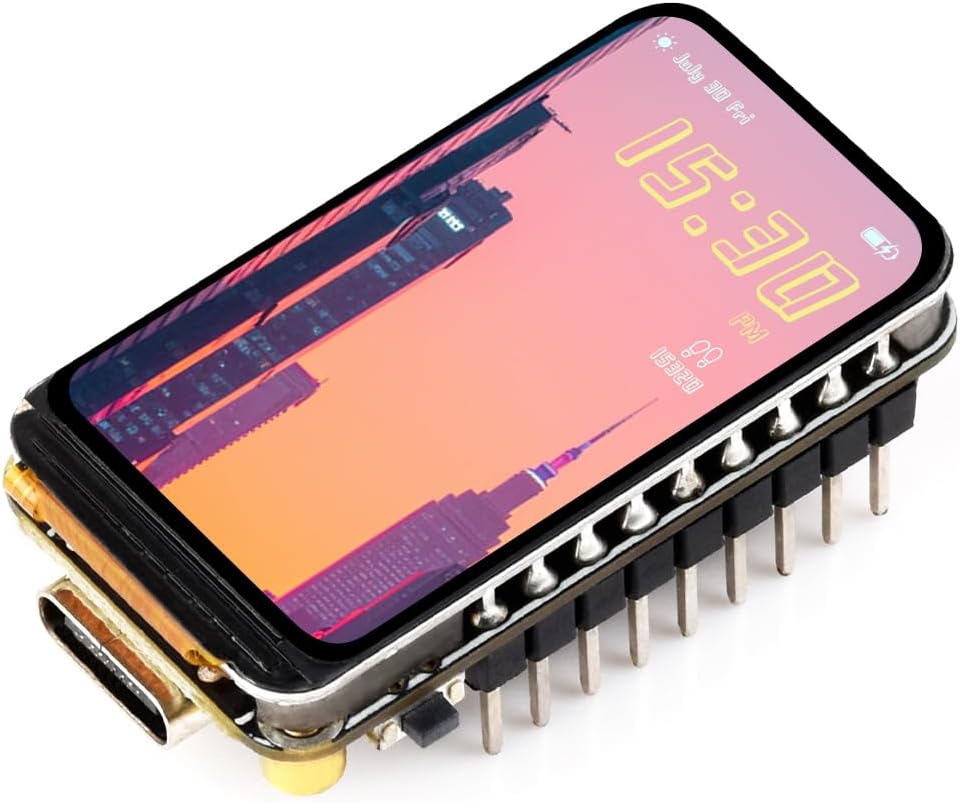

ESP32-S3 1.47inch LCD Display Development Board Type B, 172320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi/BLE 5, 240MHz LX7 Dual-core Processor @XYGStudy (ESP32-S3-LCD-1.47B-M)

XYGStudy ESP32-S3 1.47inch 172320 262K 2.4GHz 5, 240MHz LX7 (ESP32-S3-LCD-1.47B-M) LCD Display Development Board Type

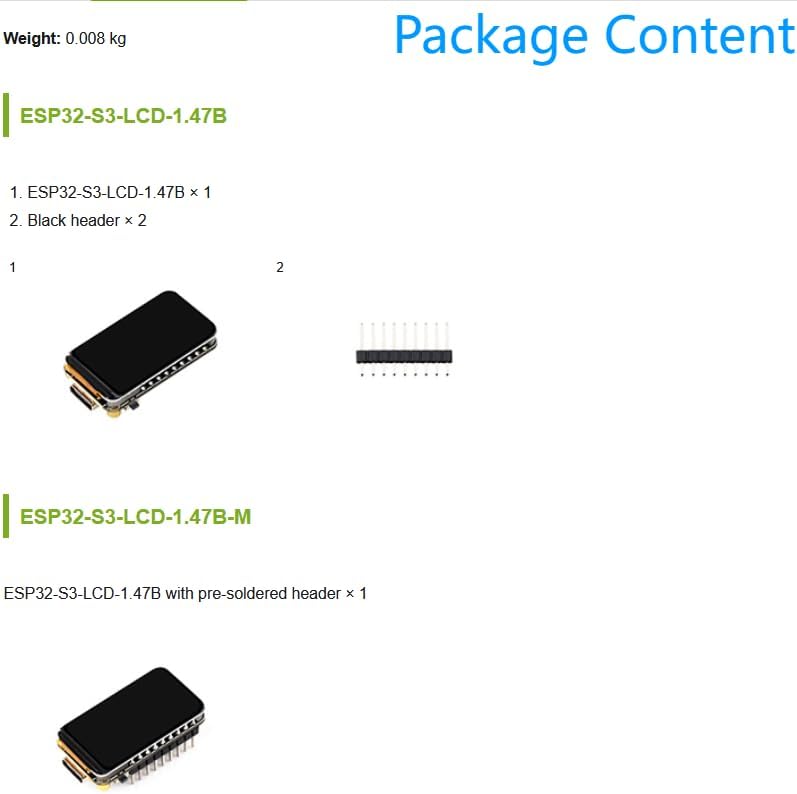

Overview ESP32-S3 1.47inch LCD display Development Board Type B, 172320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor Package Contains : ESP32-S3-LCD-1.47B with pre-soldered header 1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.

Brand: XYGStudy

computers, lx7 dual, lx7, 47inch, core, 240mhz lx7, resolution, xygstudy esp32, development, core processor, xygstudy, dual Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ Part Number: ESP32-S3-LCD-1.47B-M
• ✅ ESP32-S3 1.47inch LCD display Development Board Type B, 172320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor

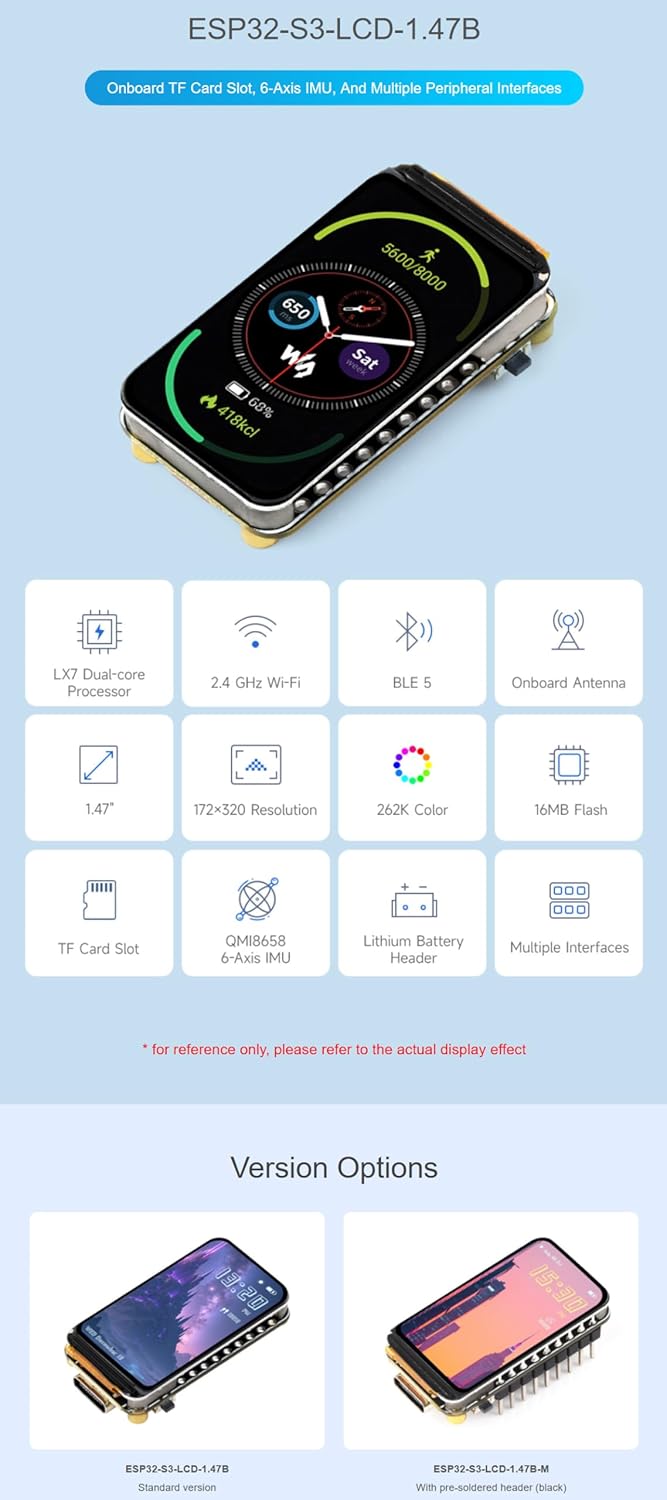

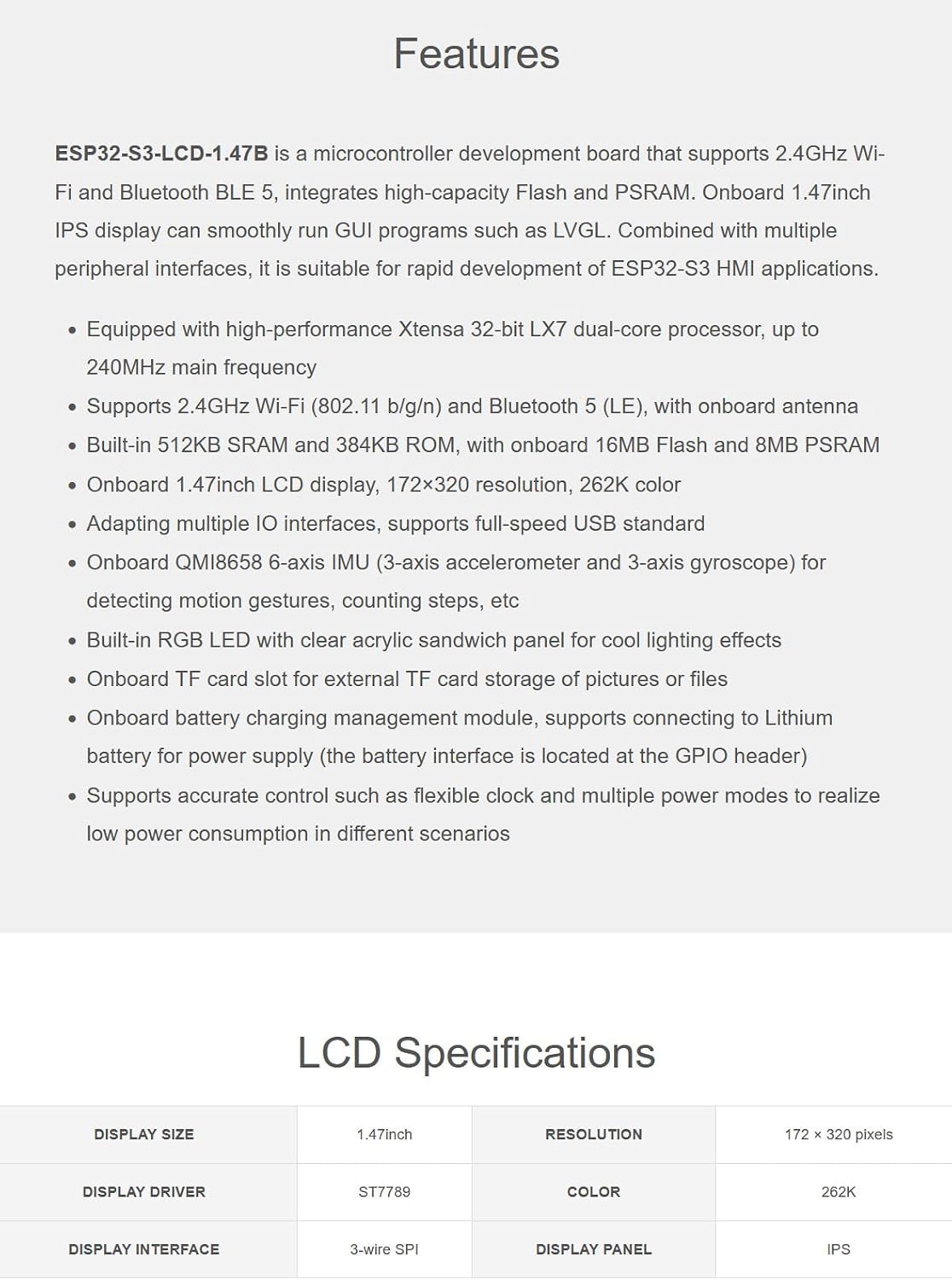

• ✅ ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

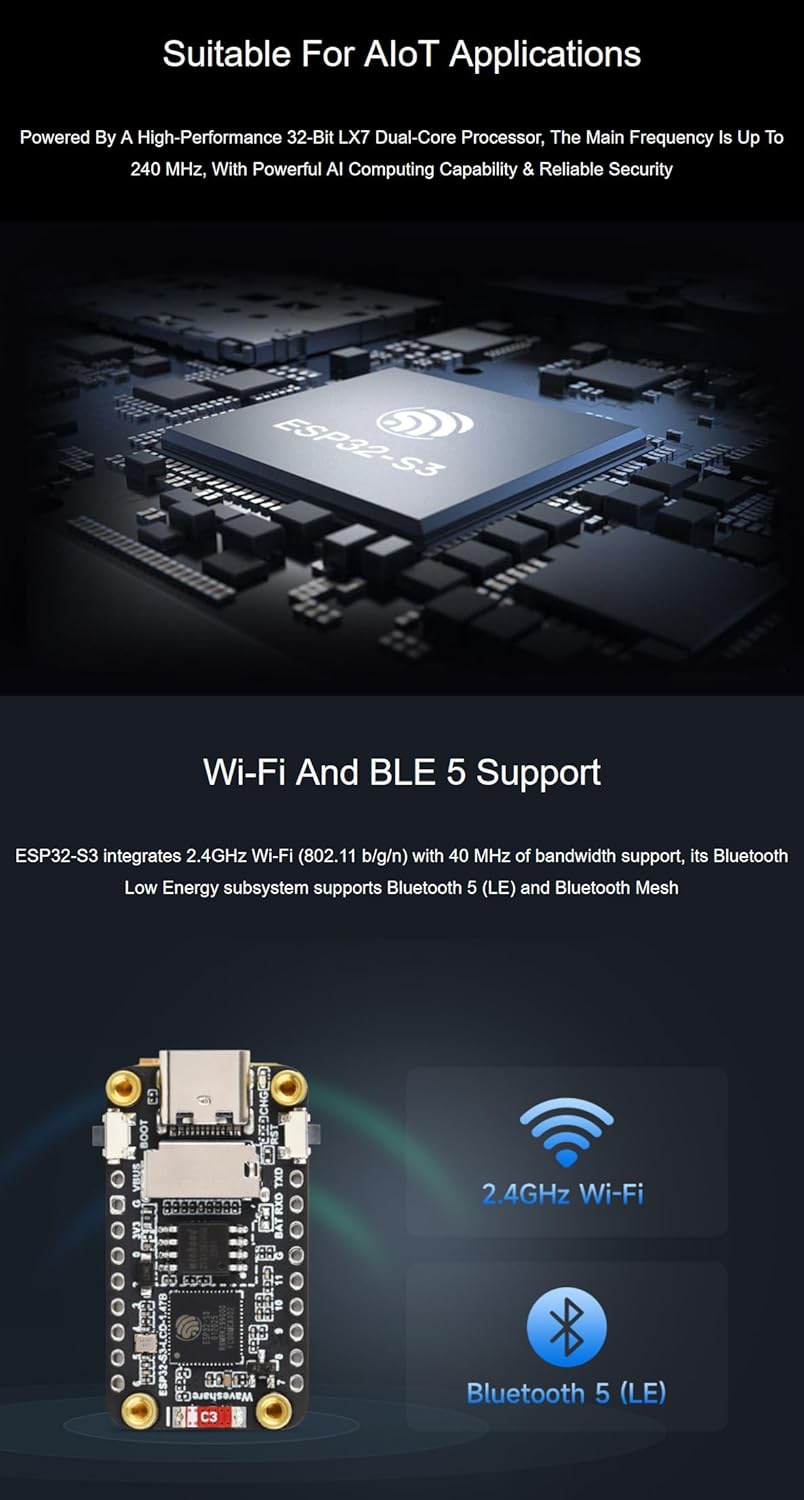

• ✅ Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 1.47inch LCD display, 172320 resolution, 262K color
• ✅ Adapting multiple IO interfaces, supports full-speed USB standard. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

Product Details

• ✅ Model Number: ESP32-S3-LCD-1.47B-M
