XIITIA 2pcs 2.42" SSD1309 128x64 2.42 Inch I2C 7 OLED Display Module OLED LCD Display Module IIC SPI Pin (Blue Light)

2pcs 2.42' SSD1309 128x64 OLED Display Module 2.42 Inch OLED LCD Display Module IIC I2C SPI 7 Pin (Blue Light)

XIITIA 2pcs 2.42' SSD1309 128x64 2.42 Inch I2C 7 OLED Display Module OLED LCD Display Module IIC SPI Pin (Blue Light)

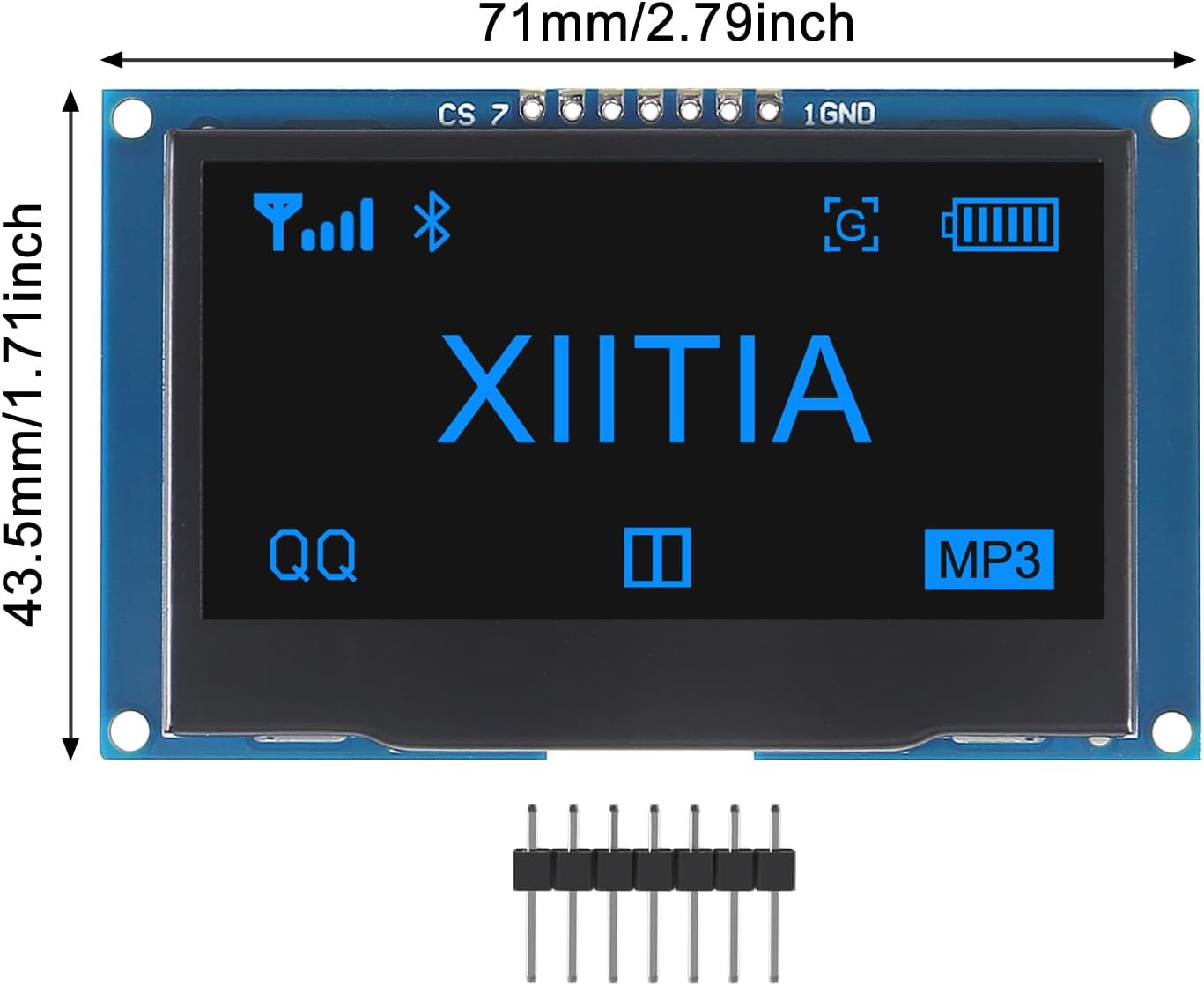

Specifications: Driver Chip: SSD1309 Support interface IIC/SPI Resolution 12864 Display Size: 2.42 inches Display Color: white/blue/yellow/green Module Size: 7143.5 (mm) Glass Size: 60.537.00 (mm) Display Area: 55.0227.49 (mm) Drive Voltage: 3.3-5V Number of Pins: 7PIN Viewing Angle >160 Working Temperature: -40~70 Storage Temperature: -40~80 SPI Interface Definition: GND: Power Ground VDD: Power Supply Positive (2.8-5.5V) SCK: Clock Line SDA: Data Line RES: Reset Line DC: Data/Command CS : Chip Select Package Included: 2 x Display Module

Brand: XIITIA

ssd1309 128x64, light electronics, light, oled, 128x64, lcd, computer components, iic i2c, lcd display, oled lcd, display, spi pin Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ Diagonal Screen Size: 2.42 inch
• ✅ Driver IC: SSD1309
• ✅ 2.42 inch OLED display module of 128x64 resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.

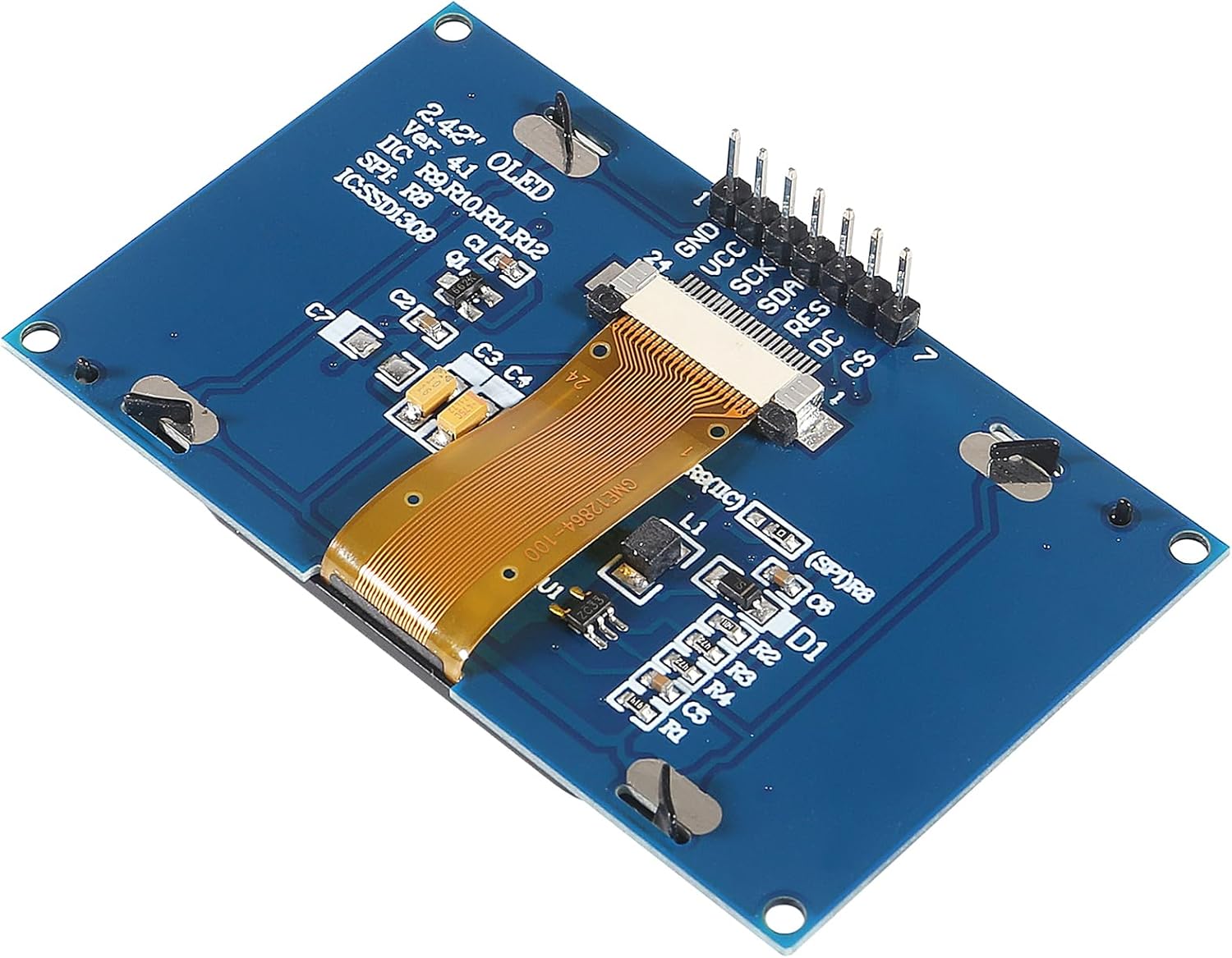

• ✅ SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5.
• ✅ For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.

Product Details

• ✅ Package Dimensions: 5.2 x 3.78 x 0.79 inches
• ✅ Item Weight: 2.89 ounces
