Wonrabai 1.5inch 128128 65K 5/ 4B/ 3B+ Pi3B/ 2W/Arduino/STM32, RGB OLED Display Module Pixels, RGB Display Colors, SPI

Name: Wonrabai 1.5inch 128128 65K 5/ 4B/ 3B+ Pi3B/ 2W/Arduino/STM32, RGB OLED Display Module Pixels, RGB Display Colors, SPI
Brand: Wonrabai
SKU: TGABL2536583
Price: 30.95 USD
Availability: InStock

$30.95 USD

~~$36.44 USD~~ $30.95 USD

Sale Sold out

Shipping calculated at checkout.

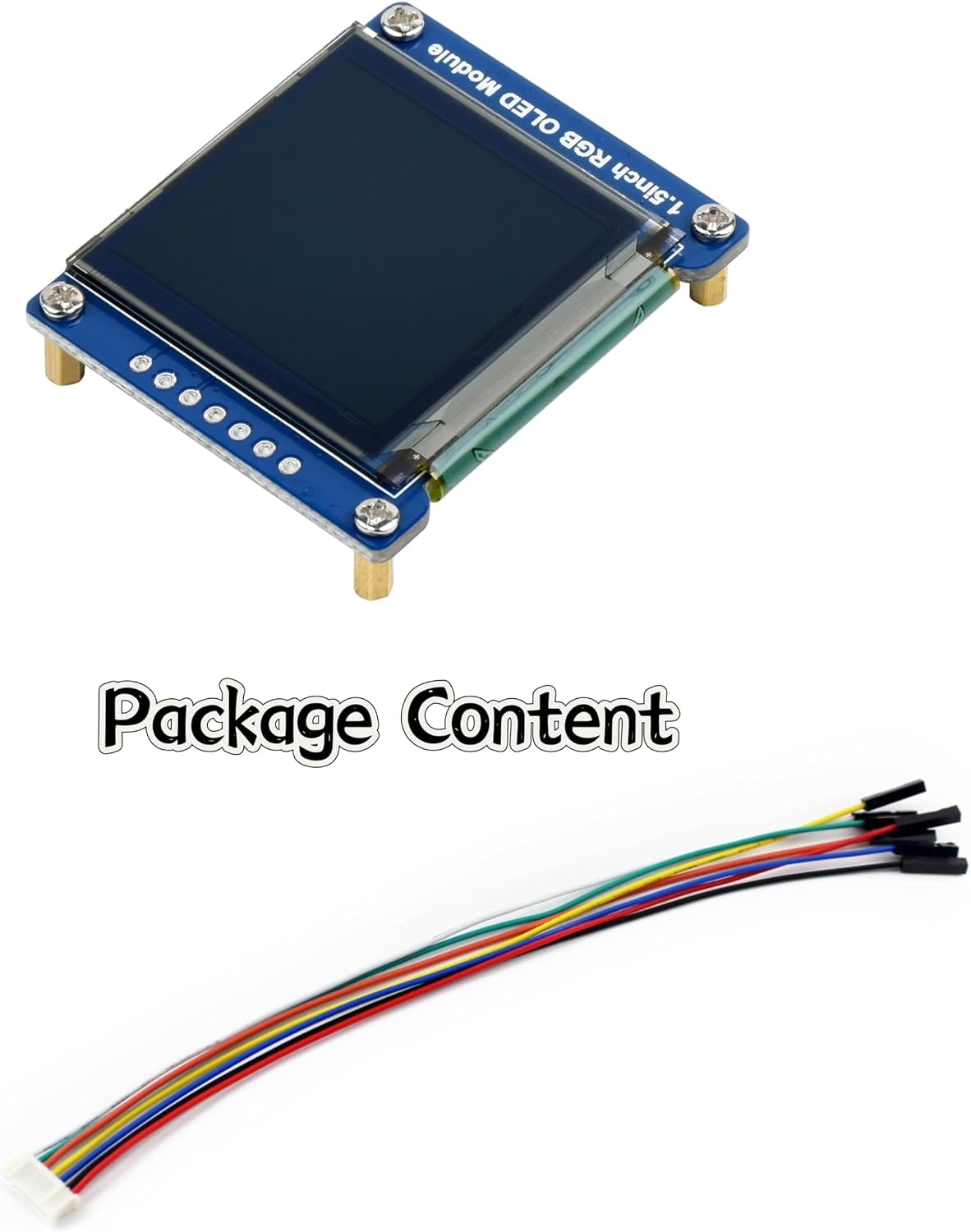

1.5inch RGB OLED Display Module 128128 Pixels, 65K RGB Display Colors, SPI Interface Compatible with Raspberry Pi 5/ Pi 4B/ Pi 3B+ Pi3B/ Pi Zero/Pi Zero 2W/Arduino/STM32, etc.

Wonrabai 1.5inch 128128 65K 5/ 4B/ 3B+ Pi3B/ 2W/Arduino/STM32, RGB OLED Display Module Pixels, RGB Display Colors, SPI

Brand: Wonrabai

pixels 65k, 5inch, computers accessories, accessories computer, display colors, etc electronics, interface compatible, computer, pi3b zero, compatible raspberry, spi, computer components Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

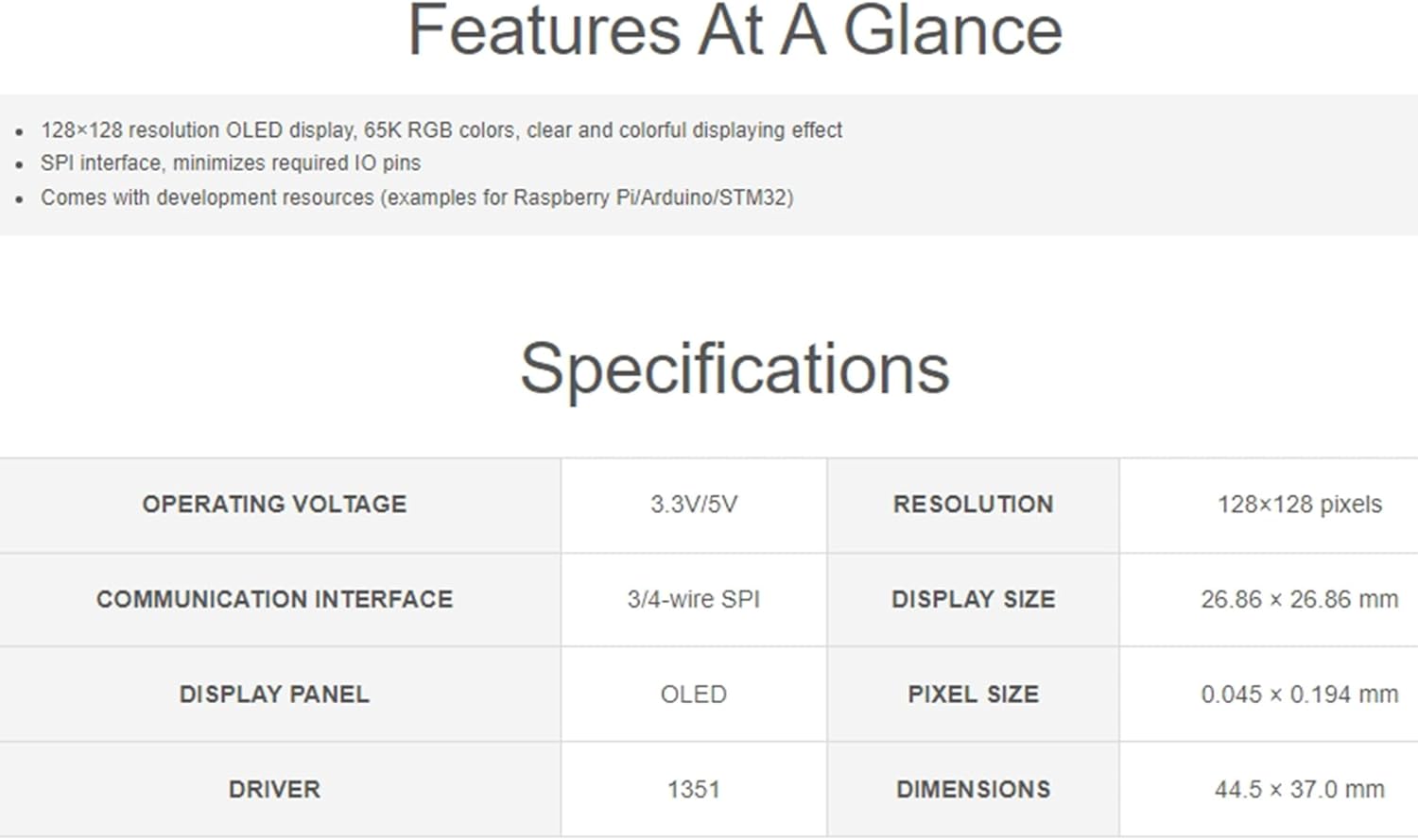

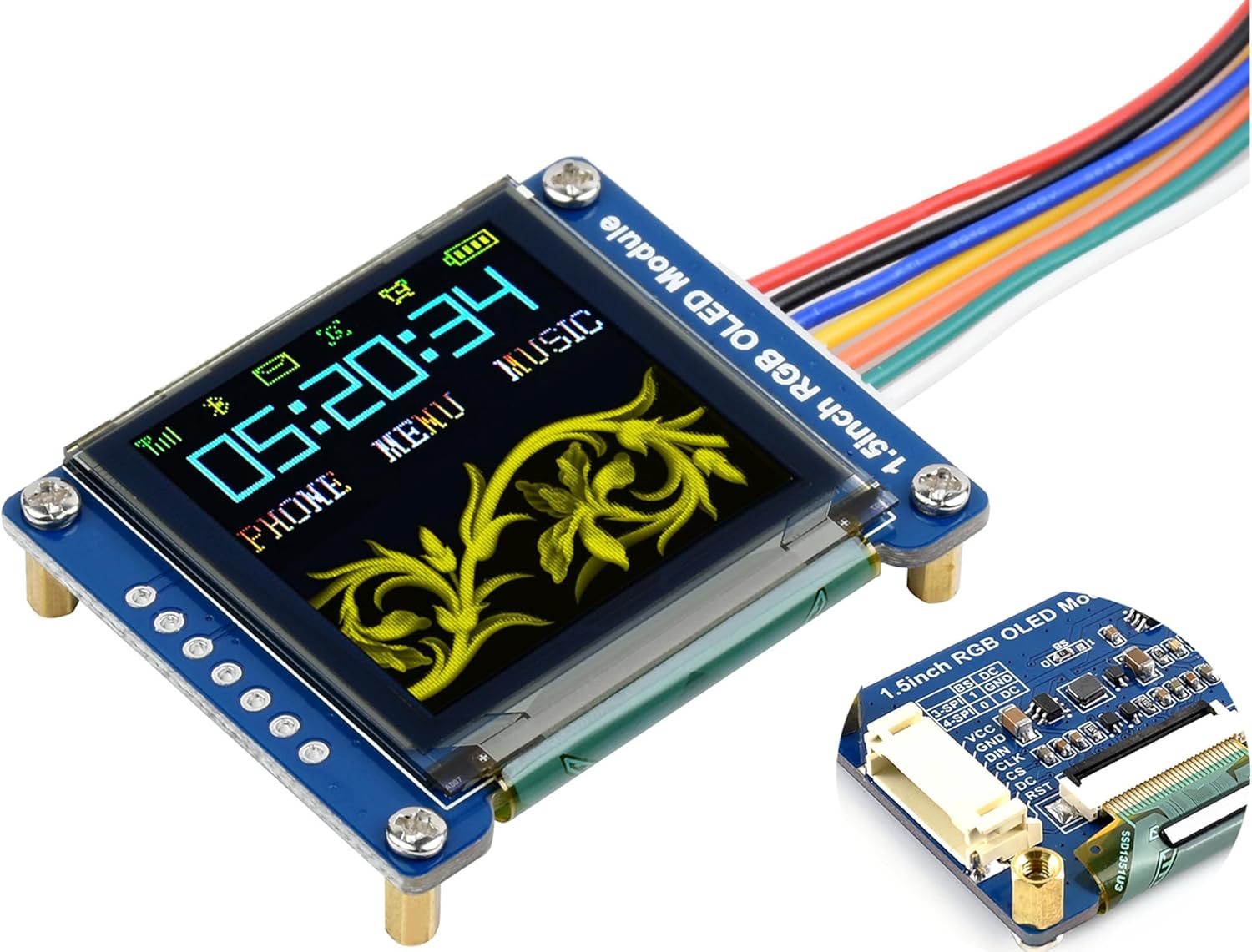

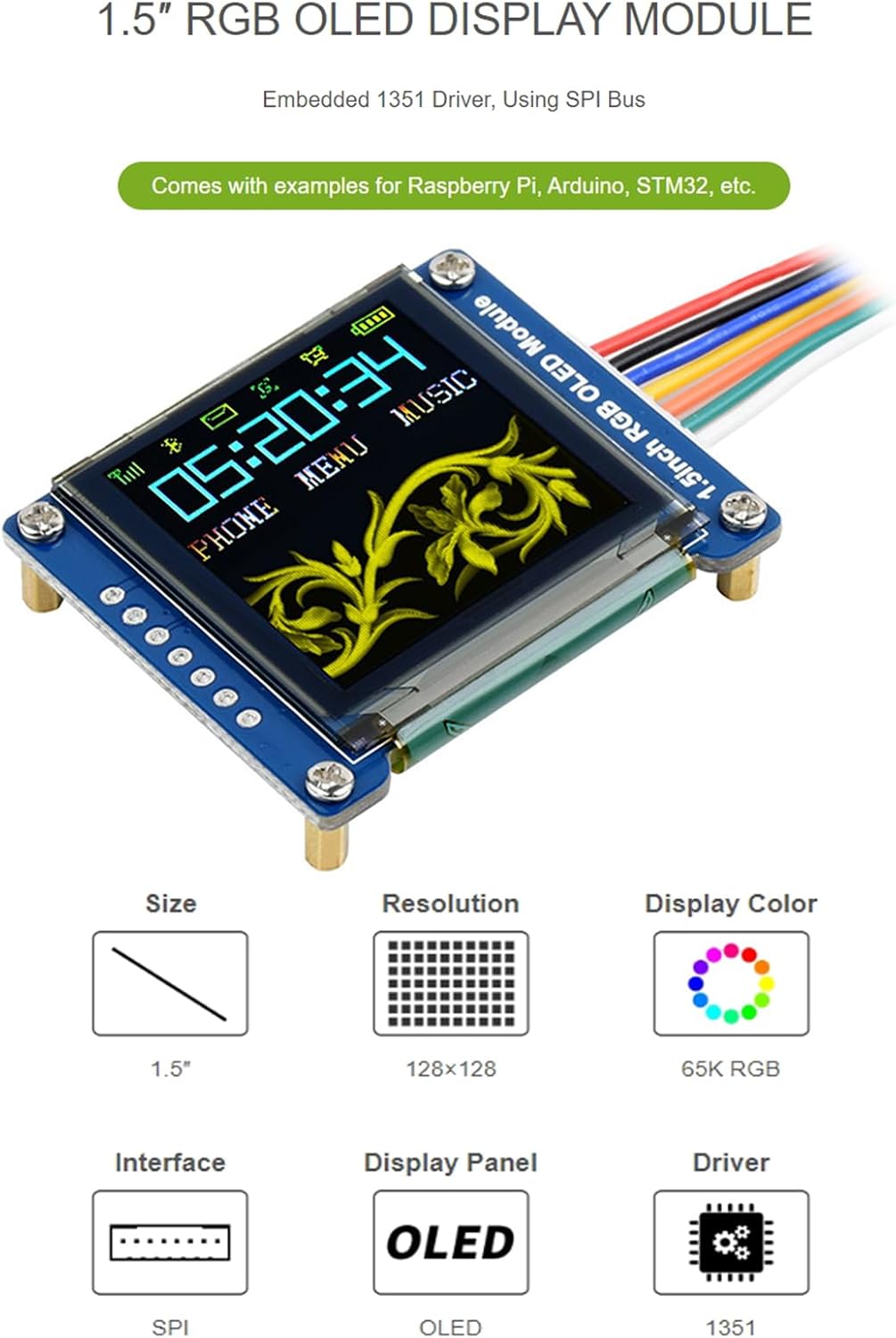

✓ Waveshare 1.5inch RGB OLED Display Module, 128128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
✓ SPI interface. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller.
✓ Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
✓ The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods.

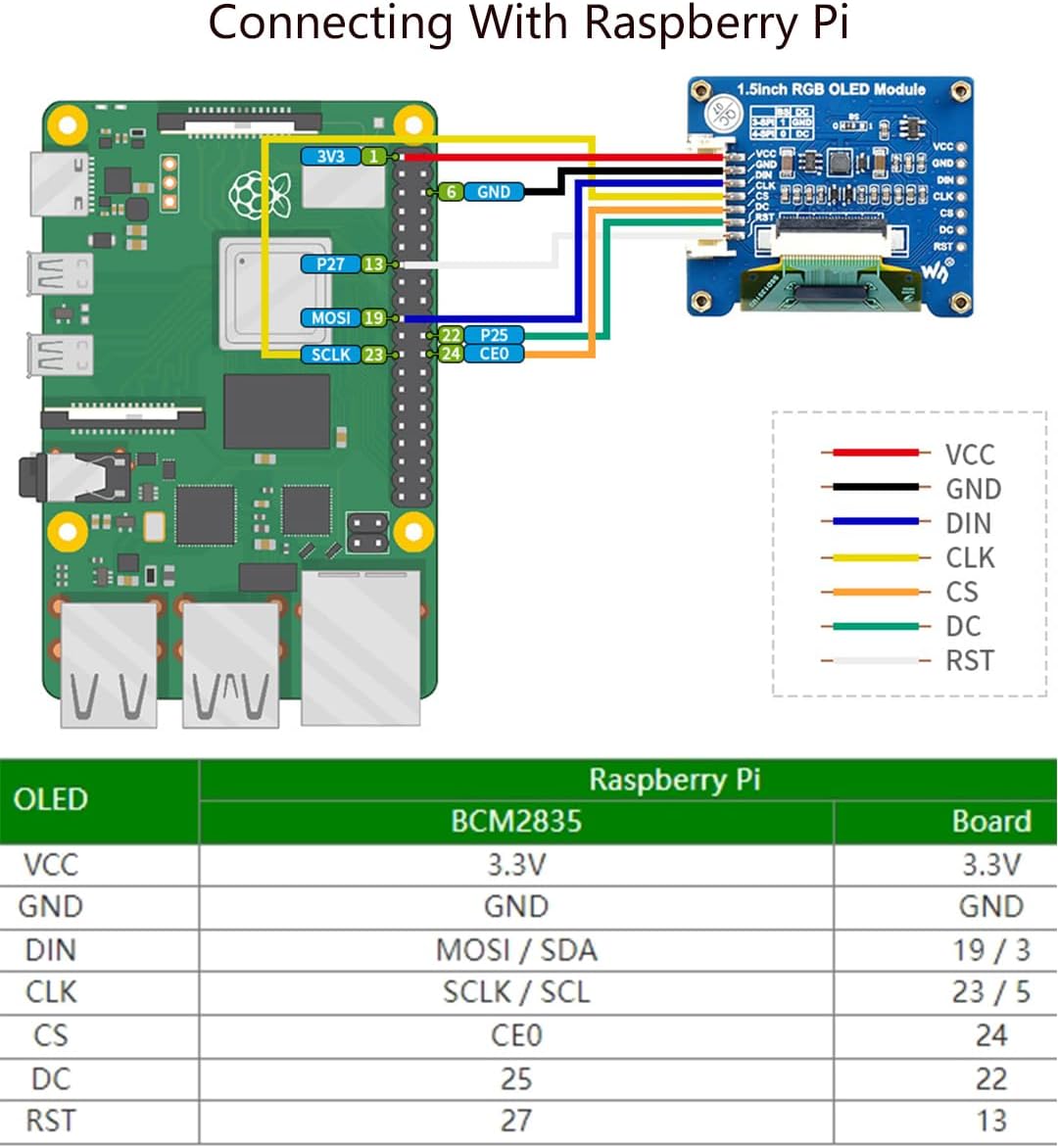

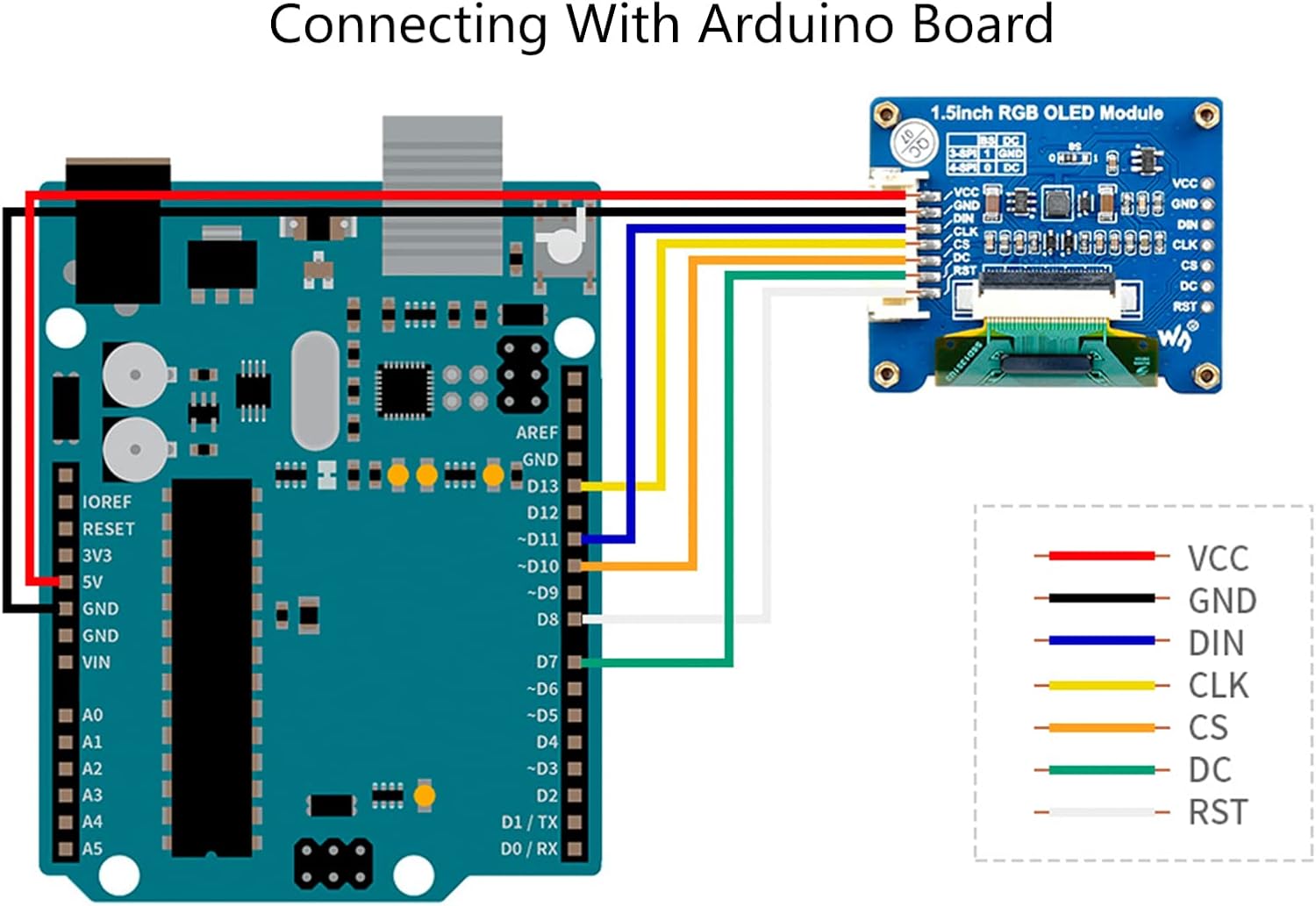

✓ Comes with Online Development Resources (examples for Raspberry Pi/Arduino/STM32), Please check: n9.cl/gi1pu
