waveshare ESP32-C6 1.47inch 172320 262K 6(802.11 5 Capacitive Touch Display Development Board with pre-soldered Header

ESP32-C6 1.47inch Capacitive Touch Display Development Board with pre-soldered Header 172320 Resolution 262K Color LCD,Supports Wi-Fi 6(802.11 b/g/n) and Bluetooth 5 (LE)

waveshare ESP32-C6 1.47inch 172320 262K 6(802.11 5 Capacitive Touch Display Development Board with pre-soldered Header

ESP32-C6 1.47inch Touch Display Development Board with pre-soldered Header, 172320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor Features ESP32-C6-Touch-LCD-1.47 uses ESP32-C6FH8 chip with 2.4GHz WiFi 6 and Bluetooth BLE 5 support, integrates 8MB Flash, Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash Onboard 1.47inch capacitive touch LCD display, 172320 resolution, 262K color Adapting multiple IO interfaces, supports full-speed USB standard Onboard TF card slot for external TF card storage of pictures or files Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios Usage Instructions ESP32-C6-Touch-LCD-1.47-M currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits. Package Content ESP32-C6-Touch-LCD-1.47 with pre-soldered header 1 Note Development Resources is provided , please contact us if you have any problem .

Brand: waveshare

pre soldered, touch display, computers, waveshare, 47inch, 802, soldered header, resolution, development, header, bluetooth, 802 bluetooth Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

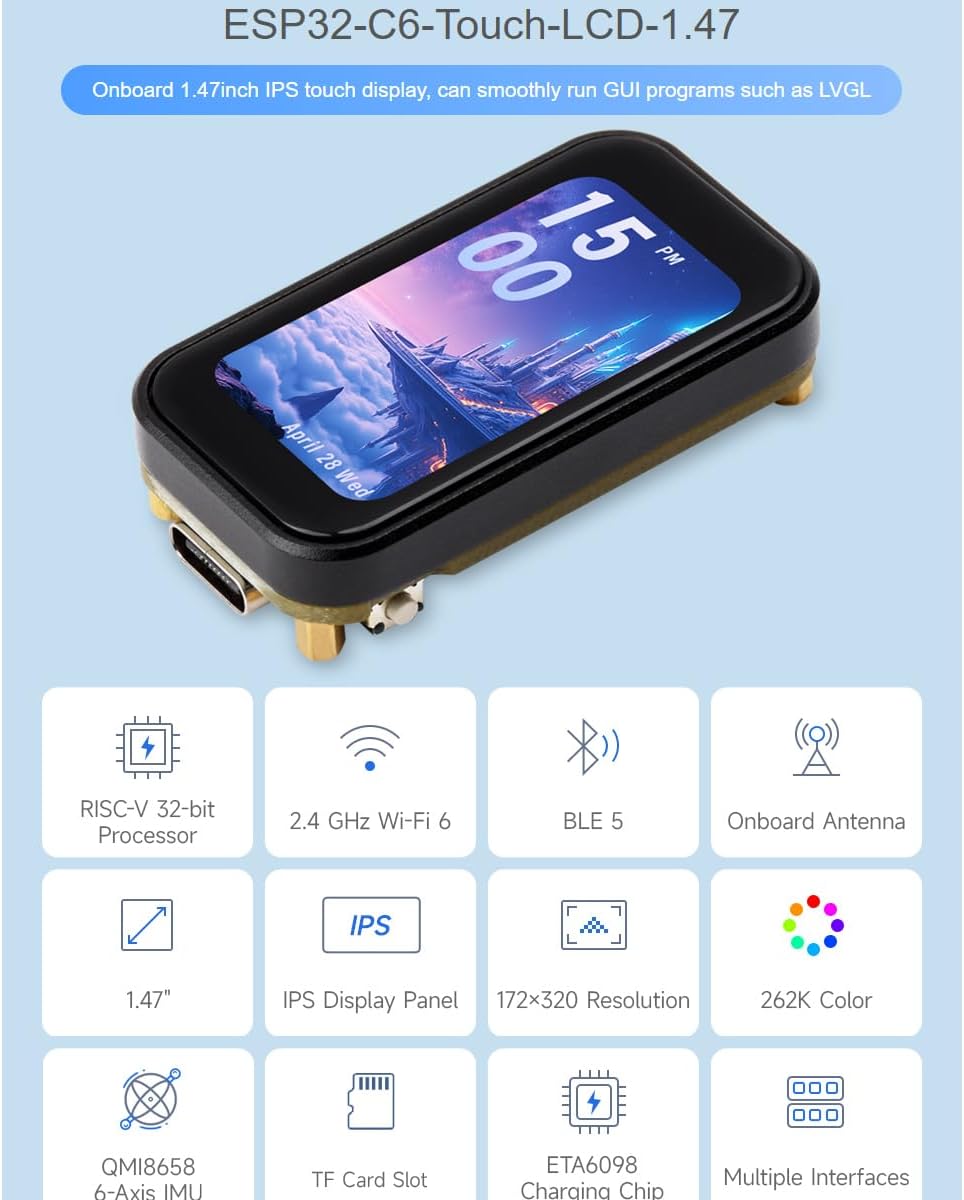

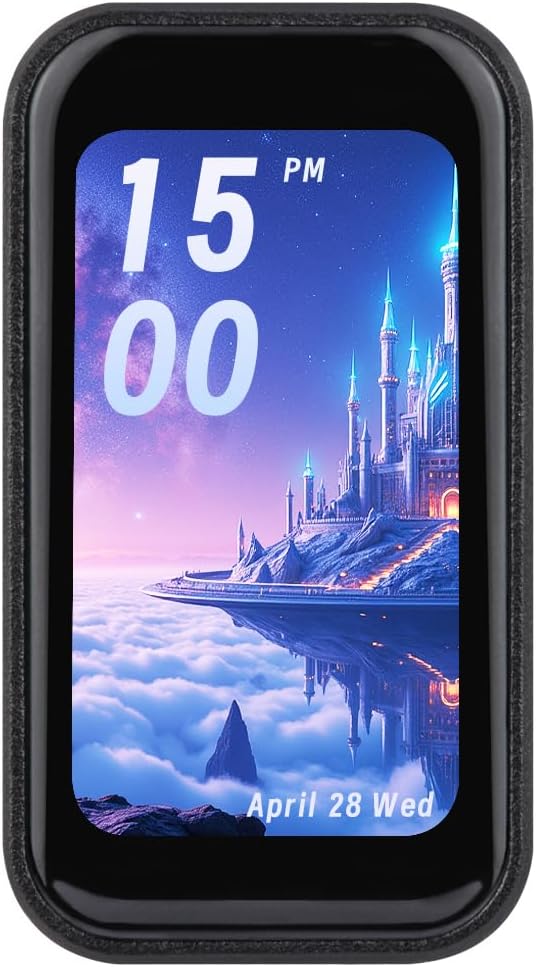

• ✅ ESP32-C6-Touch-LCD-1.47-M Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL
• ✅ ESP32-C6 Suitable For AIoT Applications.Equipped With A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor, The Main Frequency Is Up To 160 MHz, Powerful AI Computing Capability & Reliable Security Features

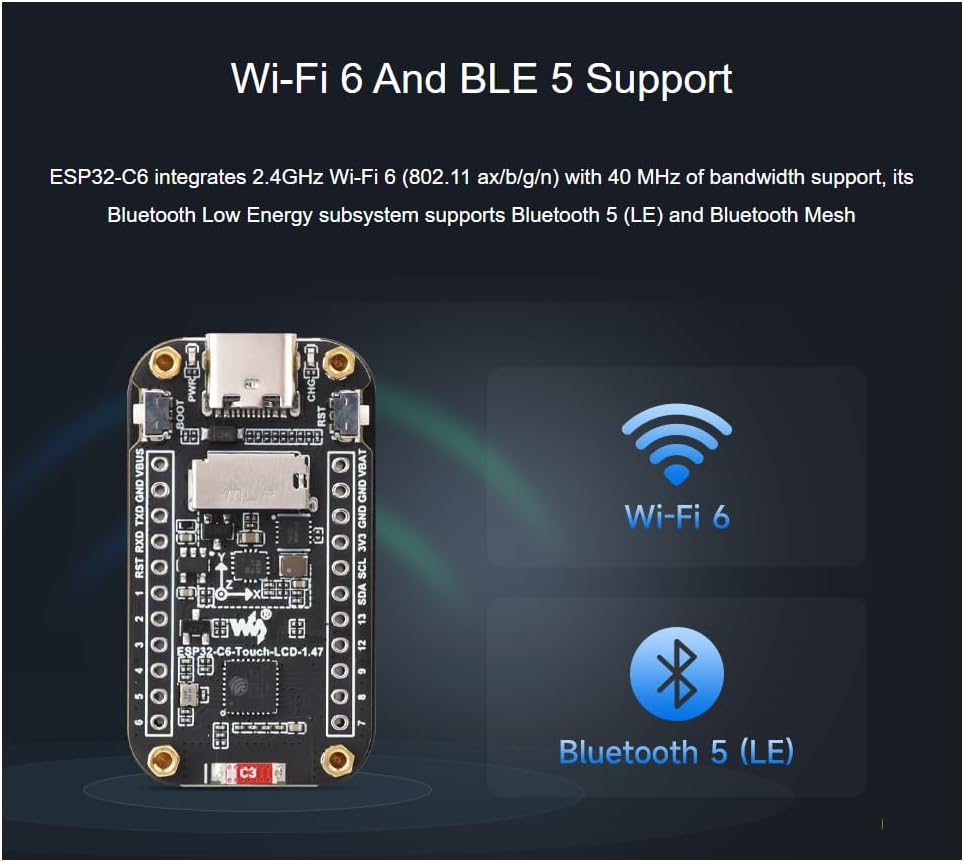

• ✅ Wi-Fi 6 And BLE 5 Support.ESP32-C6 integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

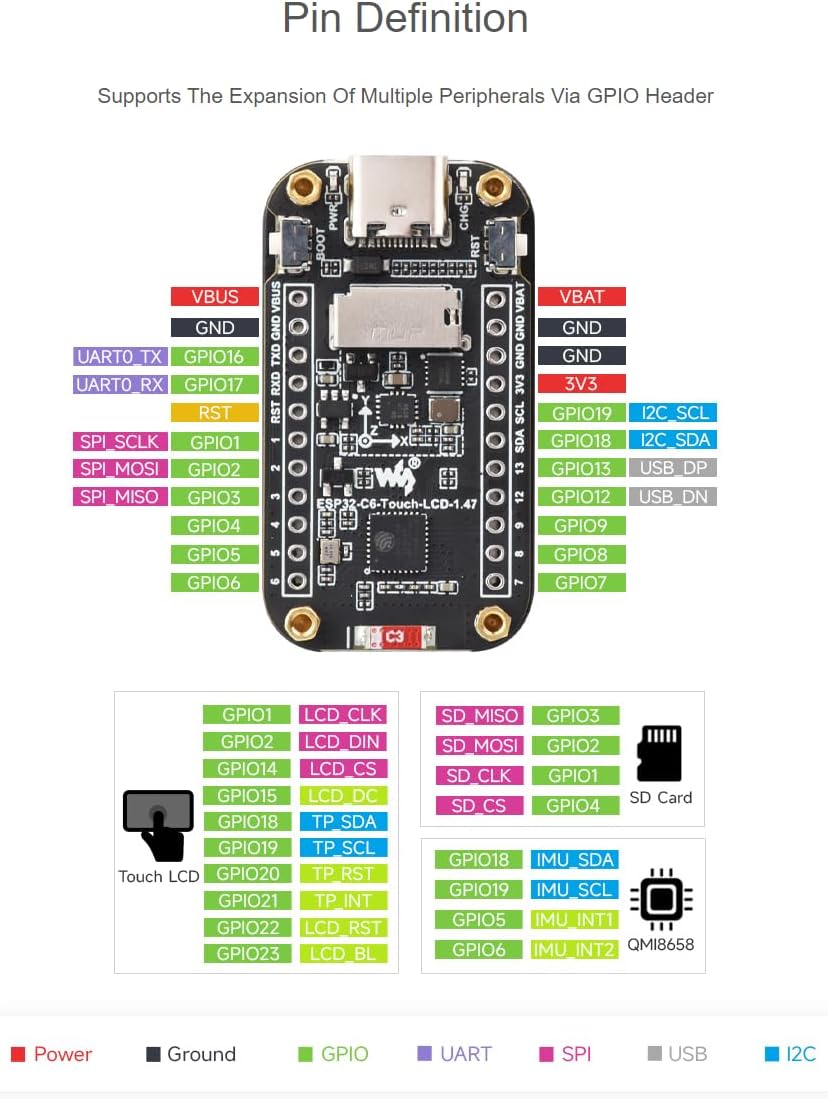

• ✅ Pin Definition.Supports The Expansion Of Multiple Peripherals Via GPIO Header
• ✅ AXS5106L Touch Driver

Product Details

• ✅ Item Weight: 0.01 Kilograms
• ✅ Model Number: ESP32-C6 1.47inch Touch Display-M
