waveshare 1.5inch 128x128 16-bit (65K STM32 RGB OLED Display Module, Pixels High Color Colors) SPI Interface Compatible

waveshare 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) SPI Interface Compatible with Arduino Raspberry Pi Jetson Nano STM32

waveshare 1.5inch 128x128 16-bit (65K STM32 RGB OLED Display Module, Pixels High Color Colors) SPI Interface Compatible

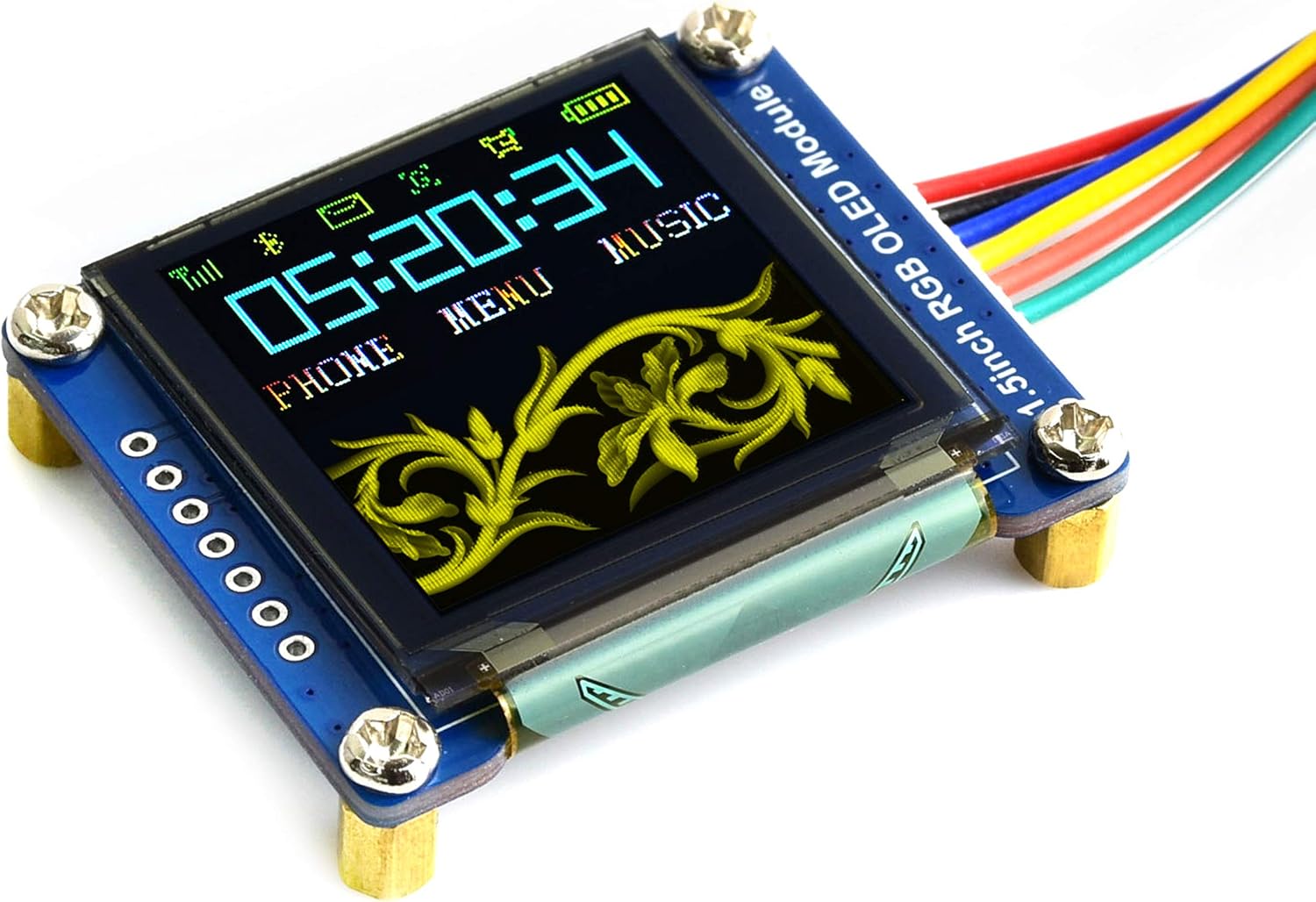

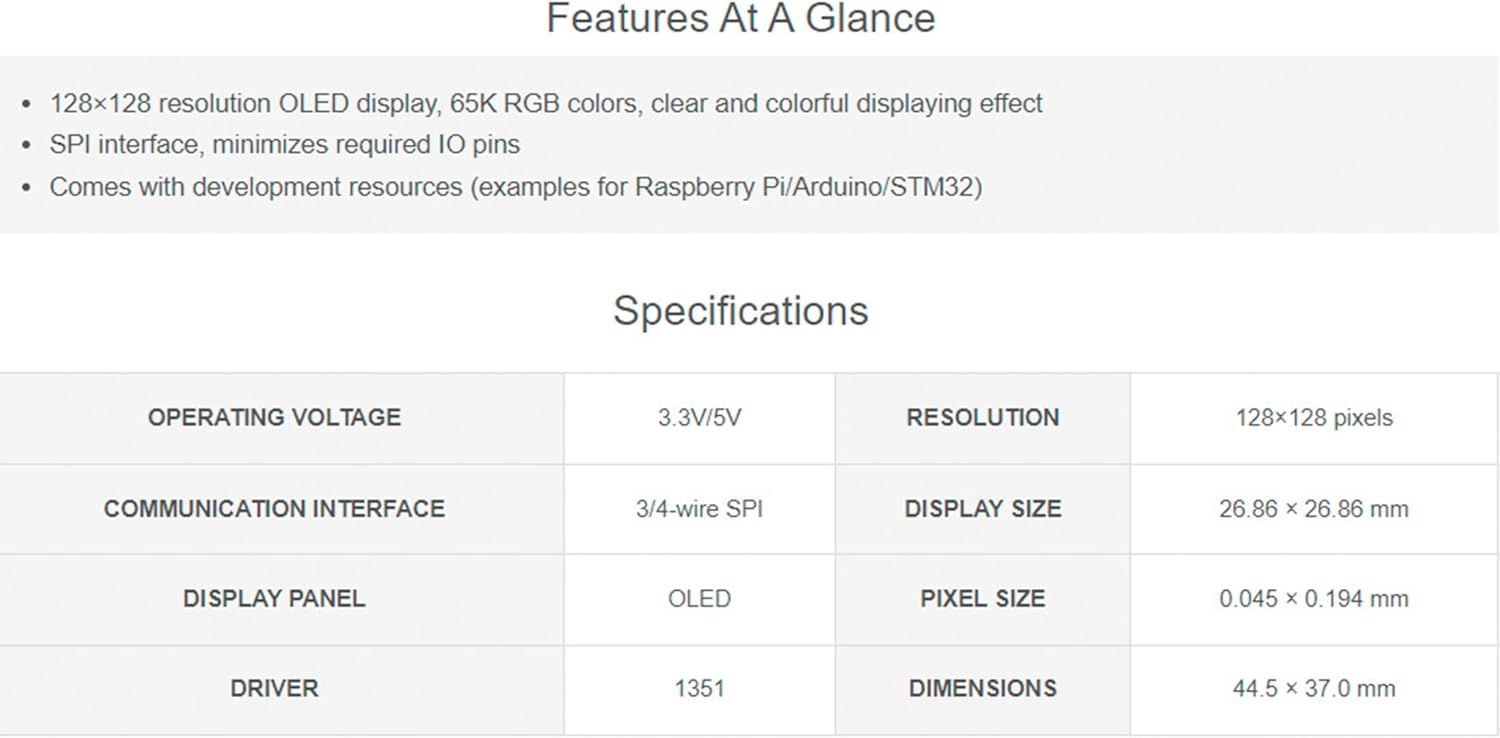

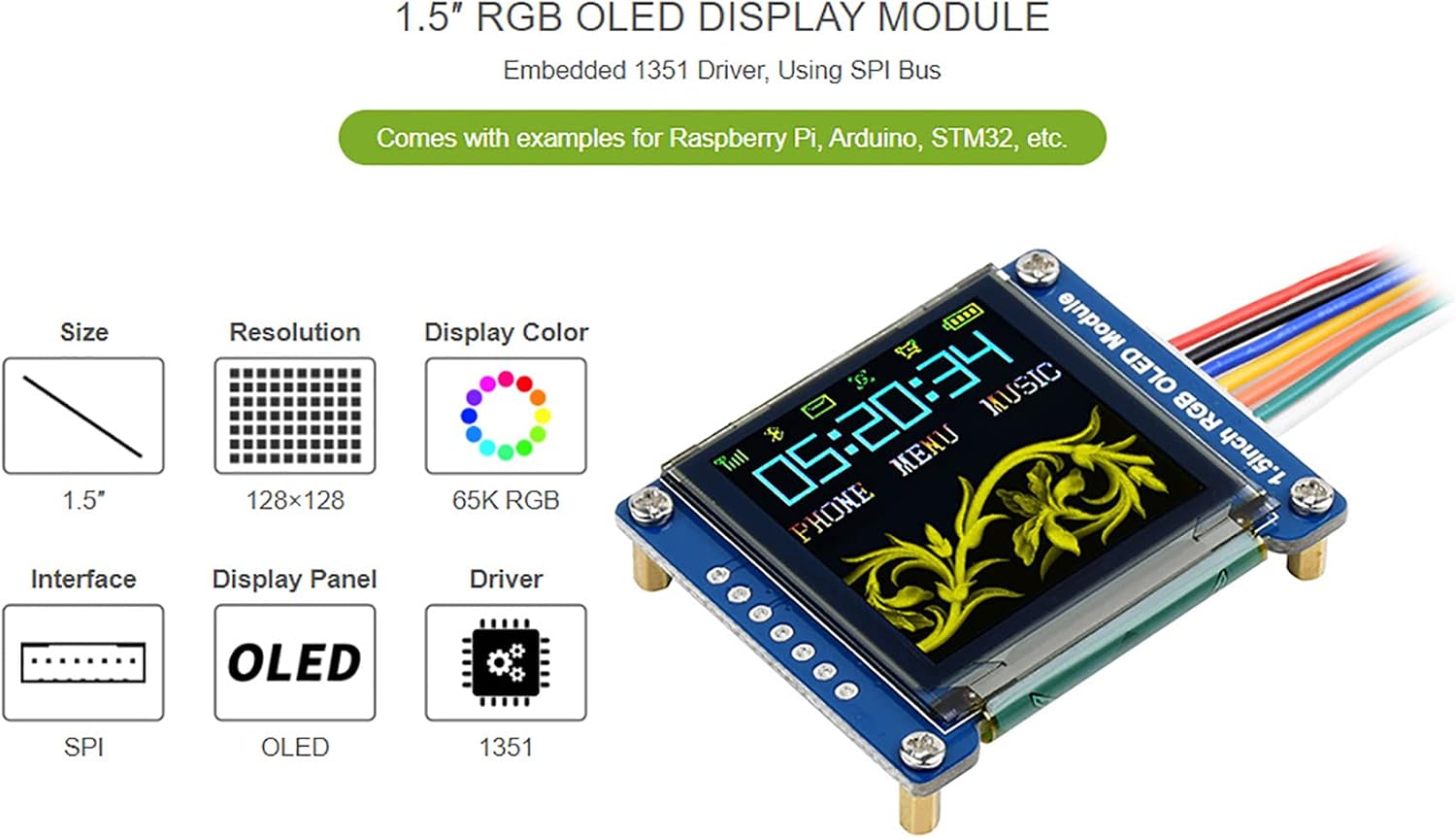

1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface Overview This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface. Features 128x128 high resolution, 65K colors, clearly displays colorful images Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) Support interface: 4-wire SPI, 3-wire SPI Controller: SSD1351 Resolution: 128(H)RGB x 128(V) Dimension: 26.855Hx 26.855Vmm Pixel size: 0.045(H) x 0.194(V) mm Display color: 65K color OLED and its controller The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller. Description VCC---3.3V/5V Power input GND---Ground DIN---Data input SCL---Clock input CS ---Chip select, active low DC---Data/command signal selection, low level indicates command, high level indicates data RST--Reset signal, active low Online Document/ User Manual: //bit.ly/3TriWqs Package Content 1.5inch RGB OLED Module x1 PH2.0 7Pin x1

Brand: waveshare

colors, bit, bit high, color 65k, 65k, compatible arduino, 5inch, oled, interface compatible, rgb oled, waveshare, high color Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ This is a general 1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color (65K colors),clearly displays colorful images, with embedded controller, communicating via SPI interface.
• ✓ Driver: SSD1351. Display color: RGB, 65K colors
• ✓ Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
• ✓ Dimension: 44.5 x 37 (mm),Operating voltage: 3.3V / 5V,Viewing angle: >160,Interface: 4-wire SPI, 3-wire SPI

Product Details

• ✓ Model Number: 1.5inch RGB OLED Module
