waveshare 1.5inch 128128 I2C STM32,SH1107 OLED Display Module Resolution OLED Screen for Raspberry Pi, Arduino, Driver

waveshare 1.5inch OLED Display Module 128128 Resolution I2C OLED Screen for Raspberry Pi, Arduino, STM32,SH1107 Driver Chip,Black/White Display Color

waveshare 1.5inch 128128 I2C STM32,SH1107 OLED Display Module Resolution OLED Screen for Raspberry Pi, Arduino, Driver

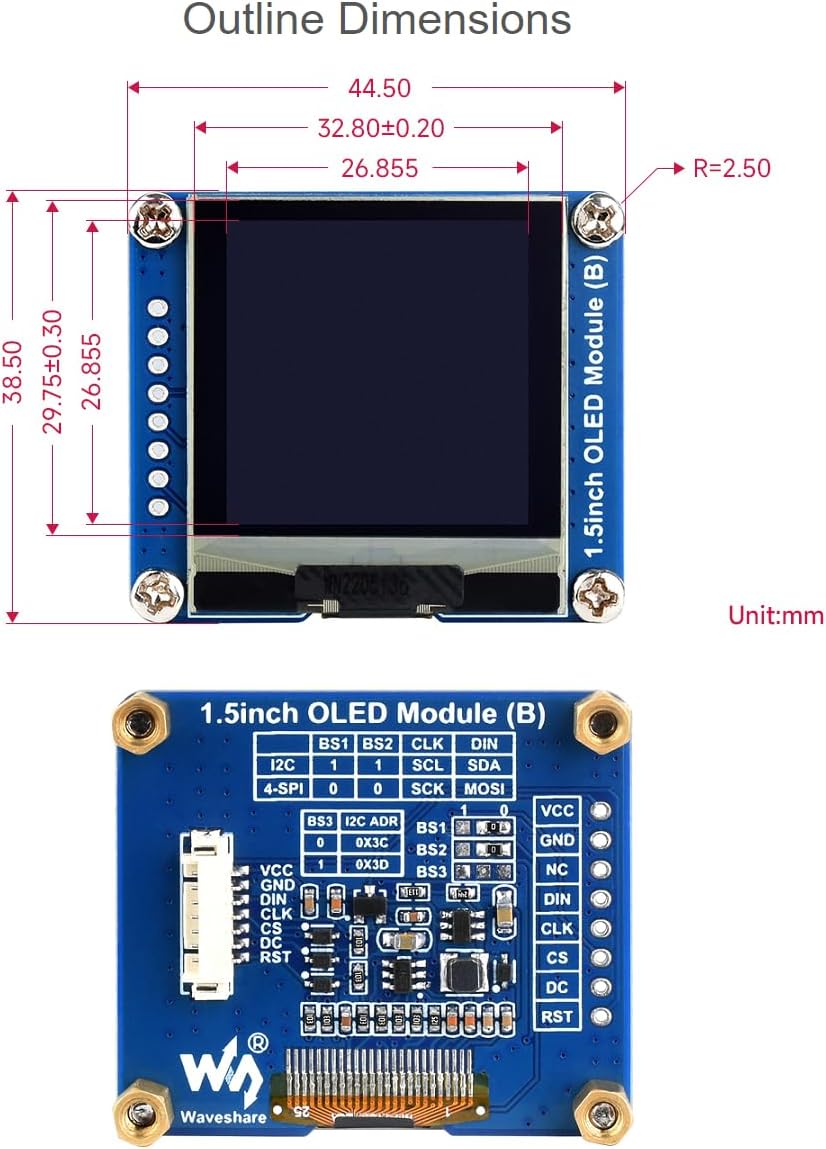

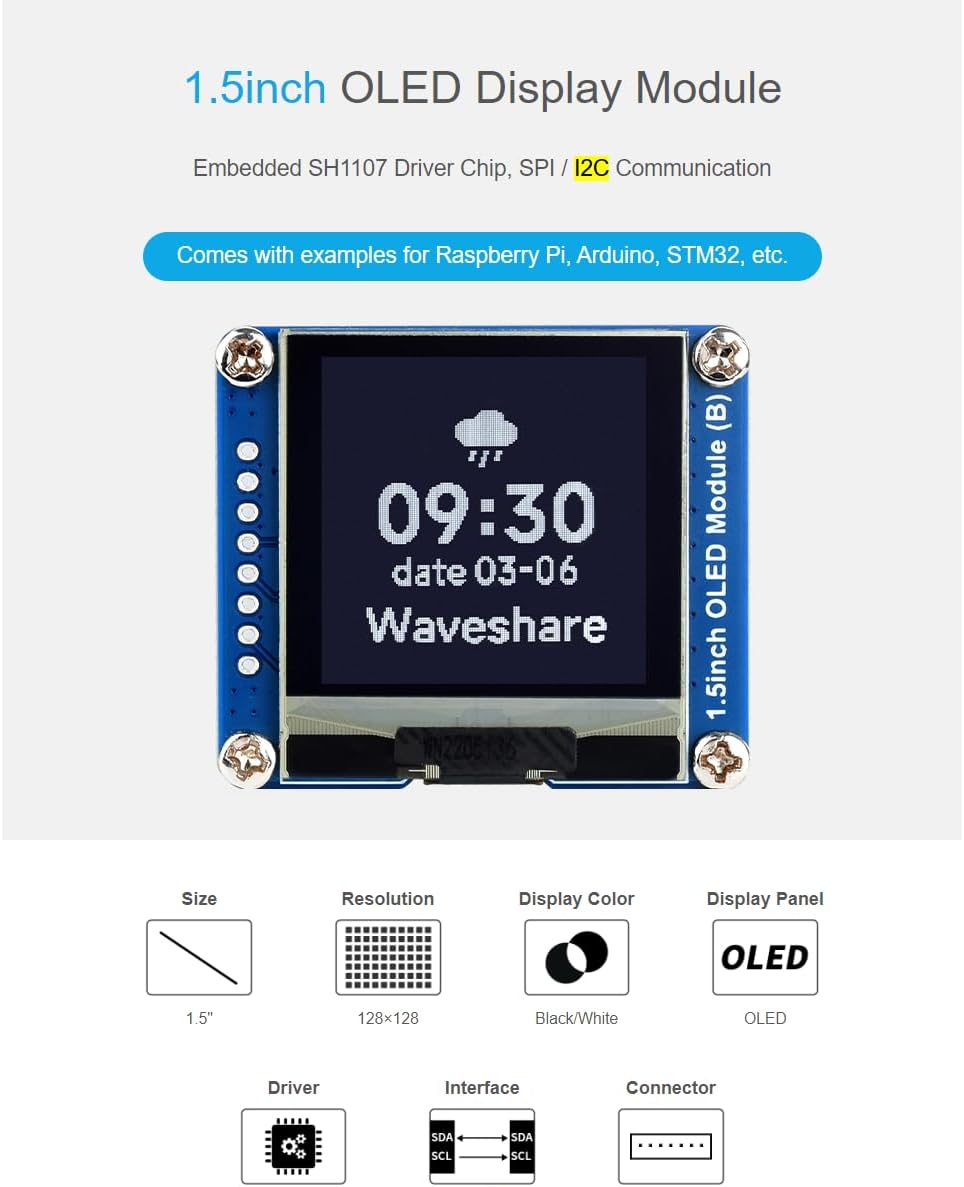

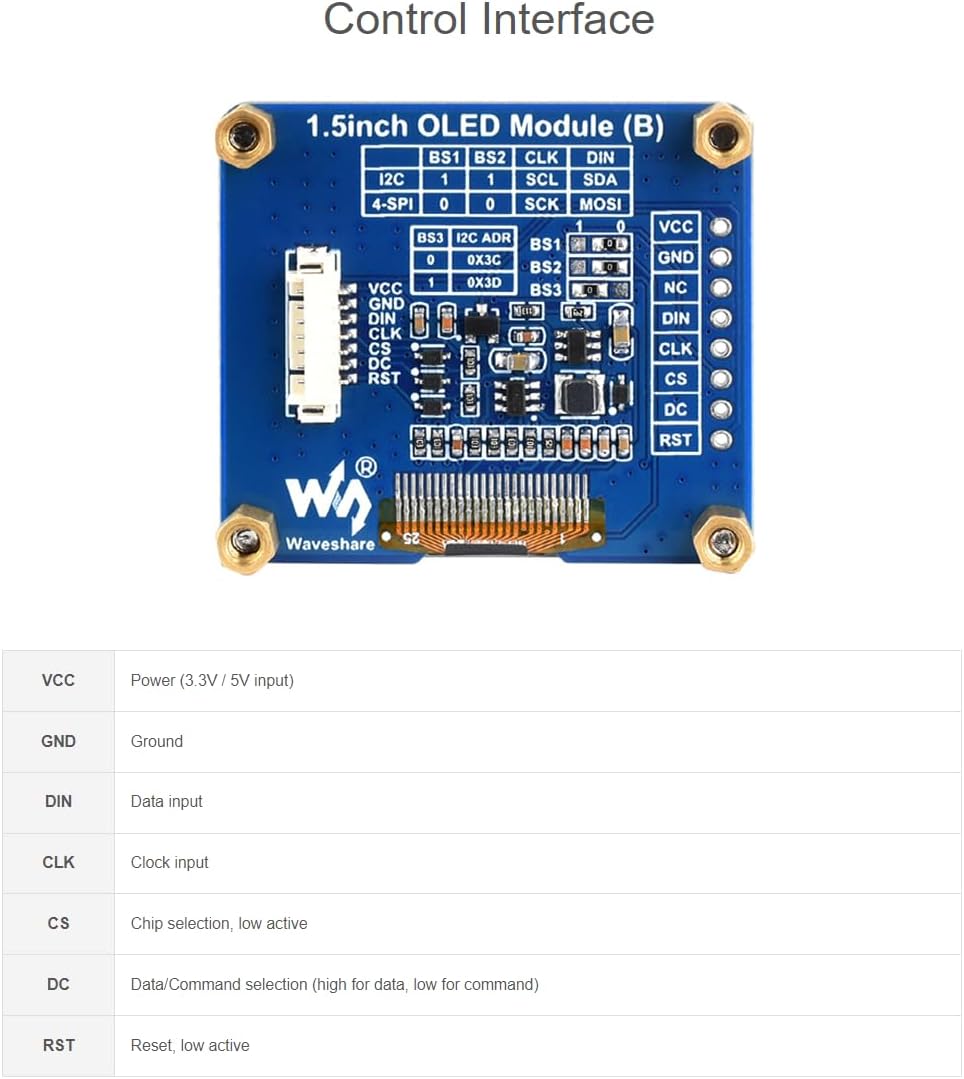

1.5inch OLED Display Module, 128128 Resolution, SPI / I2C Communication, Black / White Display Color 1.1.5inch OLED Display Module Embedded SH1107 Driver Chip, SPI / I2C Communication Comes with examples for Raspberry Pi, Arduino, STM32, etc. Features At A Glance Ultra-narrow bezel, conpact size, with onboard voltage translator Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate Comes with online development resources (examples for Raspberry Pi/Arduino/STM32) Specifications OPERATING VOLTAGE---3.3V / 5V RESOLUTION---128 128 pixels COMMUNICATION INTERFACE---4-wire SPI / I2C DISPLAY SIZE---26.855 26.855mm DISPLAY PANEL---OLED PIXEL SIZE---0.185 0.185mm DRIVER---SH1107 MODULE SIZE---38.50 44.50mm Control Interface VCC---Power (3.3V / 5V input) GND---Ground DIN---Data input CLK---Clock input CS---Chip selection, low active DC---Data/Command selection (high for data, low for command) RST---Reset, low active Package Content 1.5inch OLED Module (B) x1 GH1.25 7PIN cable x1

Brand: waveshare

resolution, screen, stm32 sh1107, 128128 resolution, 5inch, driver chip, oled, waveshare, computer components, chip, display, oled display Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ 1.5inch OLED Display Module for Raspberry Pi, Arduino, STM32, etc.
• ✅ 128128 Resolution OLED Display,Black / White Display Color
• ✅ Ultra-narrow bezel, conpact size, with onboard voltage translator
• ✅ Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• ✅ Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Product Details

• ✅ Item Weight: 0.02 Kilograms
• ✅ Model Number: 1.5inch OLED Display(B)
