UMLIFE 0.96" 7 128x64 6PCS 0.96 Inch SSD1306 12864 DC3-5V 51 STM32 Pin SPI OLED Display Module, LCD Display Module

UMLIFE 0.96' 7 Pin SPI 128x64 OLED Display Module, 6PCS 0.96 Inch SSD1306 LCD Display Module 12864 Characters DC3-5V for 51 STM32 for Arduino

UMLIFE 0.96' 7 128x64 6PCS 0.96 Inch SSD1306 12864 DC3-5V 51 STM32 Pin SPI OLED Display Module, LCD Display Module

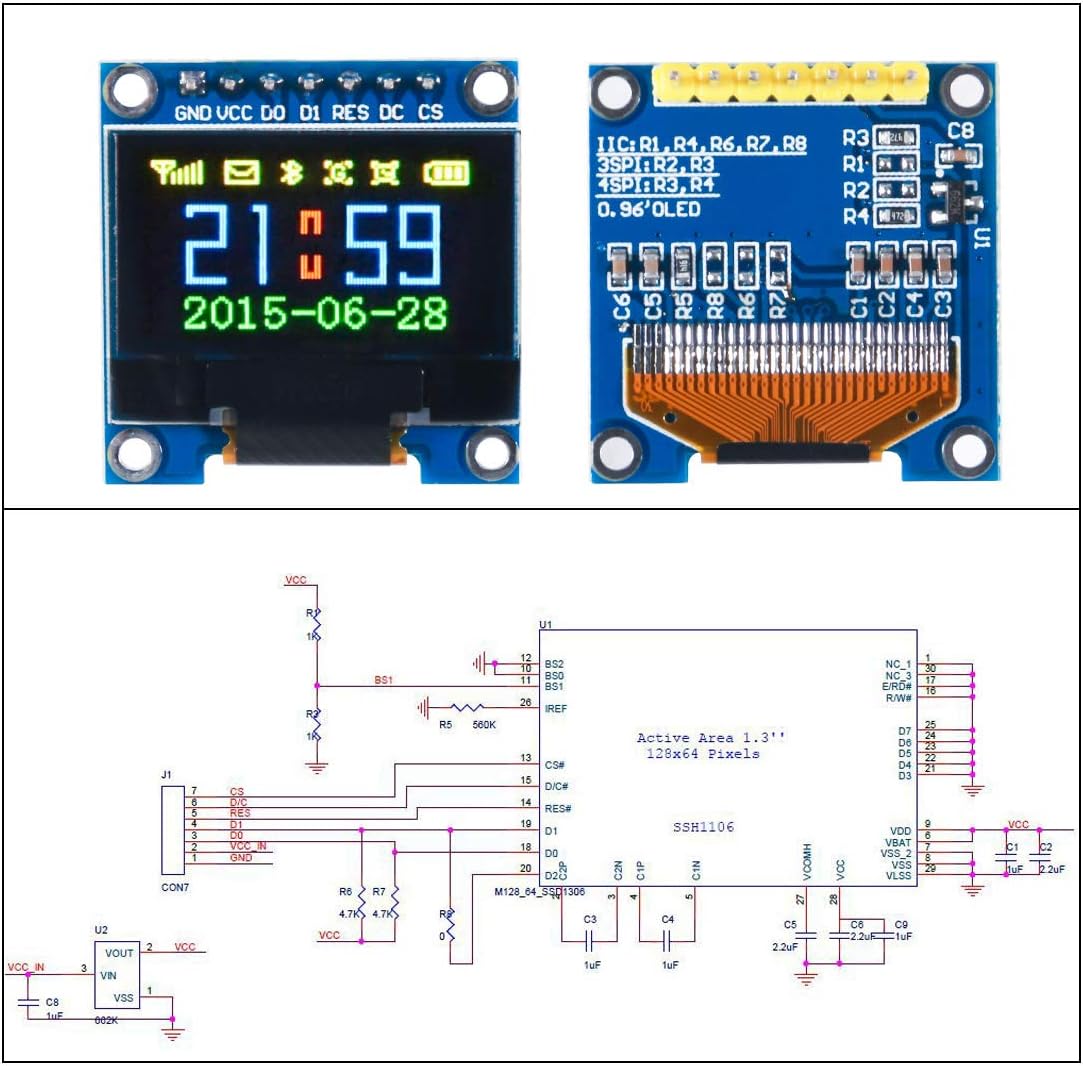

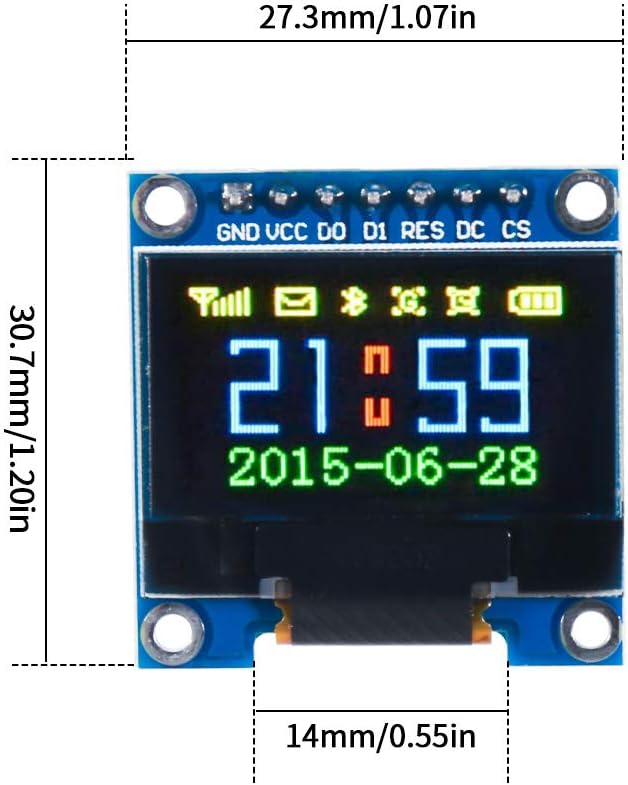

Feature: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Drive Duty: 1/64 Duty Pixels: 128x64 Panel Size: Approx. 26.70mm x 19.26mm x 1.85mm Active Area: Approx. 21.74mm x 11.2mm Pixel Size: Approx. 0.15mm x 0.15mm Needn't backlight, the display unit can self-luminous High resolution: 128 * 64 Viewing angle:> 160 Ultra-low power consumption: full screen lit 0.08W Voltage: 3V ~ 5V DC Working Temperature: -30 ~ 70 Module Size: Approx. 27.0MM * 27.0MM * 4.1MM Driver IC: SSD1306 Note: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01 Pin Definition: 1)GND:power ground 2)VCC:power positive (2.8-5.5V) 3)D0:clock wire 4)D1:data wire 5)RES:reset wire 6)DC:data/command 7)CS:chip select

Brand: UMLIFE

inch ssd1306, computers accessories, module 12864, accessories computer, spi 128x64, 128x64, pin spi, arduino electronics, umlife, characters dc3, computer, ssd1306 lcd Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ 0.96' 128X64 OLED LCD Display Module with I2C IIC SPI Serial.
• ✓ Supports many control chip, compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
• ✓ Font Color: Blue/White/ Blue & Yellow.
• ✓ Ultra-low power consumption: full screen lit 0.08W; Super high brightness and contrast are adjustable; With embedded driver/controller, Draw speed is responsive.

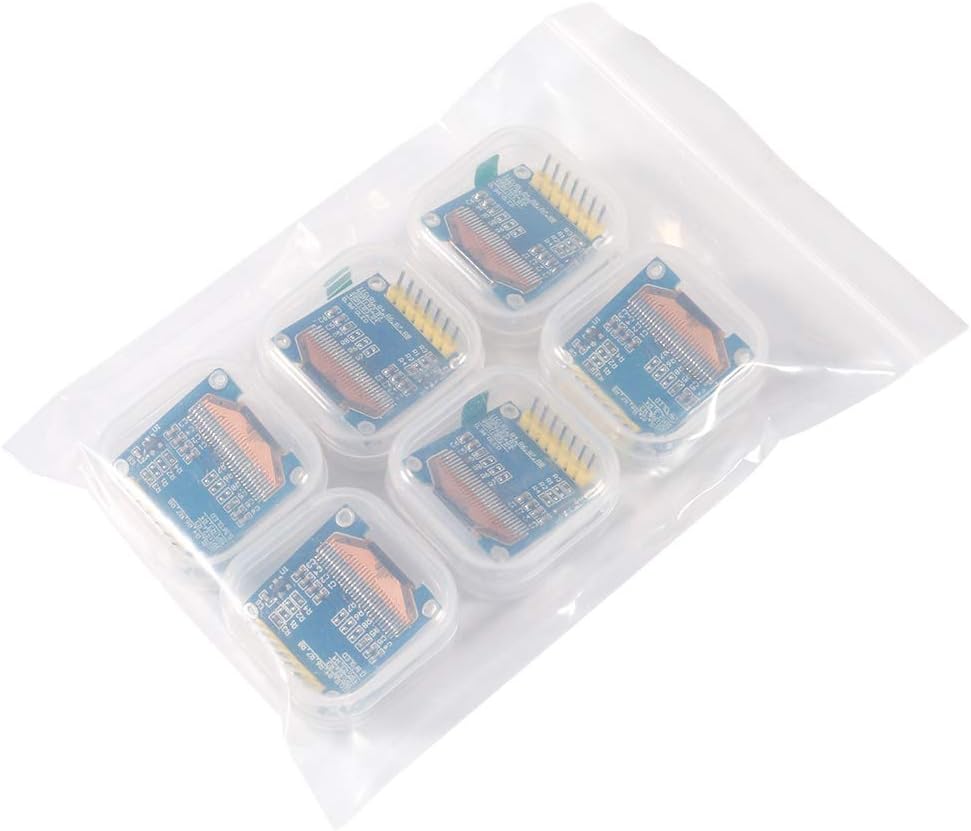

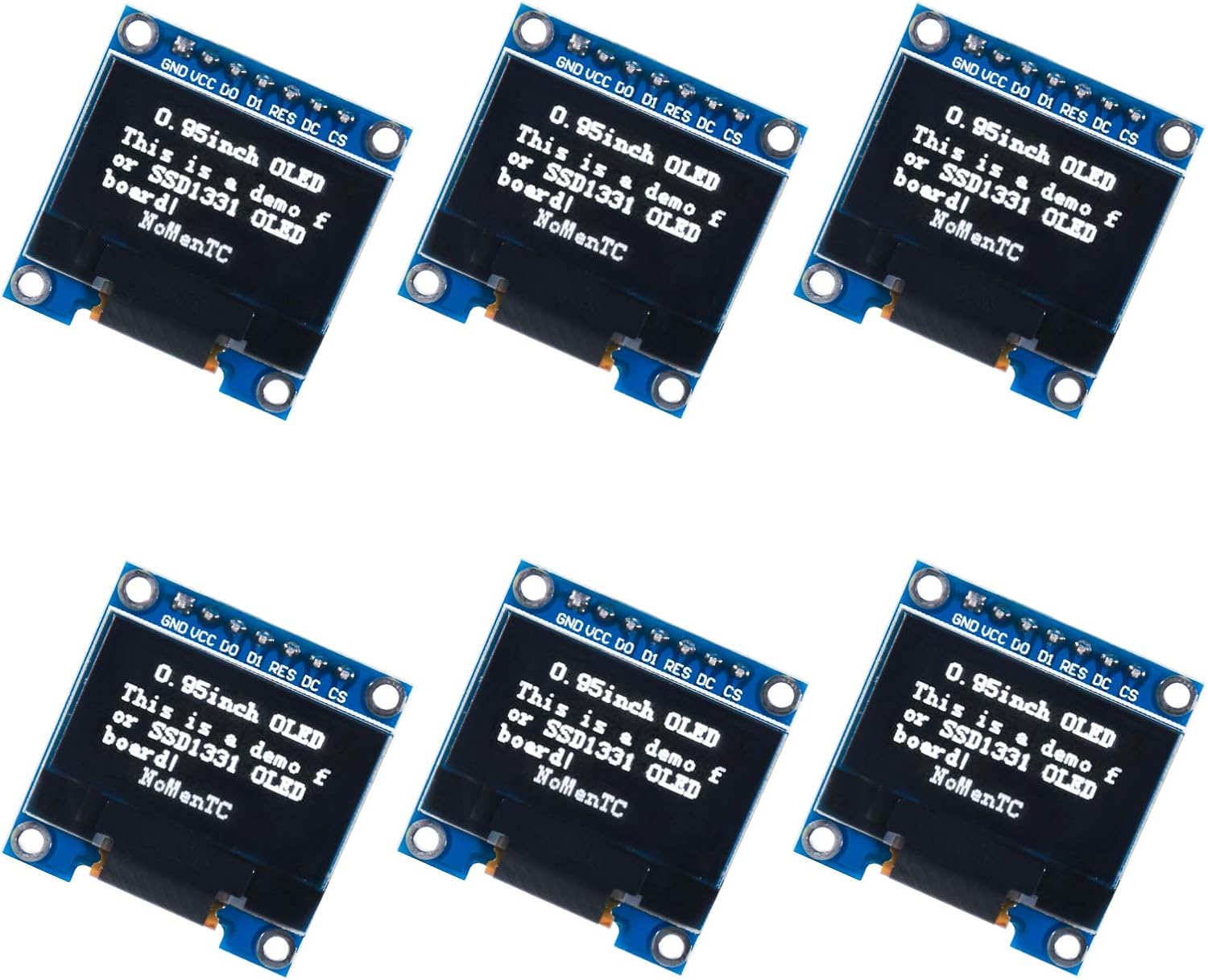

• ✓ Package included: 6* 0.96' SPI Serial 128X64 OLED LCD Display Module.

Product Details

• ✓ Package Dimensions: 4.29 x 3.03 x 0.83 inches
• ✓ Item Weight: 1.76 ounces
