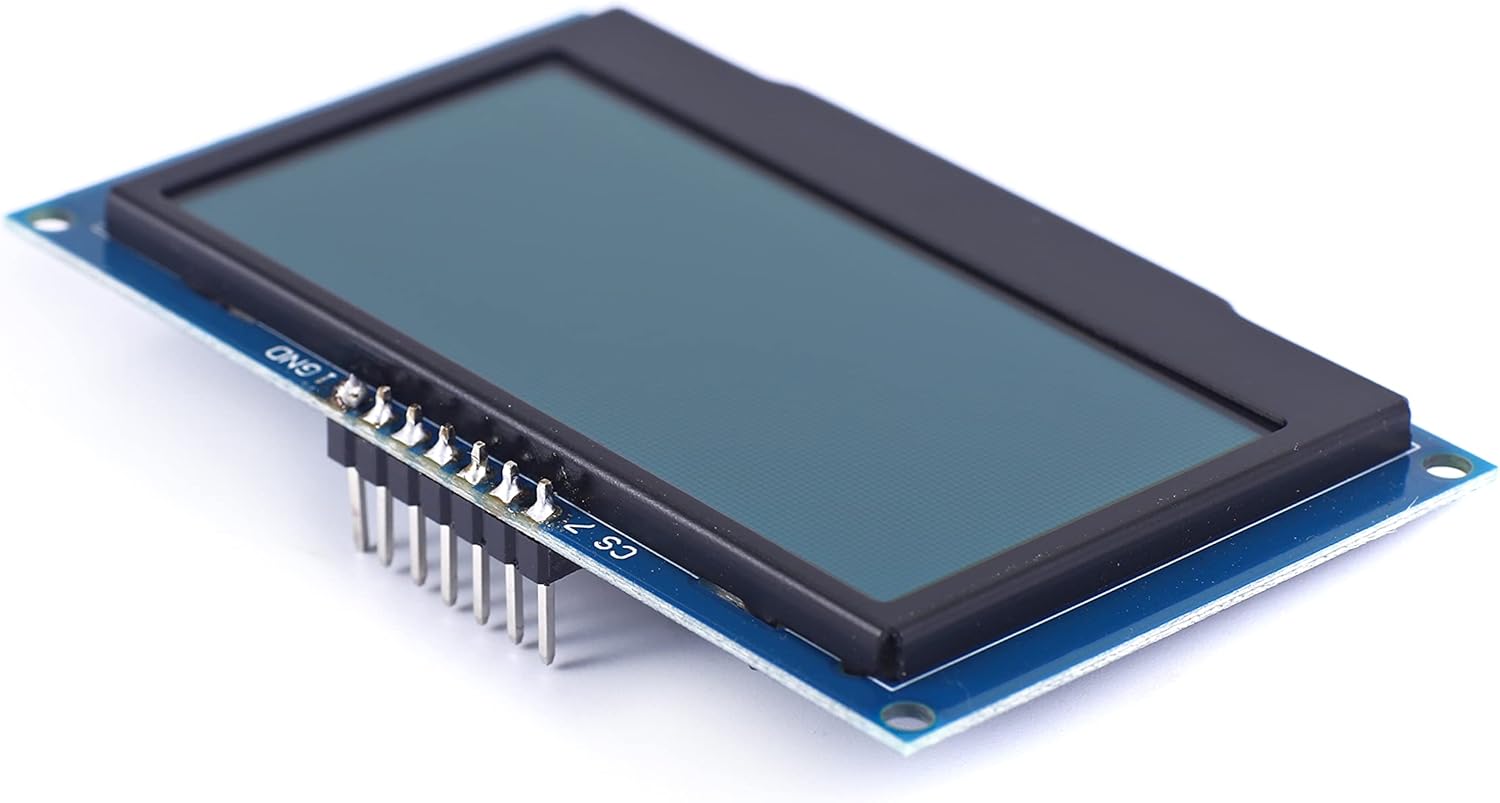

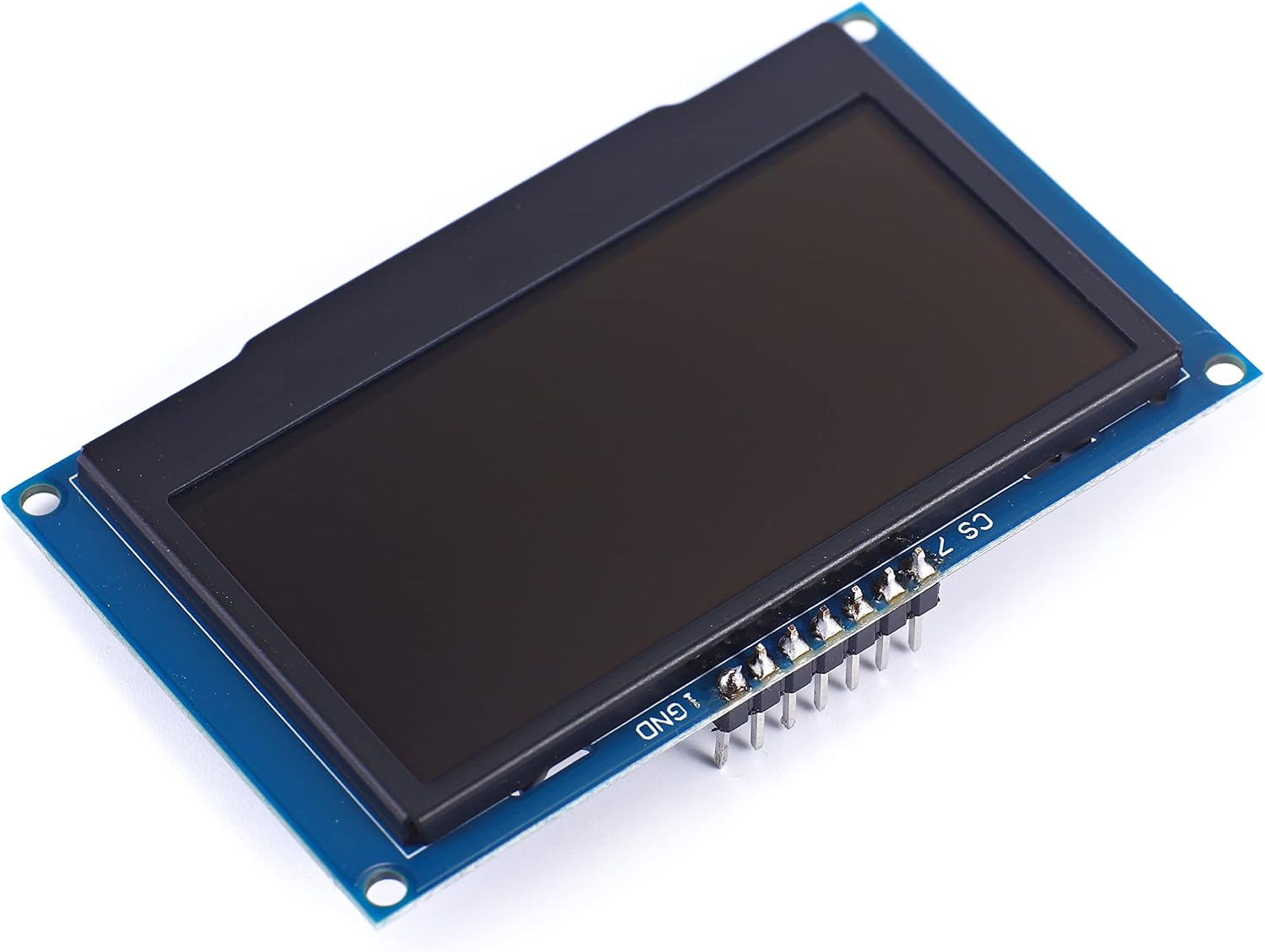

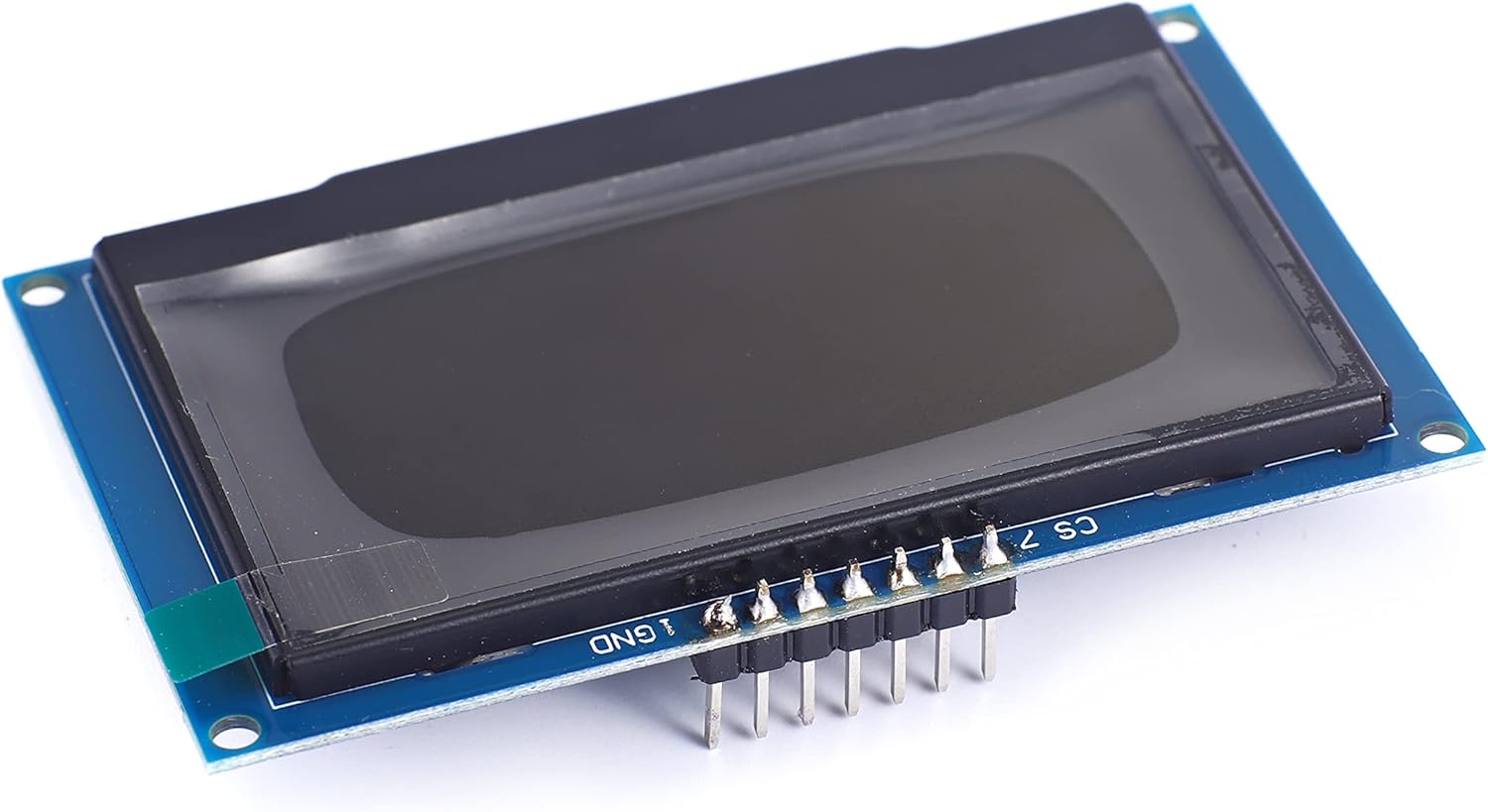

Teyleten Robot 2.42 inch 128x64 SSD1309 7 I2C R3 OLED LCD Display Module Pin SPI/IIC Serial Interface for Arduino UNO

Teyleten Robot 2.42 inch 128x64 OLED LCD Display Module SSD1309 7 Pin SPI/IIC I2C Serial Interface for Arduino UNO R3 - White Light

Teyleten Robot 2.42 inch 128x64 SSD1309 7 I2C R3 OLED LCD Display Module Pin SPI/IIC Serial Interface for Arduino UNO

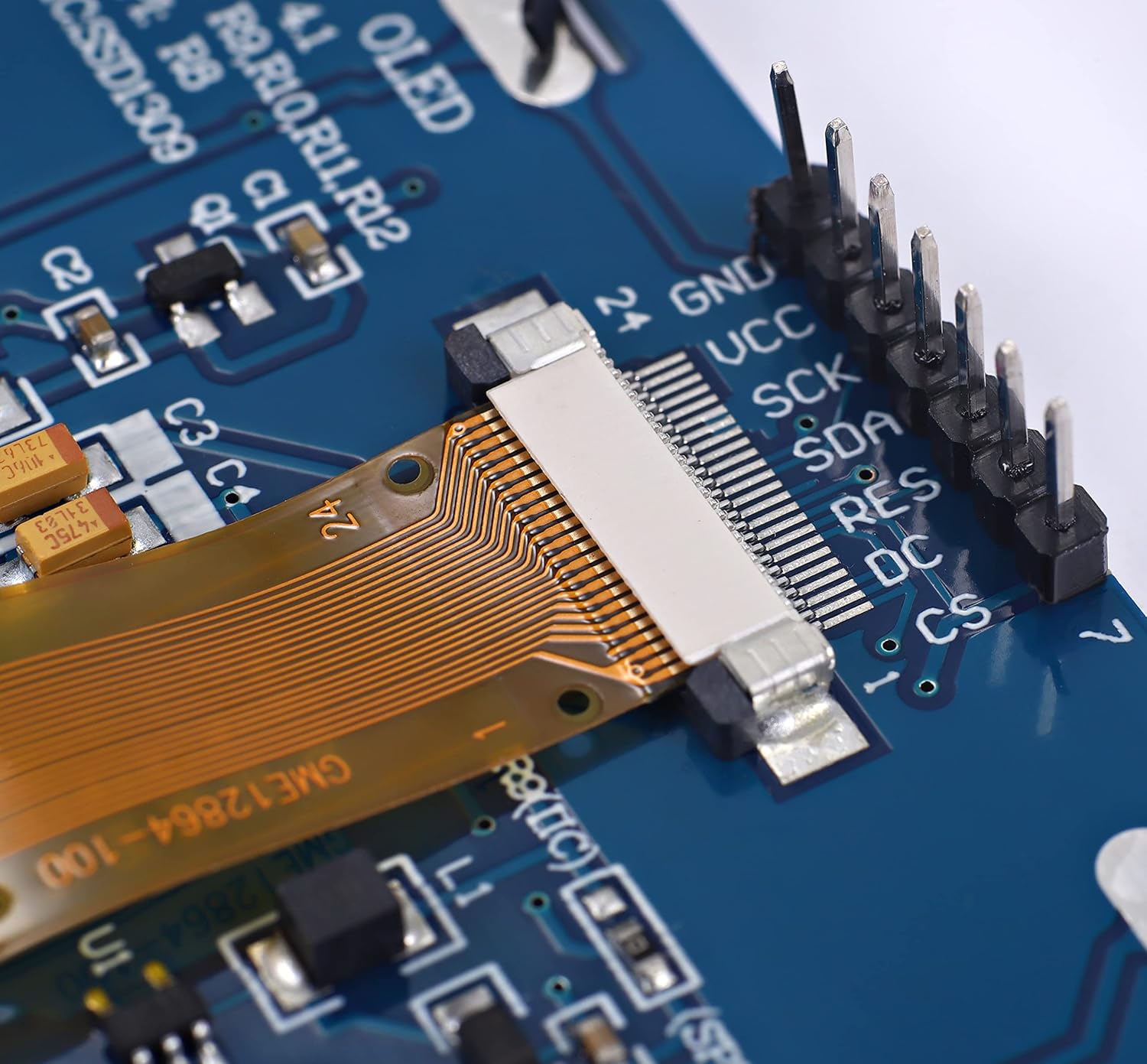

Features: Diagonal Screen Size: 2.42' Resolution: 128 * 64 Driver IC: SSD1309 SPI interface definition: 1.GND (power ground) 2.VCC (power supply positive) 3.SCL (clock line) 4.SDA (data line) 5.RES (reset line) 6.DC (data / command) 7.CS (chip select)

Brand: Teyleten Robot

computers accessories, light, accessories computer, uno white, i2c serial, i2c, 128x64, pin spi, inch 128x64, computer, spi, arduino uno Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

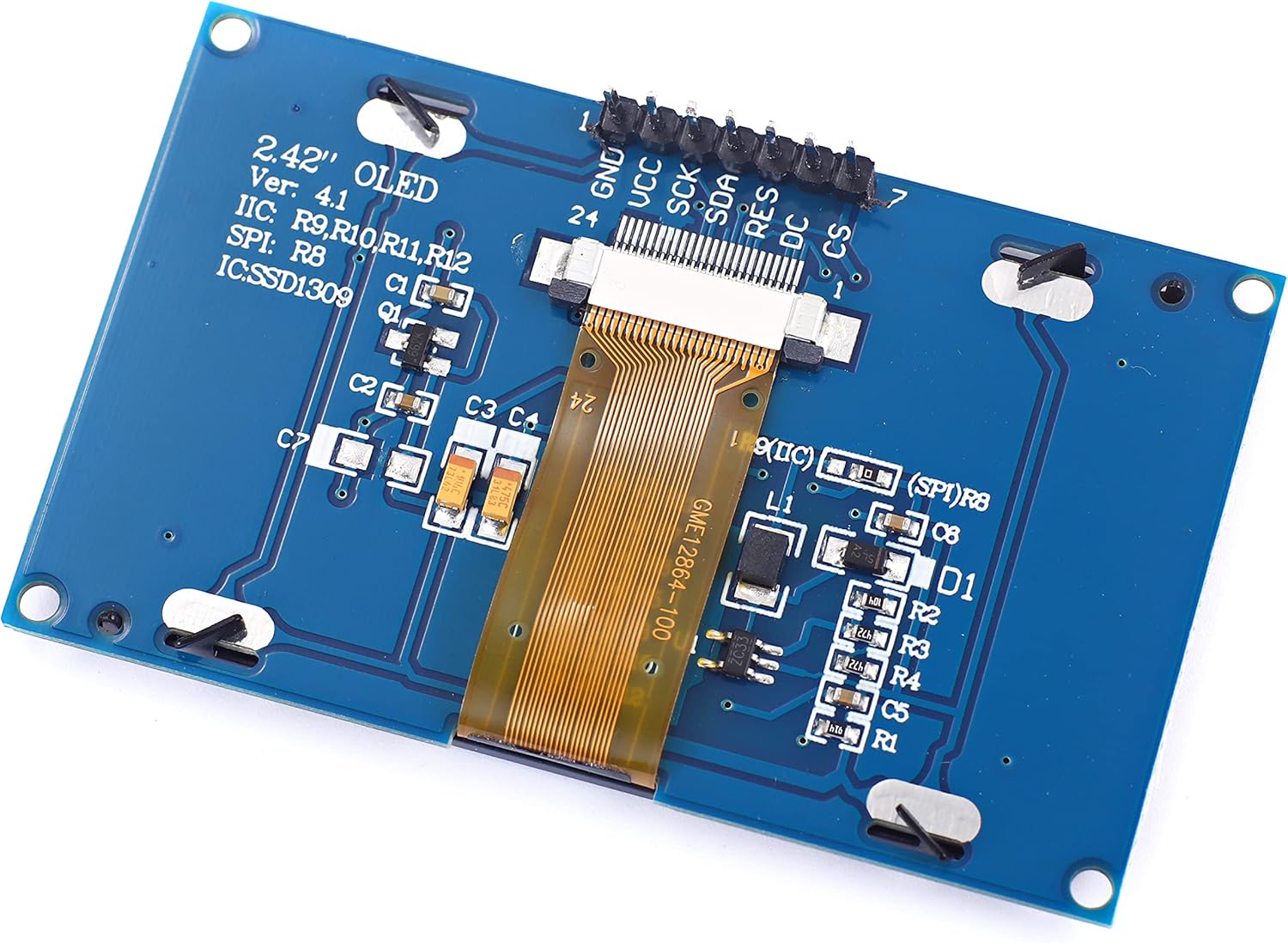

• ✓ Interface Selection: to choose SPI or IIC interface through R3, R4, R5
• ✓ For IIC communication, it is necessary to move the resistor on R4 to R3, and R5 is soldered with 0 ohm resistor.
• ✓ SPI communication or I2C communication can be switched by configuring three resistors R3 R4 R5
