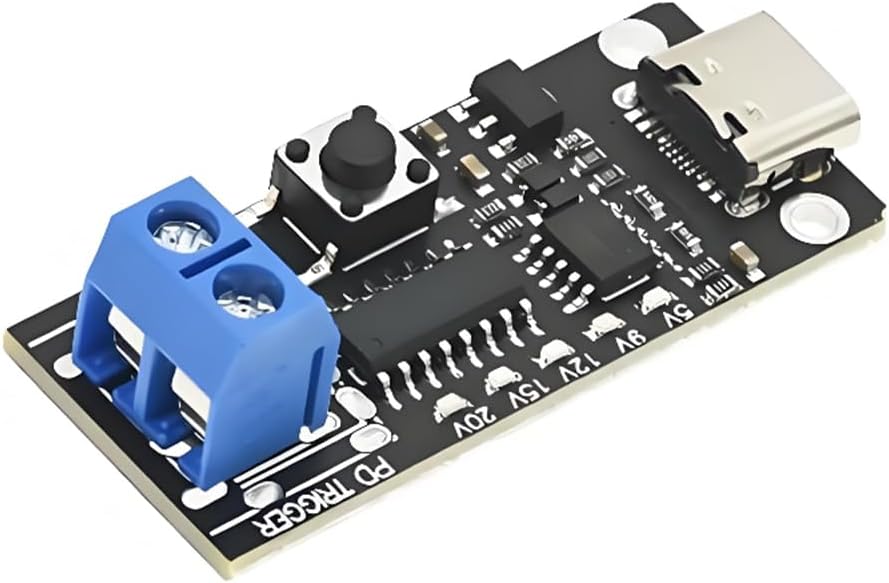

TechVrajna 1-Pack 100W 3.0 3.0 5V/9V/12V/15V/20V 5A USB-C Fast Charge Trigger Module, PD / QC Protocol Support

1-Pack 100W USB-C Fast Charge Trigger Module, PD 3.0 / QC 3.0 Protocol Support, 5V/9V/12V/15V/20V Adjustable Voltage, 5A High Current, Type-C Female Input, Power Conversion DIY Module

TechVrajna 1-Pack 100W 3.0 3.0 5V/9V/12V/15V/20V 5A USB-C Fast Charge Trigger Module, PD / QC Protocol Support

Smart USB-C Fast Charge Trigger Module Single Unit Product Overview A multi-protocol USB-C fast charge trigger module that converts any compatible power adapter into an intelligent charging hub supporting PD/QC/AFC fast charging protocols. It offers five selectable voltage outputs with a maximum power of 100W. Ready to use out of the box, it is ideal for various DIY charging and electronics projects. Key Features Full Protocol Support: Compatible with PD2.0/3.0, QC2.0/3.0, and AFC fast charging protocols. Automatically detects connected devices and selects the optimal charging profile. Five Voltage Outputs: Provides fixed voltage outputs of 5V, 9V, 12V, 15V, and 20V. Select your desired voltage manually via the physical switch. High-Power Stable Output: Supports up to 5A continuous current, delivering 100W max output at 20V. Offers stable performance with effective thermal management. Easy Installation: Features a Type-C female input and screw terminal outputno soldering required. Connect and use immediately. Safe & Reliable: Built-in over-current and over-temperature protection ensures safe operation. Technical Specifications Input Interface: Type-C Female Port Output Interface: Screw Terminals Output Voltages: 5V / 9V / 12V / 15V / 20V (Fixed Steps) Output Current: Up to 5A Continuous Supported Protocols: PD2.0/3.0, QC2.0/3.0, AFC Operating Temperature: -20 ~ +85

Brand: TechVrajna

12v, type female, adjustable voltage, module electronics, 20v adjustable, 15v, techvrajna, usb, conversion, input power, fast, pack 100w Electronics Power Accessories Power Converters

Key Features

• ✅ Fully compatible with PD2.0/3.0, QC2.0/3.0, and AFC protocols. Automatically negotiates the optimal charging profile and delivers fixed 5V/9V/12V/15V/20V outputs.
• ✅ Features a dedicated QC decoy circuit with a physical mode switch, allowing you to manually select and lock the desired output voltage.
• ✅ Capable of delivering a stable, continuous 5A current with reliable voltage regulation and effective heat management.
• ✅ Includes a USB-C female input and screw terminal output for quick, solder-free wiring. Ready to integrate into your project immediately.
• ✅ Sold individually, perfect for custom single-port charging solutions, prototyping, or as a versatile upgrade module for existing power systems.
