SparkFun MP3 MY1690X-16S Serial Player Shield

SparkFun Serial MP3 Player Shield MY1690X-16S

SparkFun MP3 MY1690X-16S Serial Player Shield

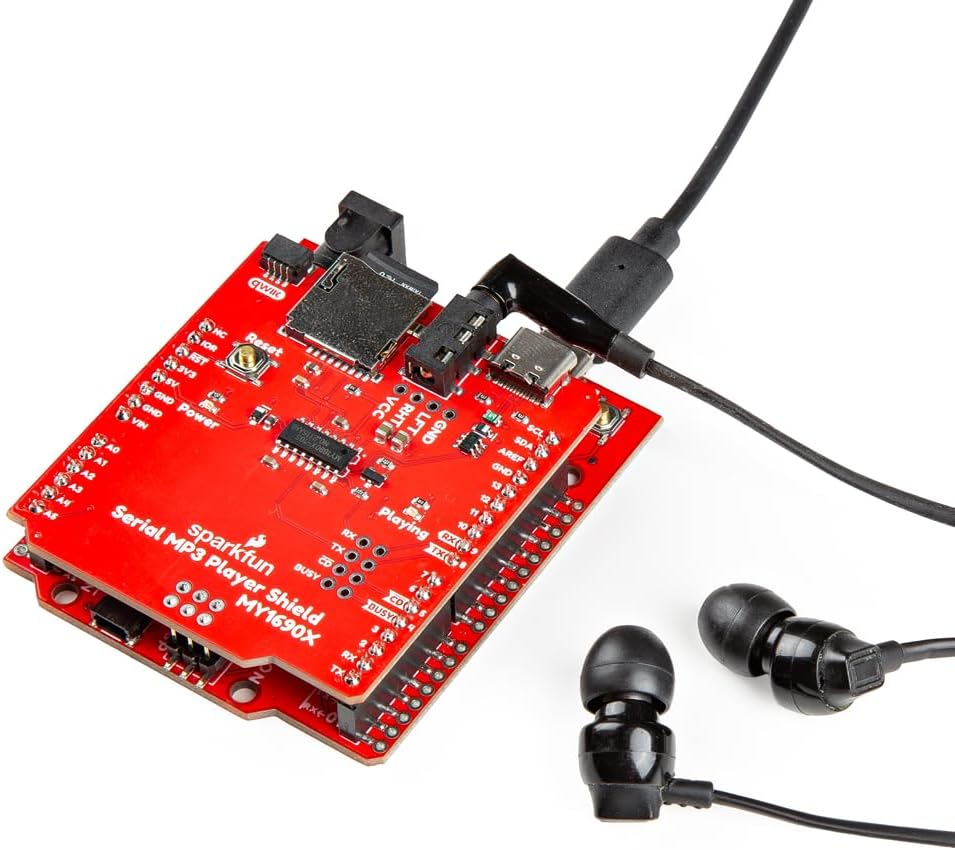

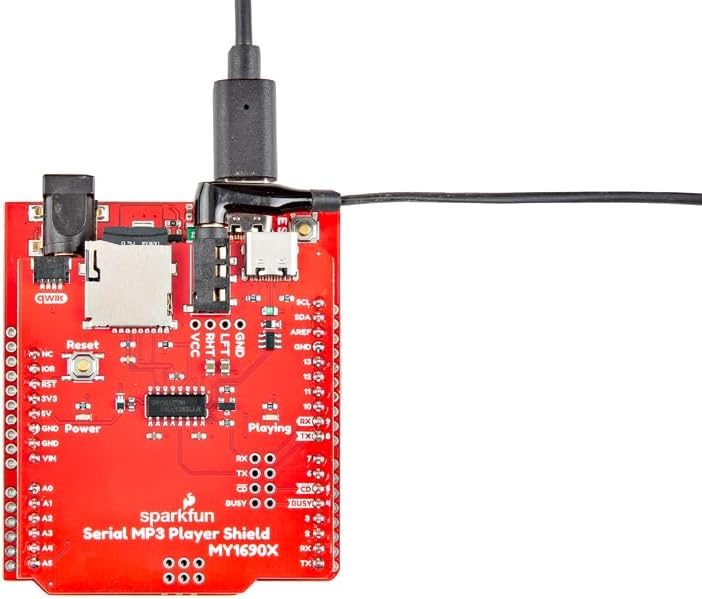

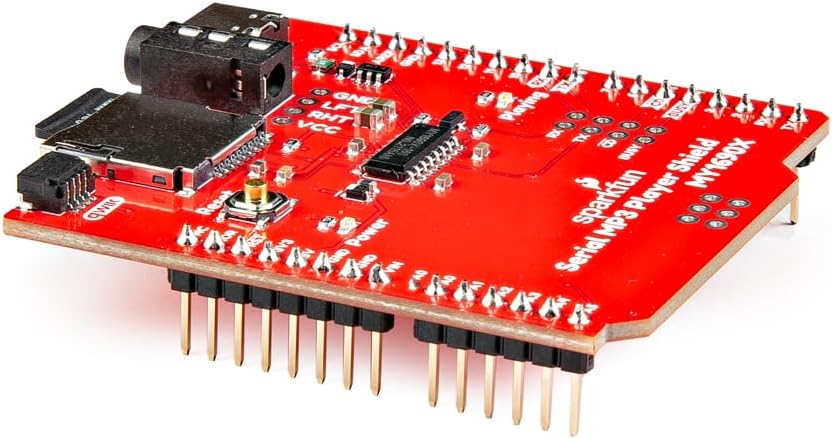

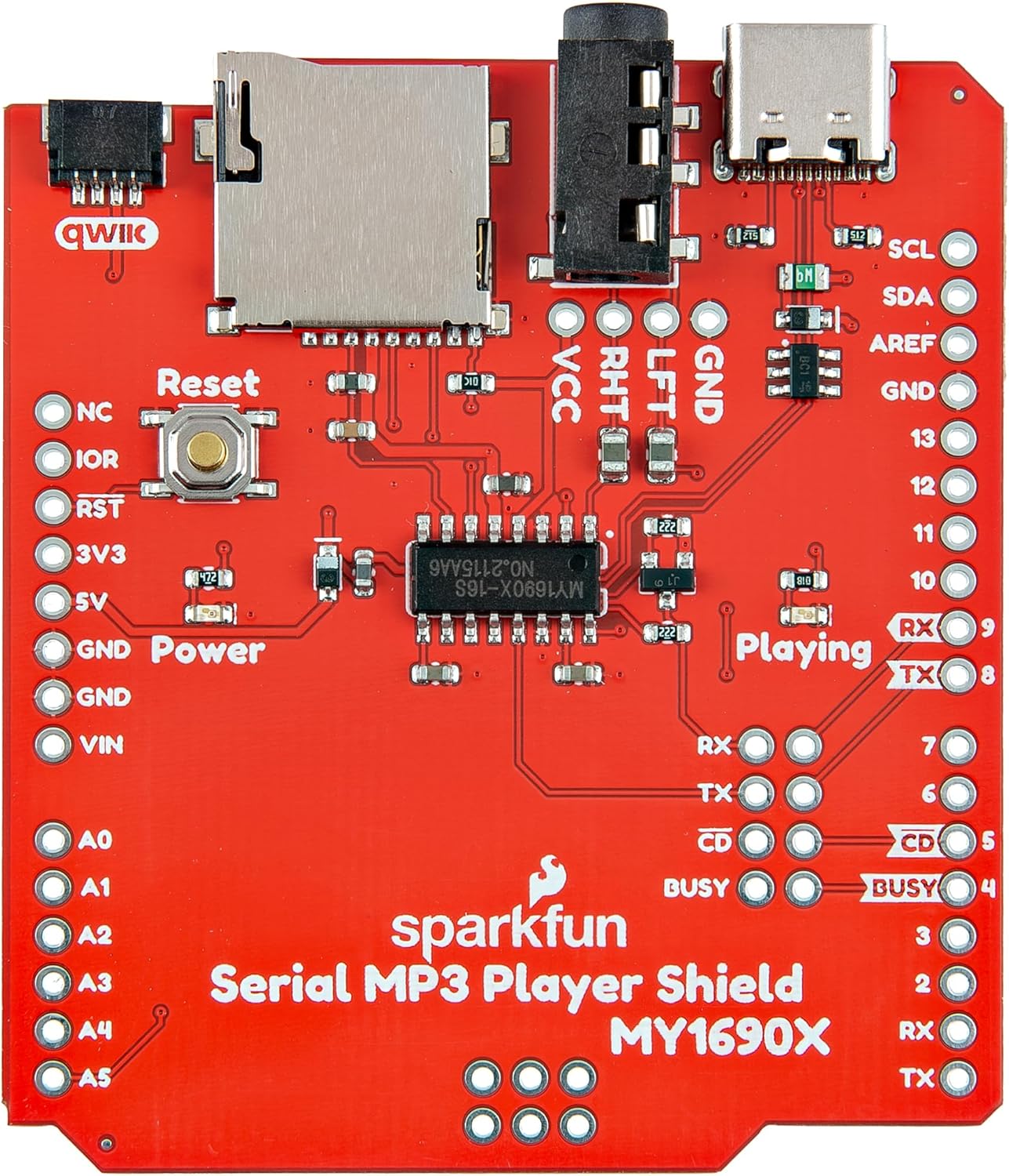

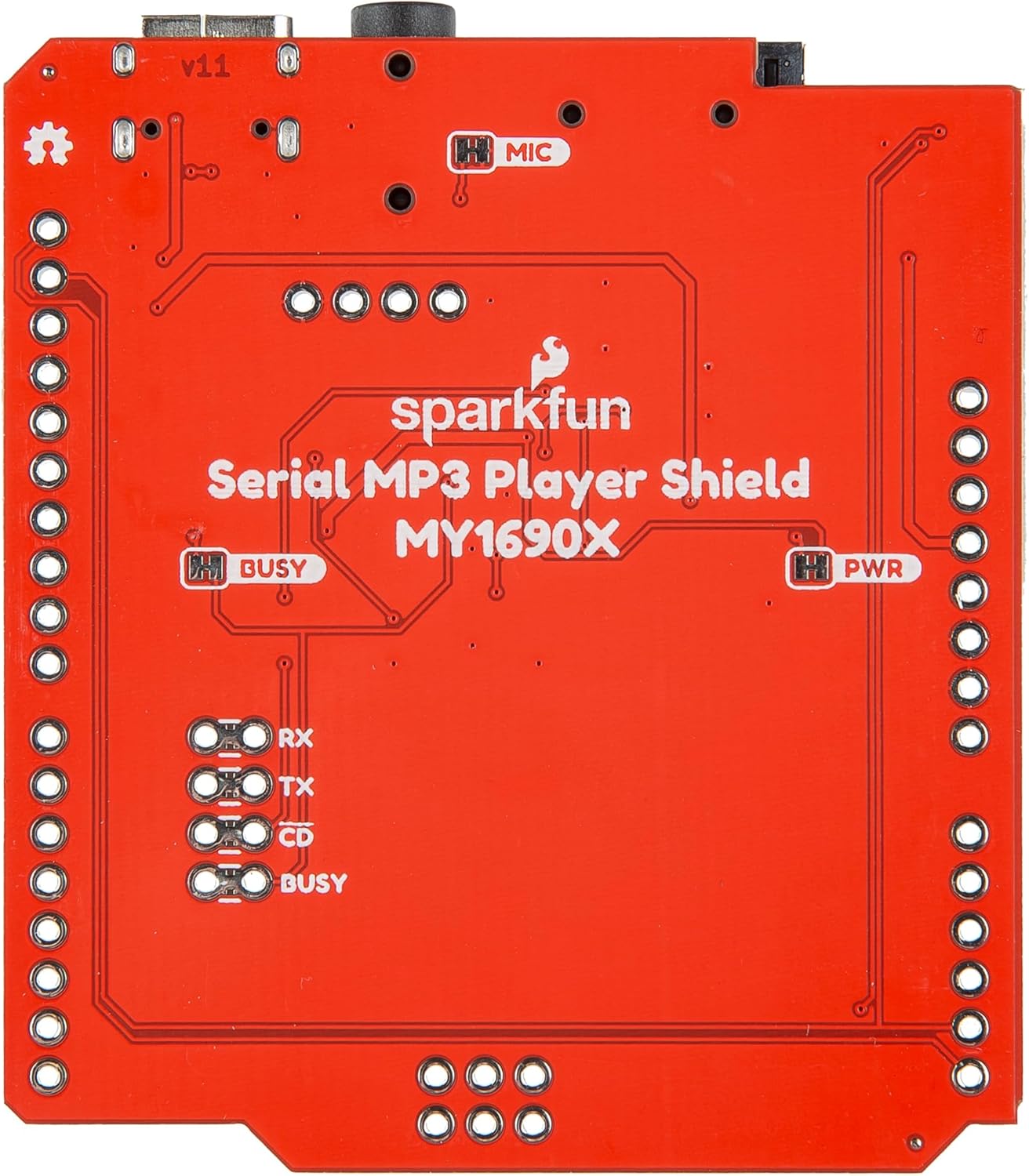

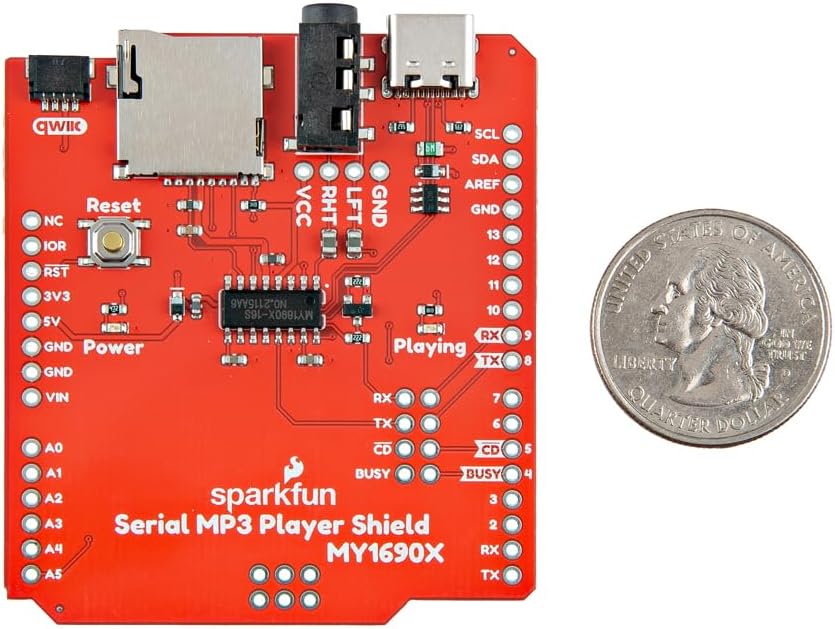

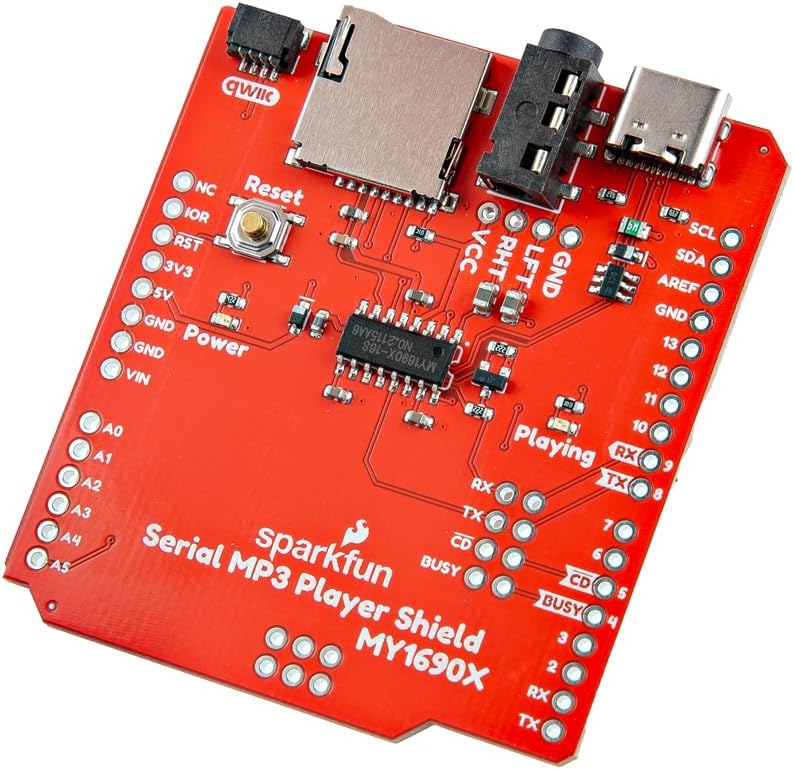

The SparkFun Serial MP3 Player Shield (MY1690X-16S) adds standalone audio playback to compatible with Arduino projects. Store MP3 or WAV files on a microSD card (up to 32GB, formatted FAT16 or FAT32) and control playback using the onboard UART serial command set. Audio is output through a 3.5mm TRRS connector for headphone-level output. For convenient file management, the shield includes a USB-C connector that allows the microSD card to appear as a drive when connected, making it easy to add or remove audio files. The board uses a standard compatible with Arduino Uno R3 shield footprint and includes an ICSP passthrough header footprint for compatibility in stacked builds. A horizontal Qwiic connector is provided to expose the I2C bus from compatible with Arduino boards. Note: Headers are not included. For speaker use, add an external audio amplifier.

Brand: SparkFun

16s, sparkfun serial, mp3 player, 16s electronics, player, mp3, shield my1690x, serial, electronics, my1690x, computer, shield Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ Audio playback module: Decodes MP3 and WAV files from a microSD card (FAT16/FAT32) for adding music or sound effects to compatible with Arduino projects
• ✅ Storage support: Works with microSD cards up to 32GB and supports large libraries (up to 65536 tracks)
• ✅ Simple control interface: Uses a UART serial command set for playback control and status monitoring (Busy/Playing LED)

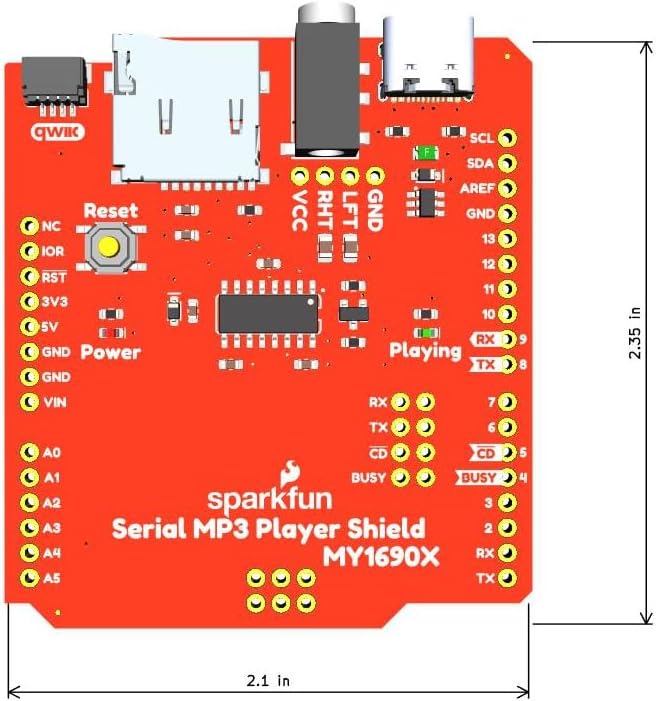

• ✅ Connectivity and form factor: Standard compatible with Arduino R3 footprint with 2x3 ICSP passthrough, plus a horizontal Qwiic connector for access to the I2C bus on compatible boards
• ✅ Whats included and requirements: Shield only (headers not included); audio output via 3.5mm TRRS jack for headphones, and an external amplifier is required for driving speakers
