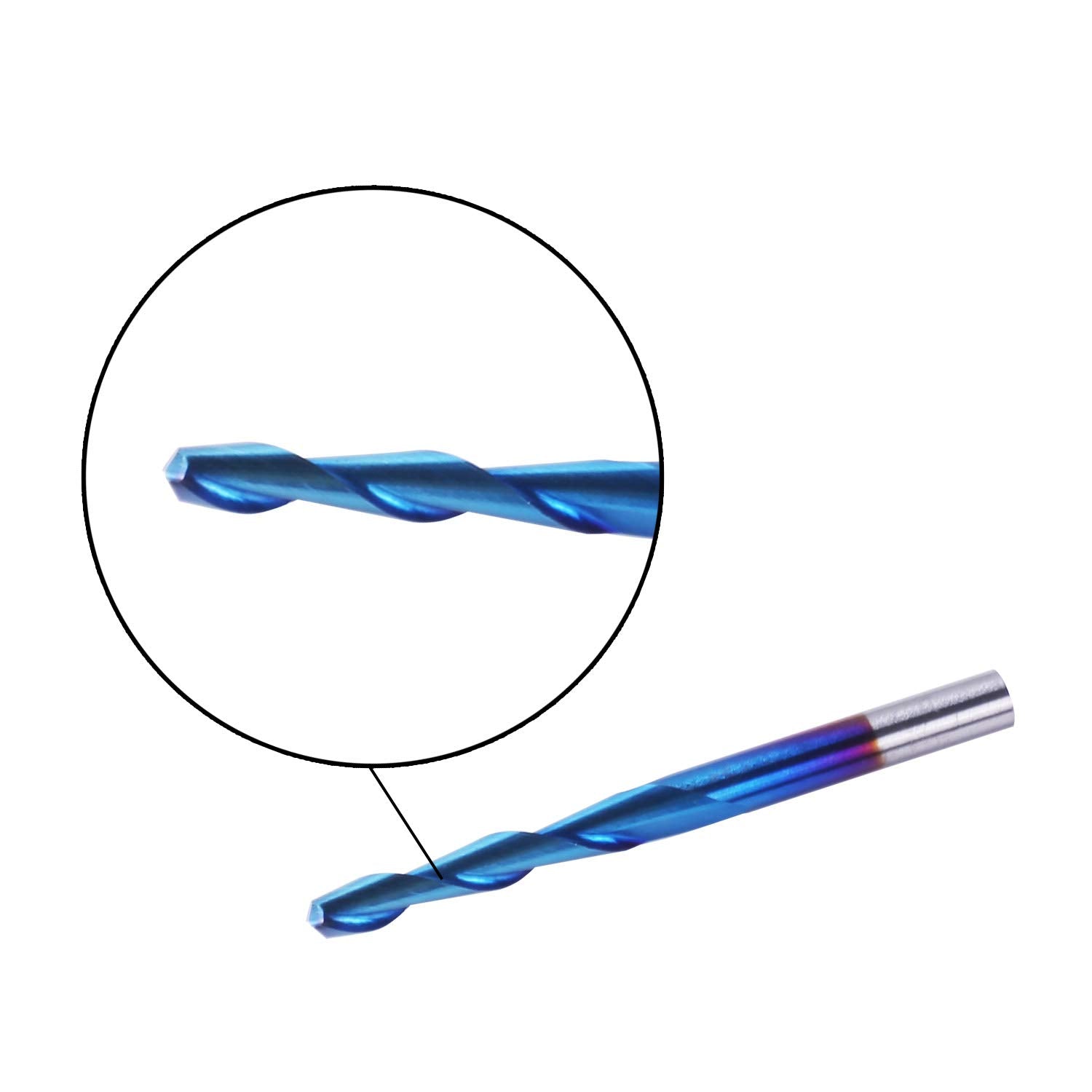

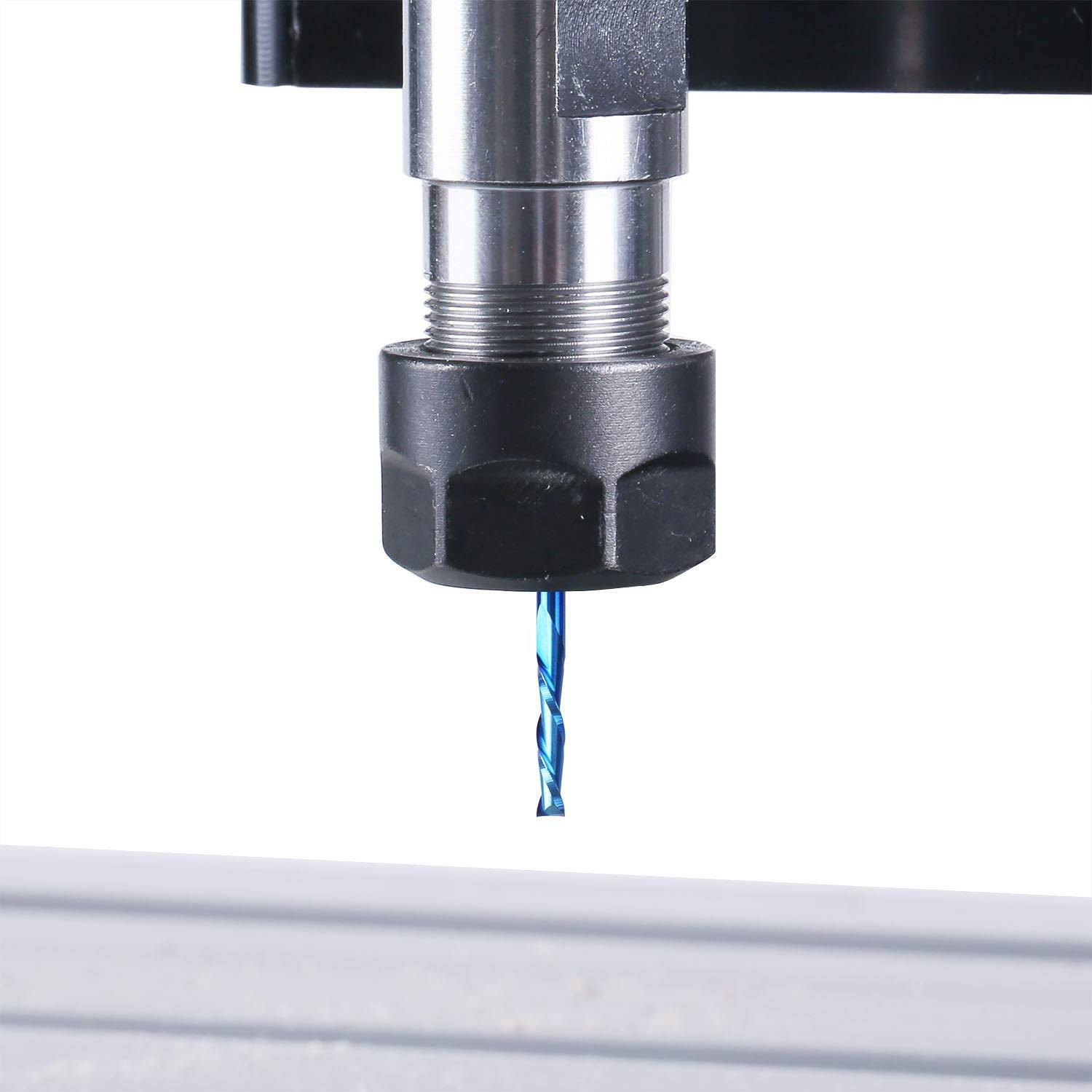

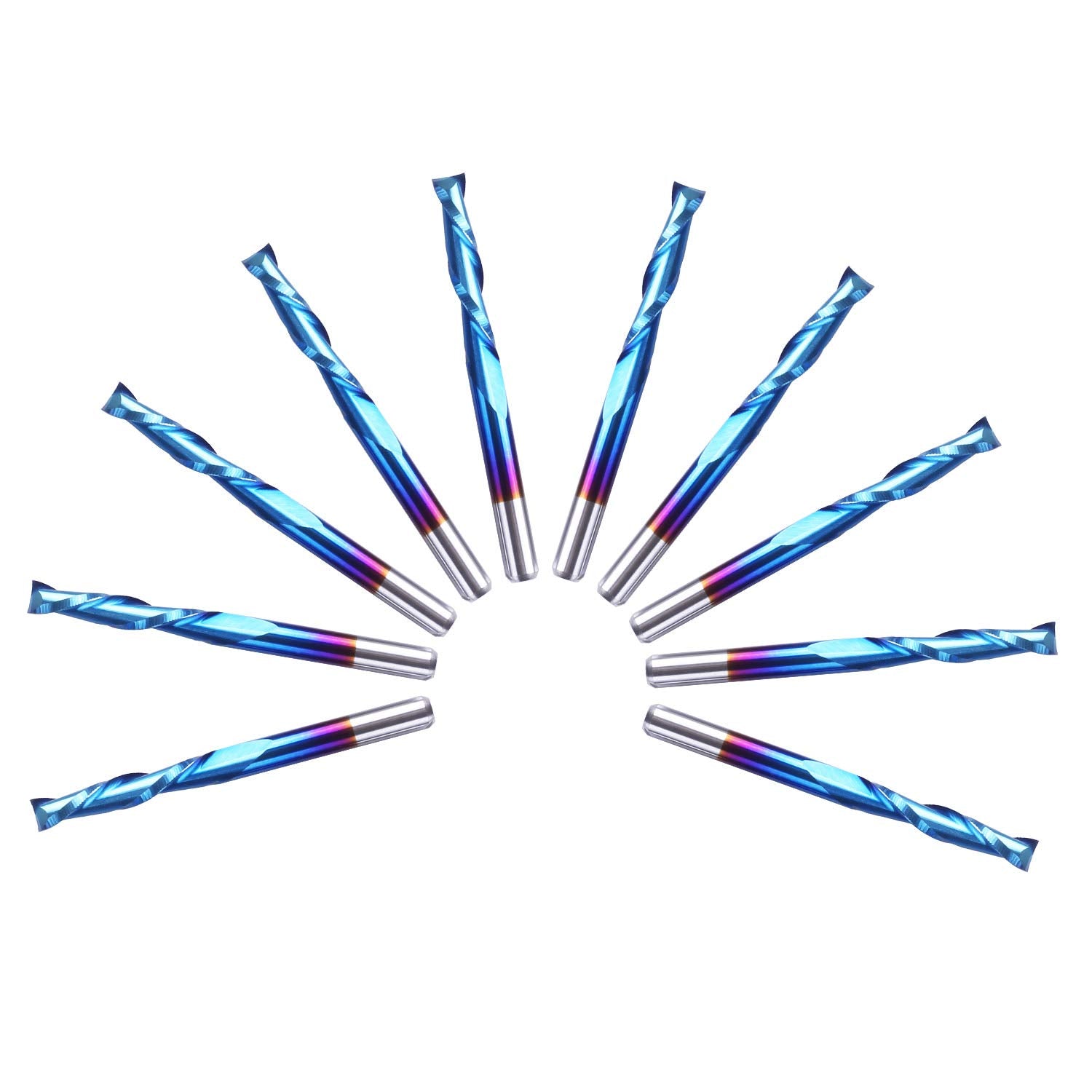

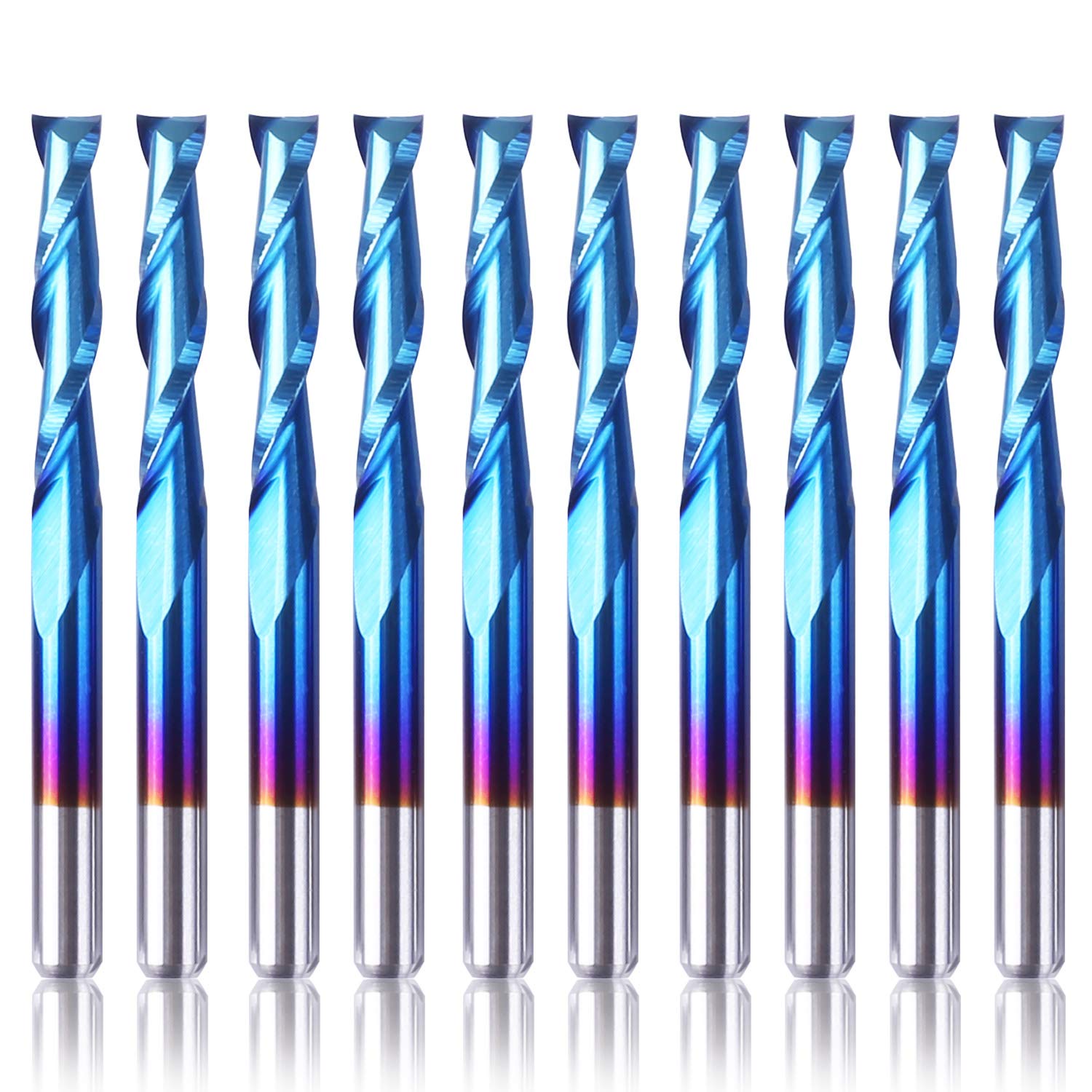

SainSmart Genmitsu 10Pcs Nano Blue Coat Flat Nose End Mill CNC Router Bits, 1/8" Shank Spiral Upcut 2 Flute End Mill Set (3.175 x 17 x 38mm)

Brand: SainSmart

Features:

• Number of Flutes: 2
• Cutting Edge Diameter (CED): 3.175mm (1/8") approx.
• Advantage: Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
• Suitable Material: Nylon, Resin, ABS, Acrylic, PVC, MDF, Hardwood.
• Application: Great for 3D relief sculpturing, cutting, engraving, slotting, milling, etc.

Release Date: 01-01-2024

model number: 2-Flute Flat Nose

Part Number: 2-Flute Flat Nose

Details: SPECIFICATIONS

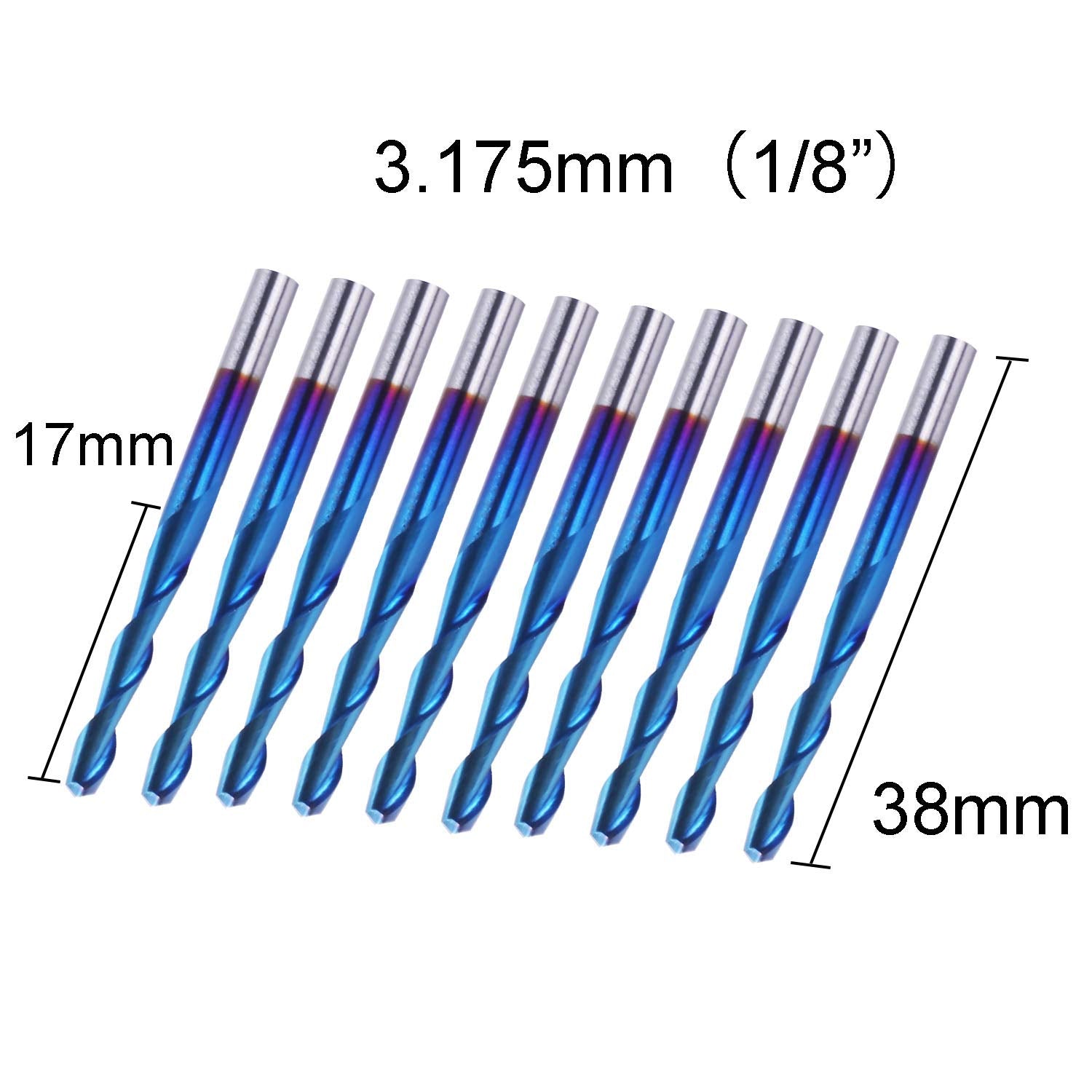

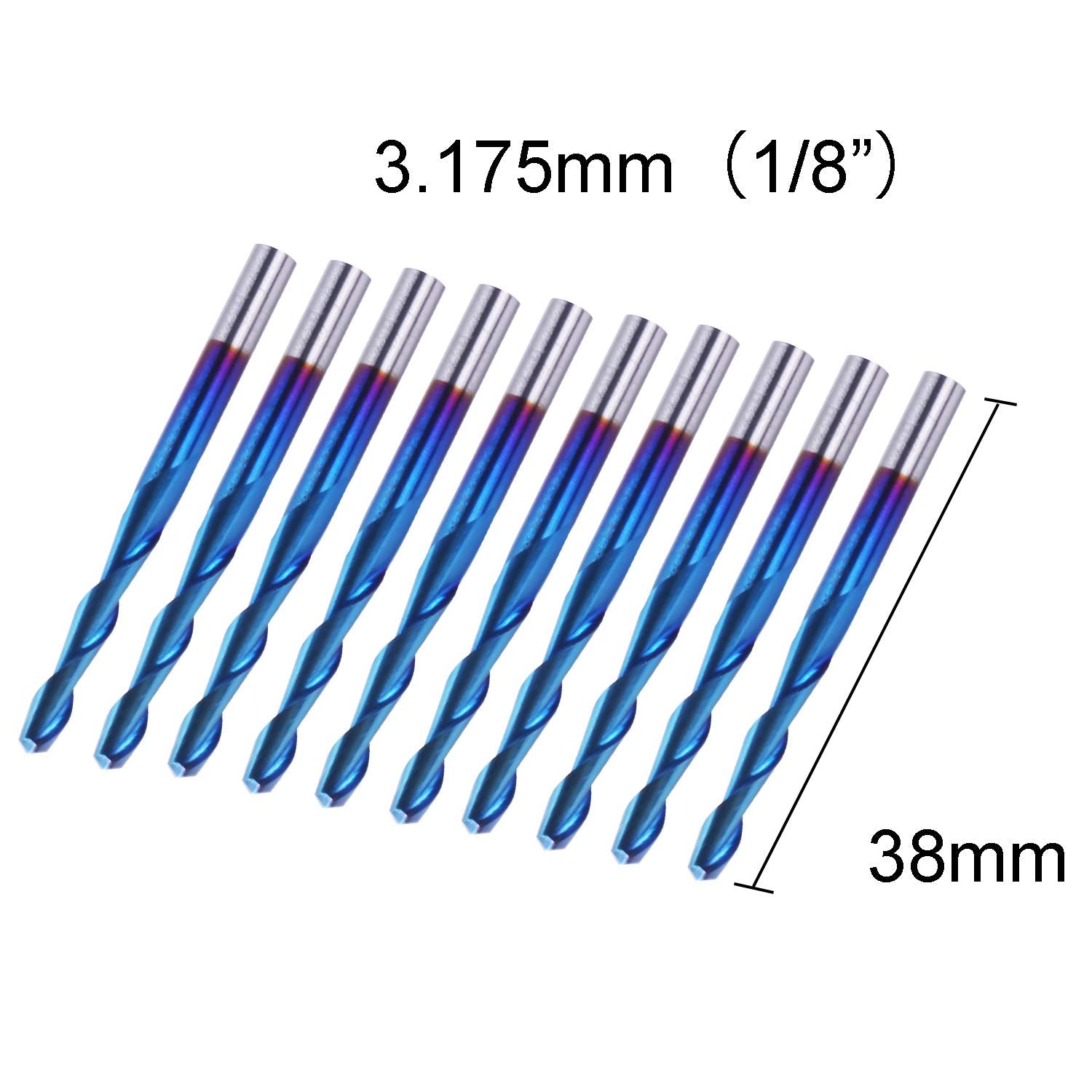

Shank Diameter: 3.175mm
Cutting Edge Length: 17mm
Overall Length: 38mm (Tolerance: ±1-2mm)
Cutting Edge Diameter: 3.175mm; 10Pcs

Innovative Nano Blue Coat

Chemical Composition: Ni-La203

Physical Characteristics:

1. Enhance the hardness of the bits.
2. Reduce the frictional resistance coefficient of the bits at high speed to improve the smoothness of the machined surface.
3. Increase the heat dissipation performance of the bits to avoid the influence of the crystal structure change due to excessive
temperature.
4. Reduce the phenomenon of chipping of the cutting edge. Enhance the elasticity of the bits. The impurities of the workpiece
can be elastically skipped to avoid damage to the cutting edge.
5. Extend service life.
6. Since the carbide bit has high hardness and is relatively brittle, the machine speed range should be controlled during use.

WHAT'S INCLUDED?

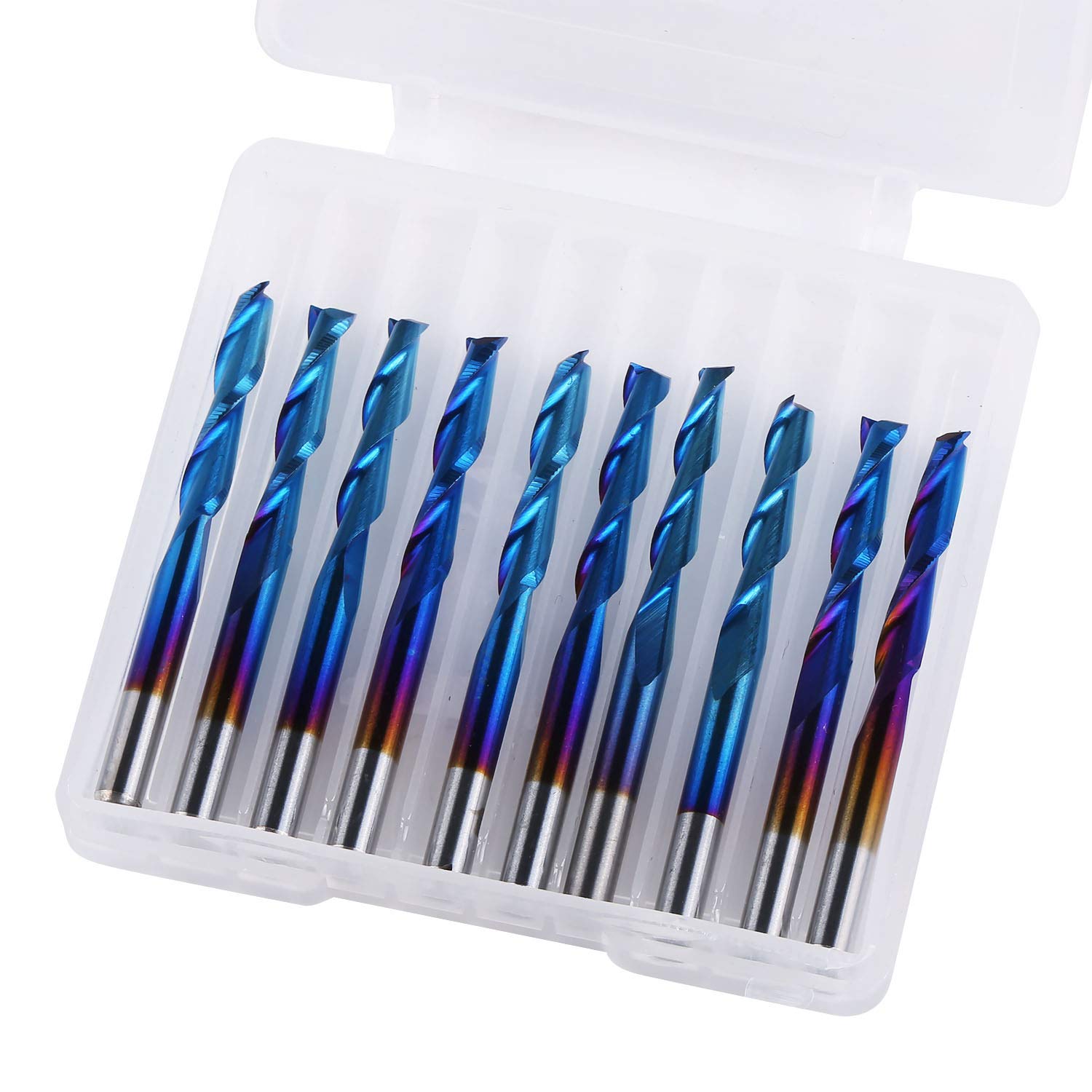

1 x Set (10Pcs Nano Blue Coat 2 Flute Flat Nose End Mill CNC Router Bits)

EAN: 4897093841377

Package Dimensions: 3.4 x 2.1 x 0.4 inches
