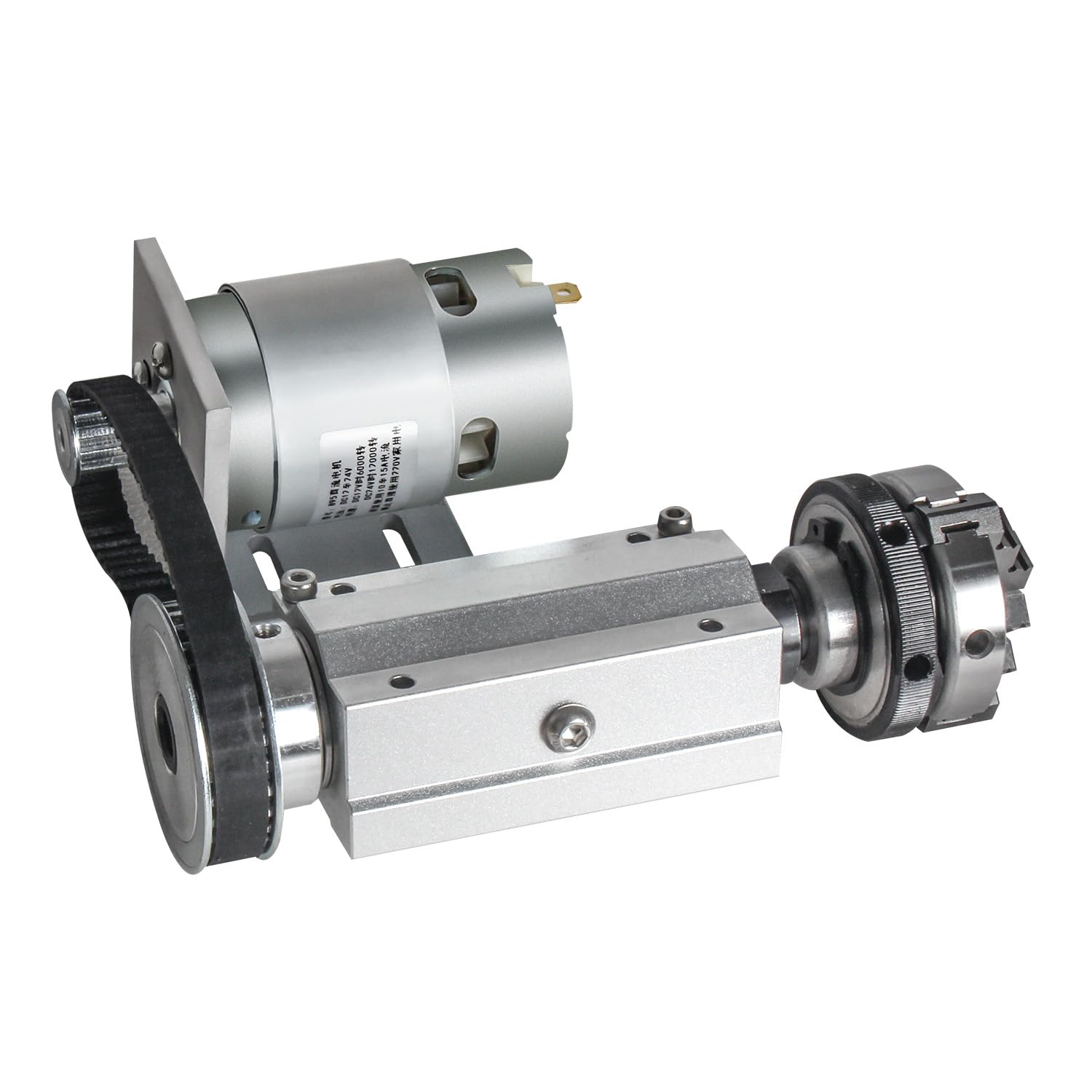

RATTMMOTOR No powered Multi-function Lathe Chuck Spindle Assemblies 895 Motor Rotary Lathe Woodworking Spindle Motor Chuck 50mm for CNC Lathe Grinder machine Table Saw (3 Jaw 50mm)

Brand: RATTMMOTOR

Features:

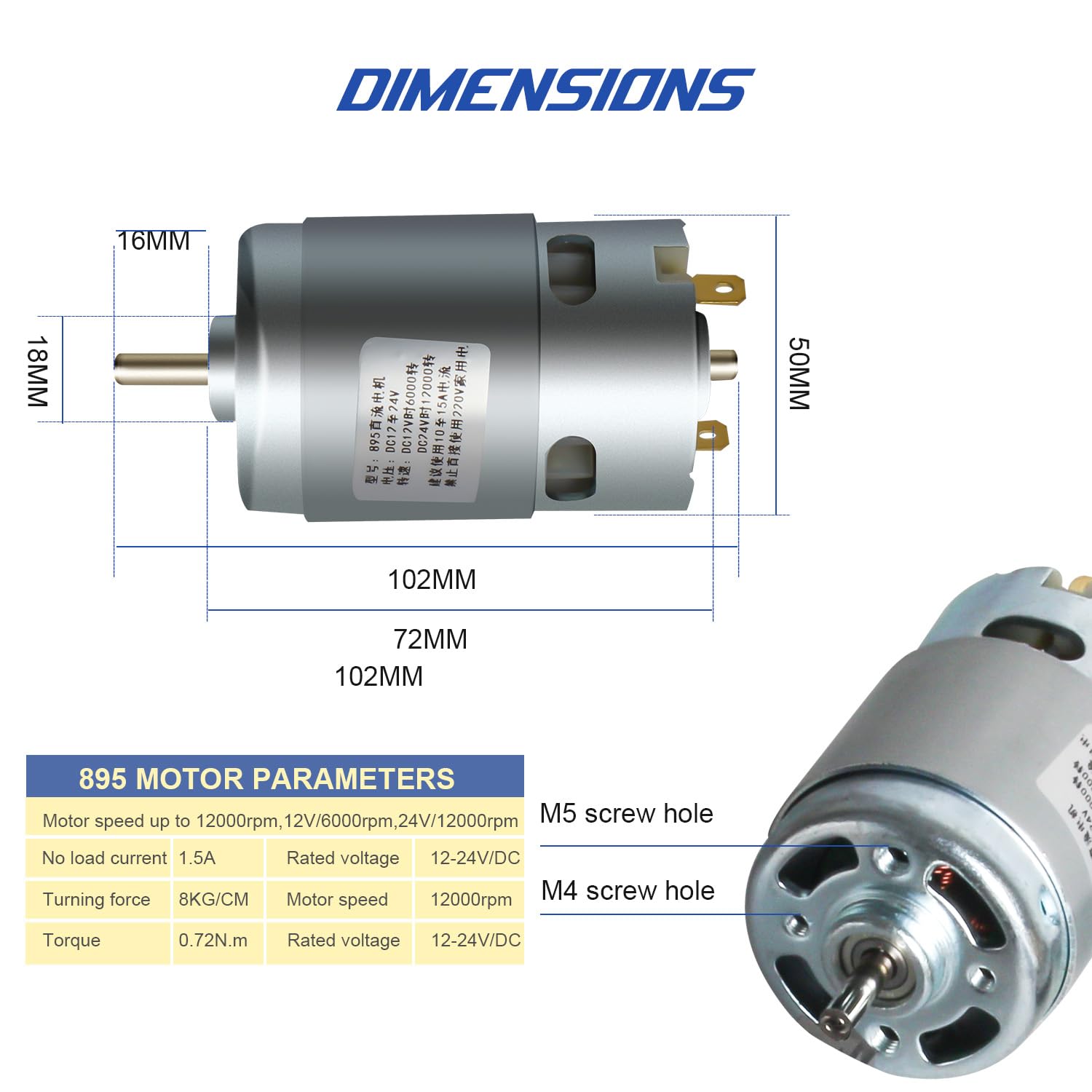

• 【6000-12000RPM】No-load current 1.5A, turning force: 8KG/cm, torque: 0.78N.m, rated voltage 12-24V DC, motor speed up to 12000rpm, 12V/6000rpm, 24V/12000rpm, , supports forward and reverse, high speed, strong momentum.

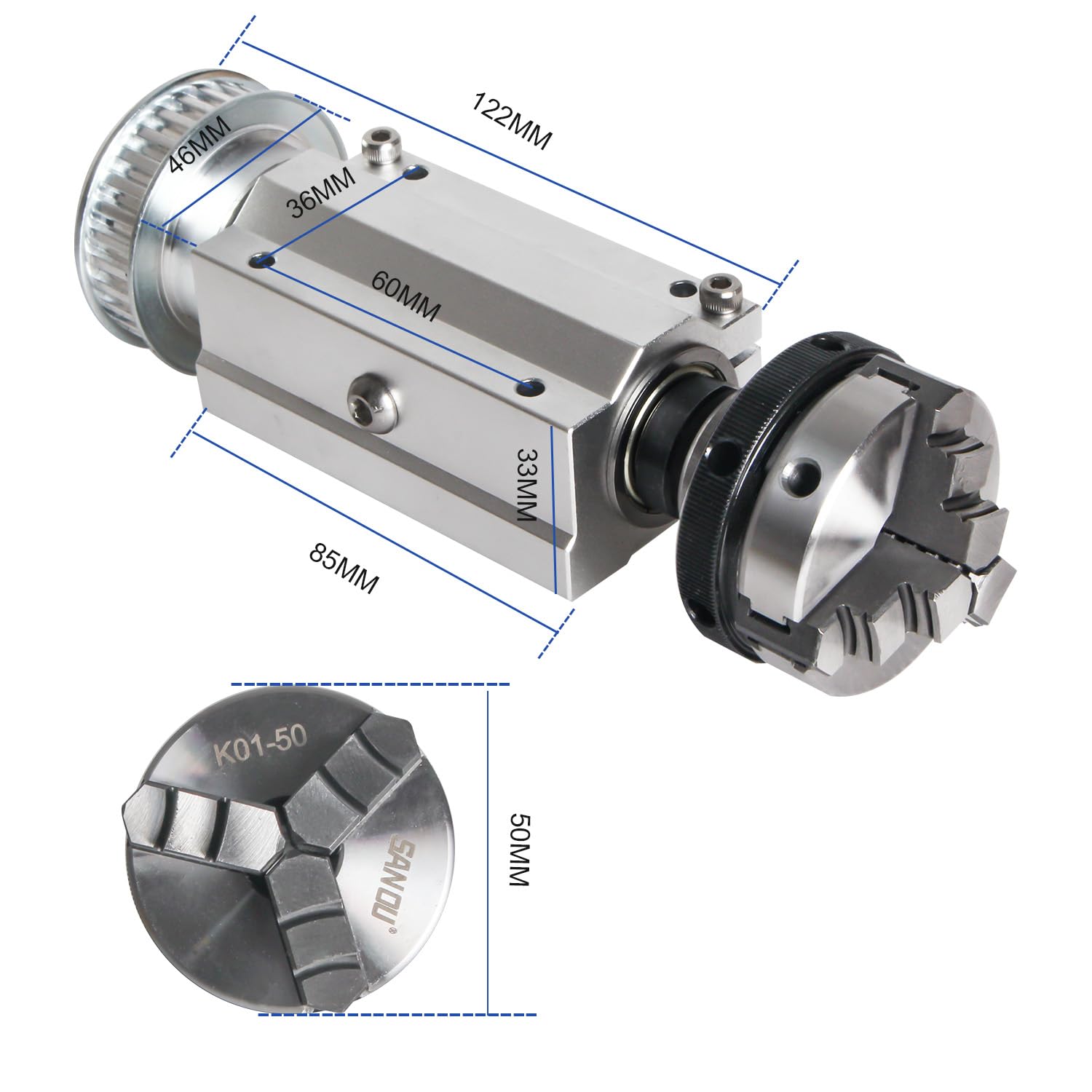

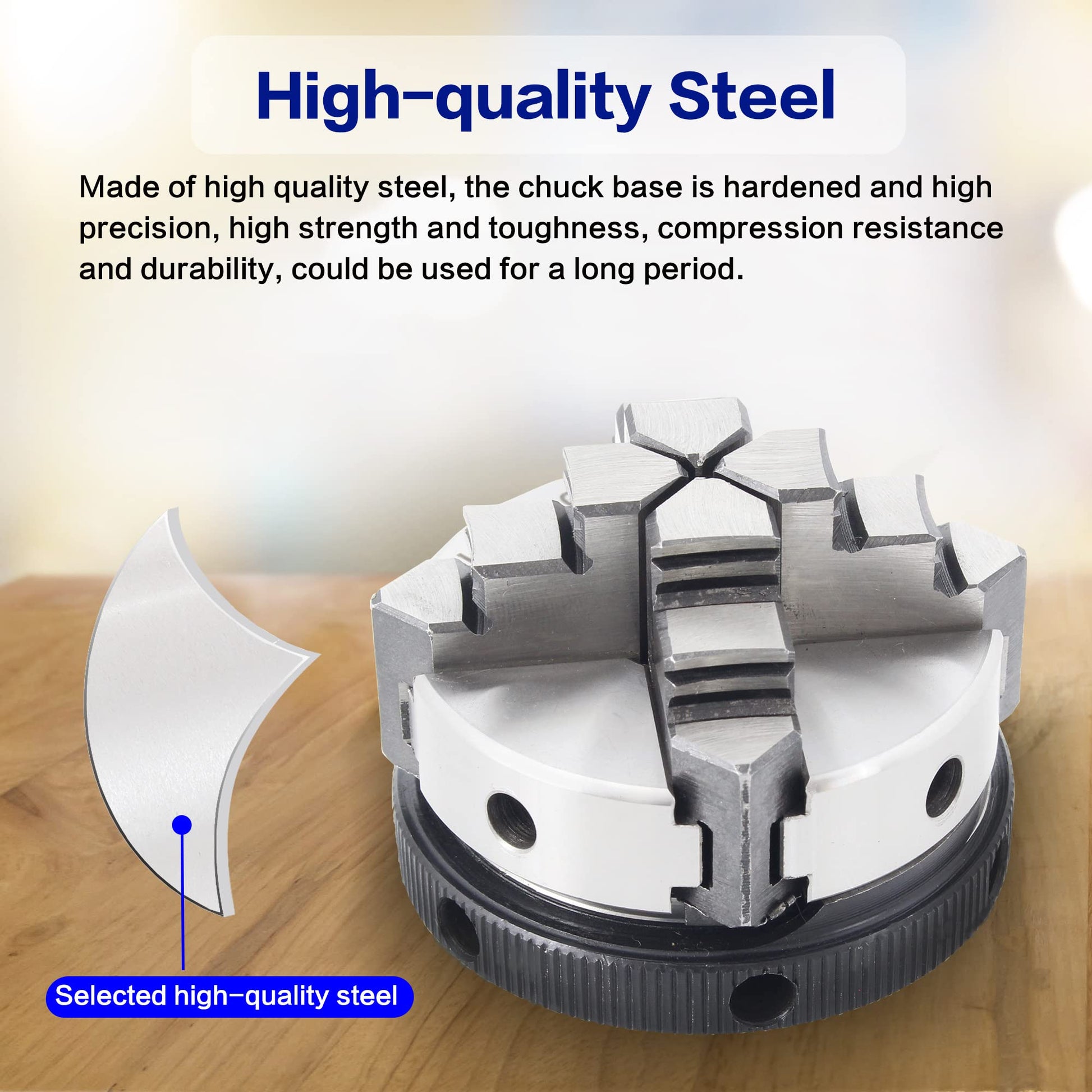

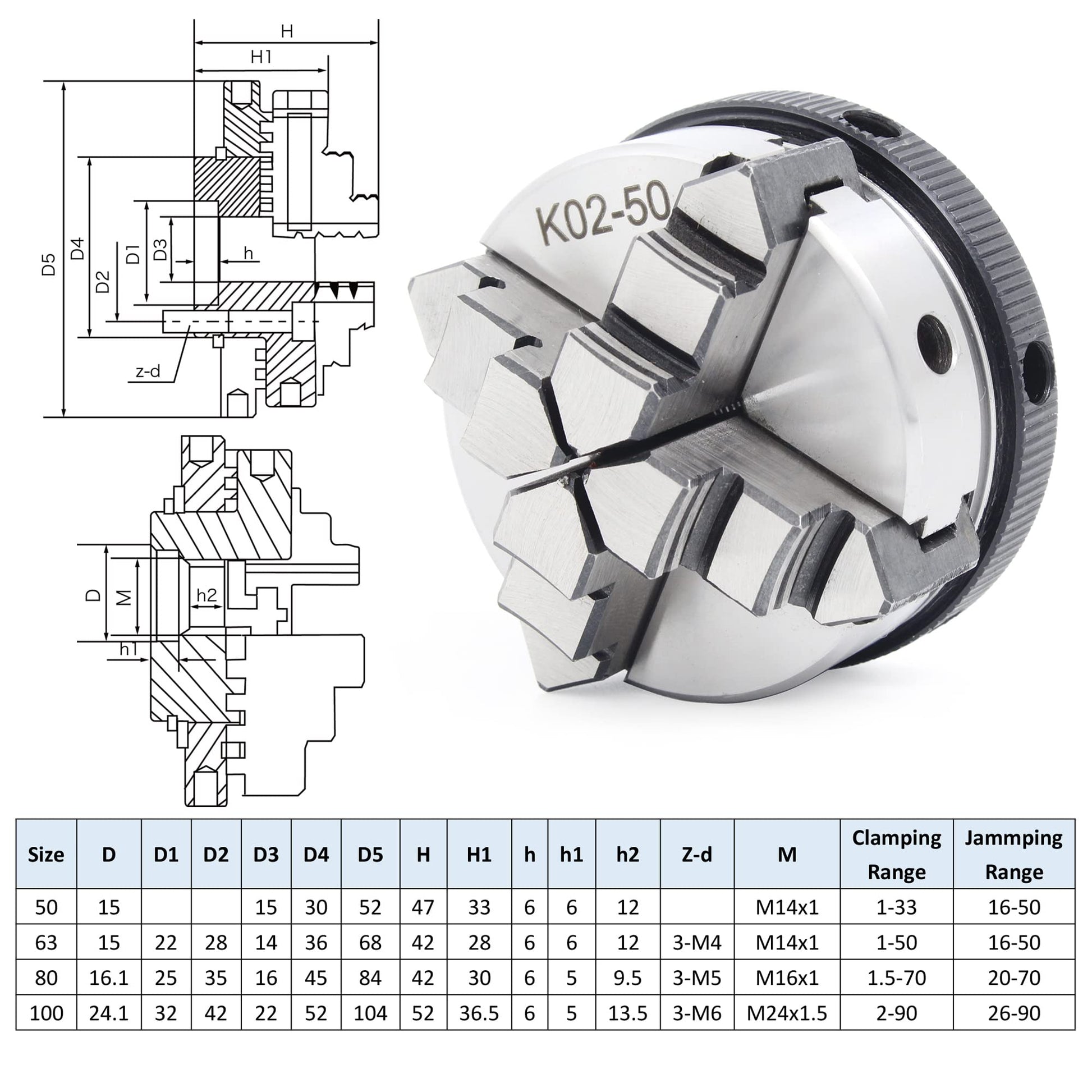

• 【K01-63mm Self-centering Chuck】Jaw: 3 Jaw; Internal jaw clamping: 2-15mm; External jaw clamping: 20-50mm; Connection form: threaded connection, threaded port size: M14.

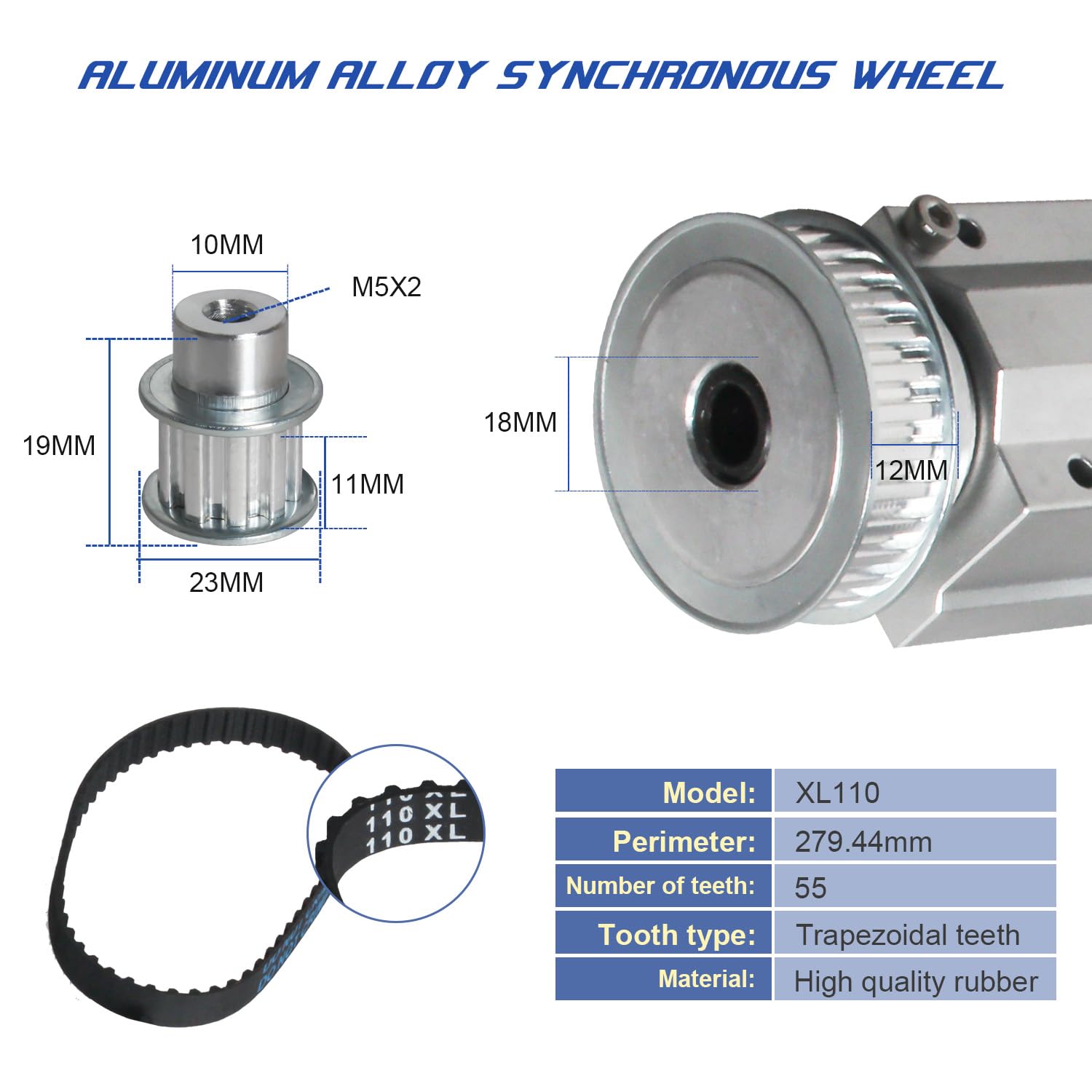

• 【XL10 teeth 5mm + XL30 teeth 15mm motor synchronous wheel】Aluminium alloy synchronous wheel, high transmission efficiency, and smooth transmission, with buffer, vibration damping capacity, low noise. Synchronous wheel reduction ratio 1:3.
• 【110XL belt】Circumference 279.44mm, number of teeth 55, transmission speed ratio range, compact structure suitable for multi-axis transmission, without lubrication; belt selection of high quality materials, anti-wear.

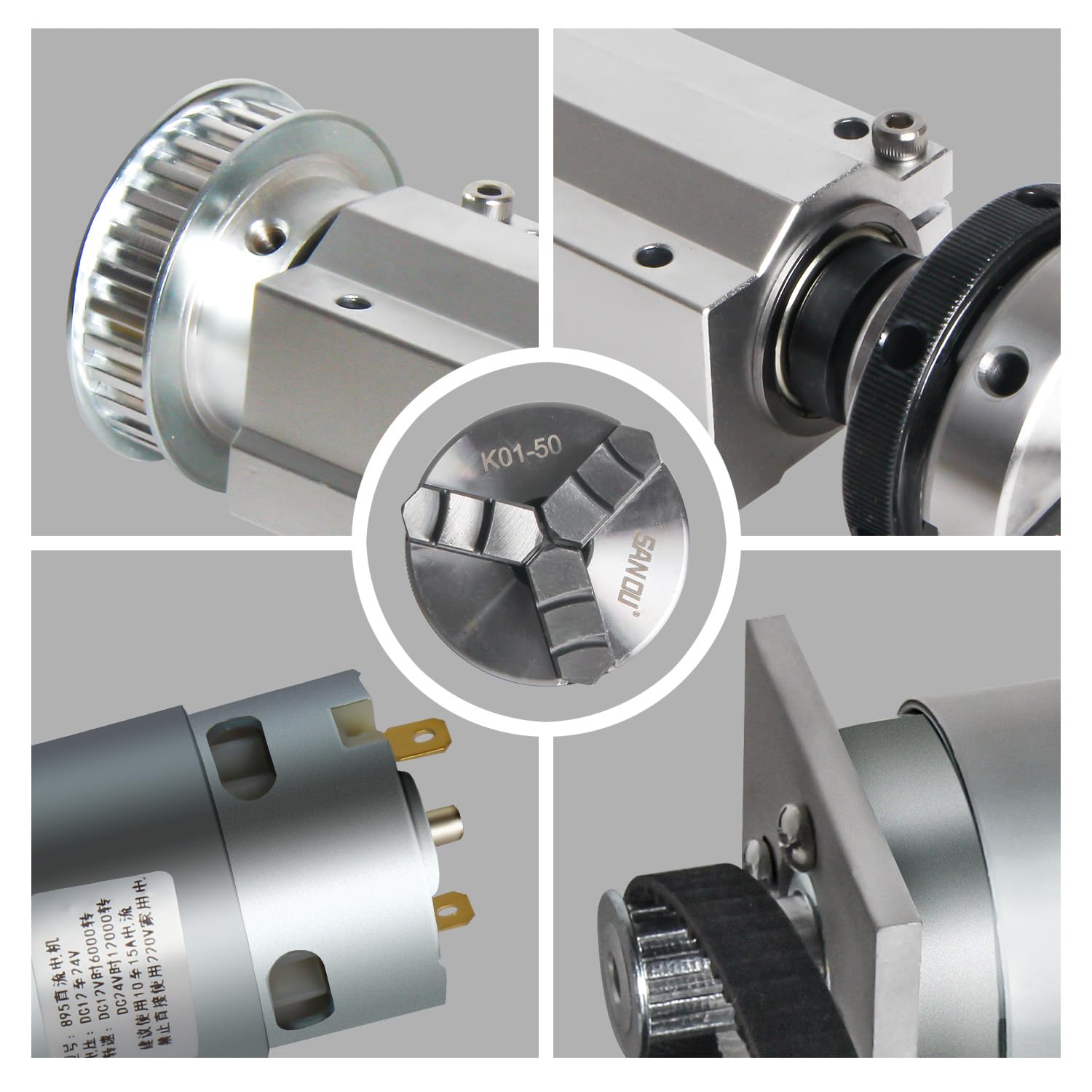

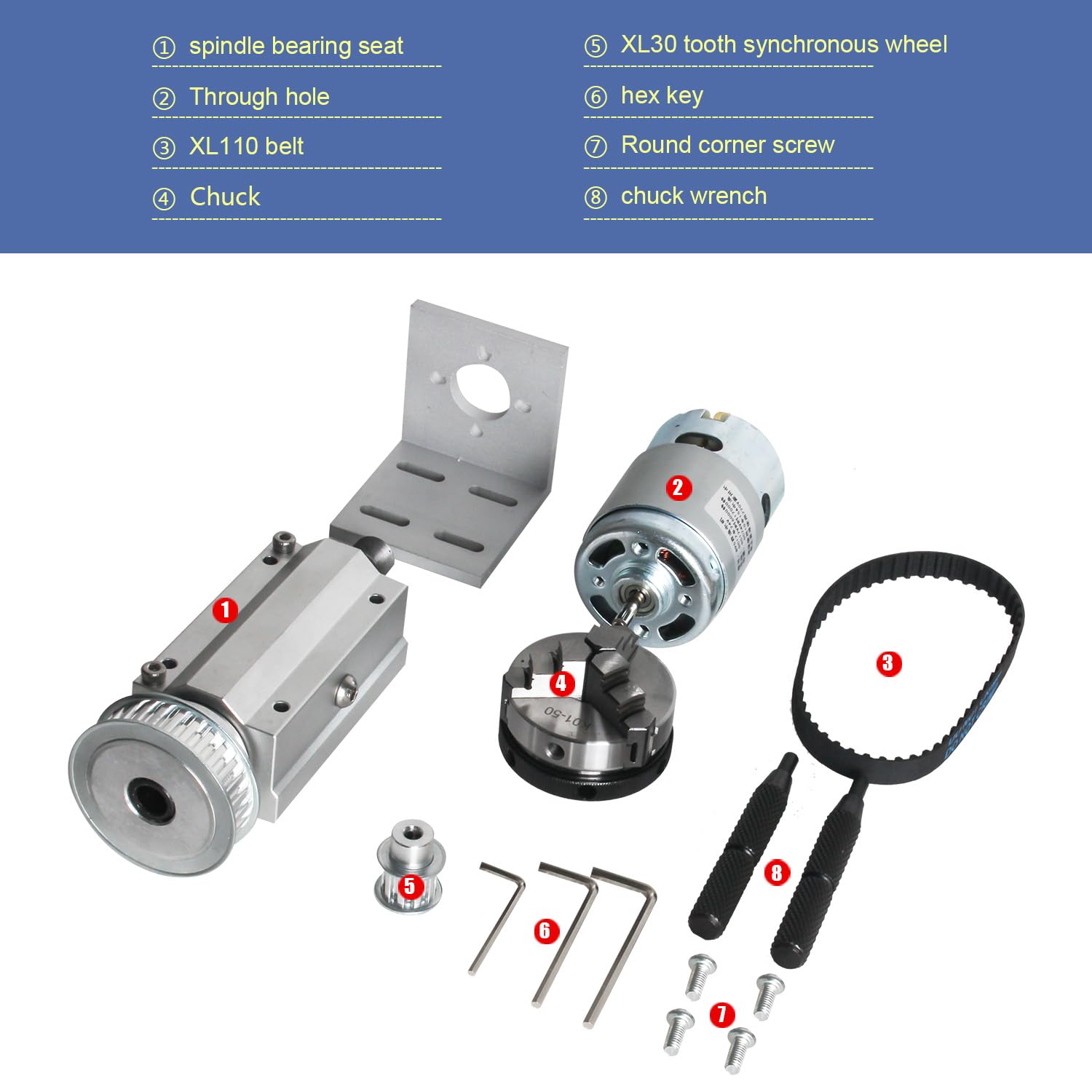

• 【Chuck Assembly Parts Overview】1*Chuck; 2*Chuck spanner; 1*Through-hole spindle rod; 1*Spindle bearing housing; 1*XL10 tooth 5mm synchro wheel; 1*XL30 tooth synchro wheel; 1*XL110 belt; 3*Inner 6-angle spanner.

model number: XIAOJ-50mm

Part Number: 3JAW50-XIAOJ-HU

Package Dimensions: 7.9 x 5.5 x 4.3 inches
