MakerFocus GT-U7 NEO-6M 51 STM32 R3 GPS Module Satellite Navigation Positioning GPS Receiver Drone Microcontroller

MakerFocus GT-U7 GPS Module Satellite Navigation Positioning GPS Receiver Drone Microcontroller Compatible with NEO-6M 51 Microcontroller STM32 Arduino UNO R3

MakerFocus GT-U7 NEO-6M 51 STM32 R3 GPS Module Satellite Navigation Positioning GPS Receiver Drone Microcontroller

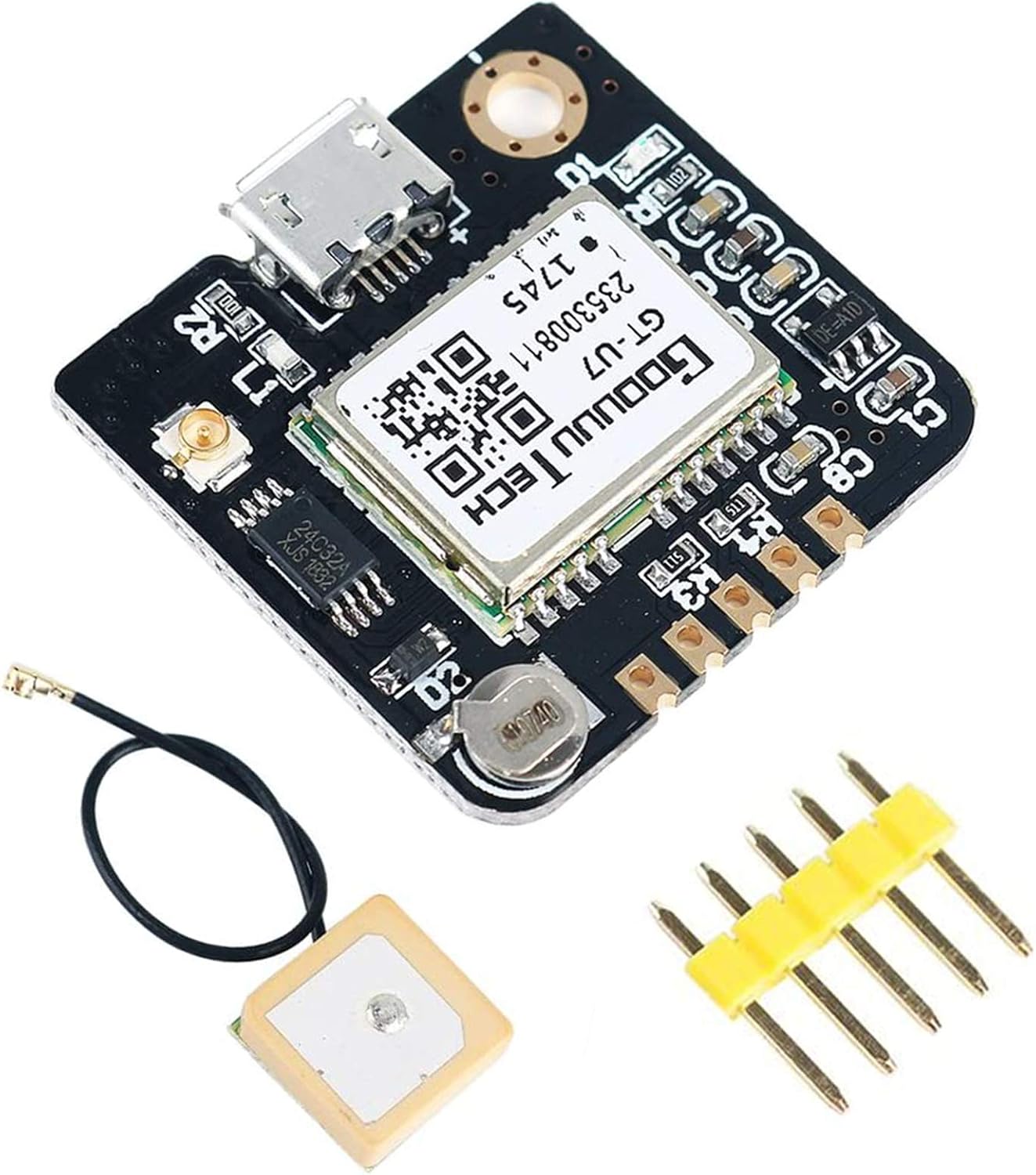

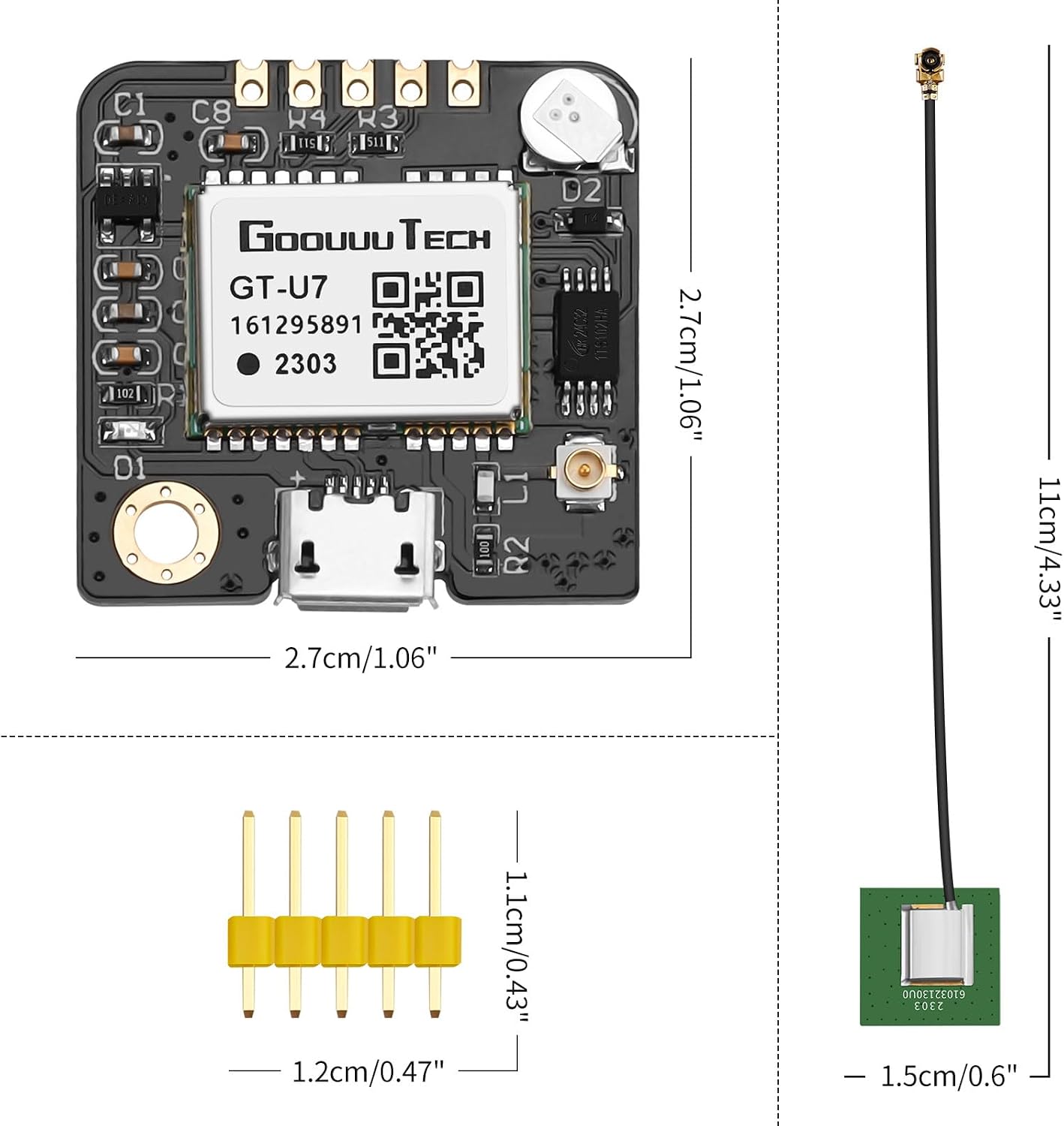

Description: GT-U7 main module GPS module using the original 7th generation chip, Software is compatible with NEO-6M. With a USB interface, you can directly use the phone data cable on the computer point of view positioning effect.USB directly connected to the computer, That is, with the host computer-owned serial port function, no need for external serial module, send IPX interface active antenna! Features: GT-U7 module, with high sensitivity, low power consumption. Miniaturization, its extremely high tracking sensitivity greatly expanded its positioning of the coverage. In the ordinary GPS receiver module can not locate the place, such as narrow urban sky, dense jungle environment, GT-U7 can be high-precision positioning. Module with high sensitivity, small static drift, low power and lightweight volume. Specification: Operating voltage: 3.6V-5V (or direct usb power supply) Operating baud rate: 9600 (can be modified) Onboard E2PROM can save parameter data NEMA output format is compatible with NEO-6M Size: 27.6mm * 26.6mm can be inserted or selected patch (with positioning holes) Application Areas: Vehicle-mounted Handheld devices such as PDAs Vehicle monitoring Mobile phones, camcorders and other mobile positioning systems Sharing bike Sharing mobile power Packing List: 1 * GT-U7 GPS Module 1 * IPX antenna

Brand: MakerFocus

receiver, compatible neo, gps system, navigation, neo microcontroller, drone microcontroller, positioning, accessories gps, finders accessories, finders, arduino uno, neo Electronics GPS, Finders & Accessories GPS System Accessories Antennas

Key Features

• ✓ How to use the GPS module better, the link is obtained in the Product guides and documents, please download it before use
• ✓ GT-U7 main module GPS module using the original UBLOX 7th generation chip, Software is compatible with NEO-6M. GT-U7 module, with high sensitivity, low power consumption, miniaturization, its extremely high tracking sensitivity greatly expanded its positioning of the coverage

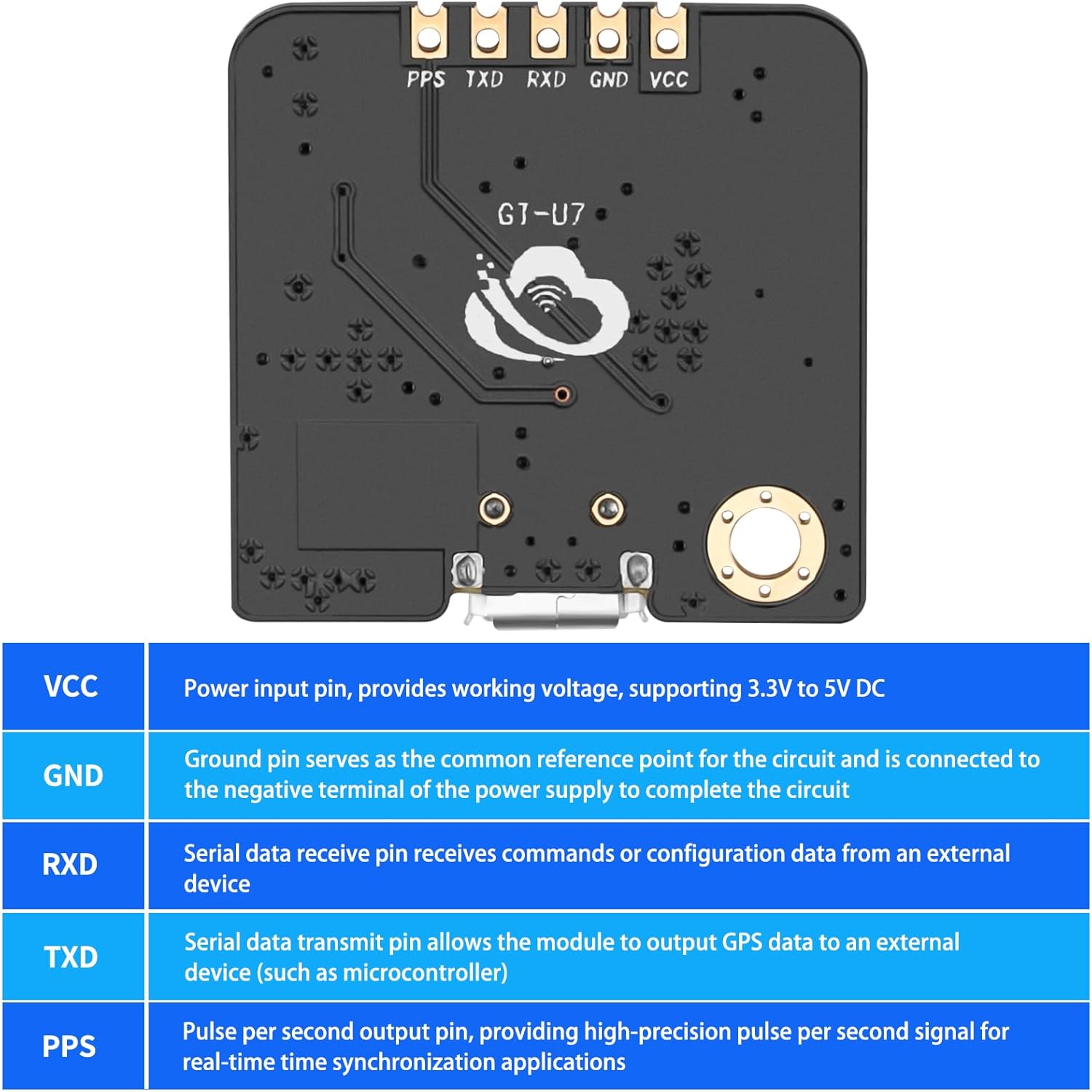

• ✓ GPS baud needs to be set to 9600 instead of 4800; PPS pin is not needed unless using the GPS to drive a hardware high precision clock
• ✓ With a USB interface, you can directly use the phone data cable on the computer point of view positioning effect
• ✓ USB directly connected to the computer, That is, with the host computer-owned serial port function, no need for external serial module, send IPX interface active antenna
• ✓ Note: Please use the GT-U7 GPS module in an open place, the LED will flash after the satellite signal is found. Bad weather and indoor use will affect the accuracy of positioning

Product Details

• ✓ Item Weight: 5.8 Grams
• ✓ Model Number: SN12SF83QOH11452IC
