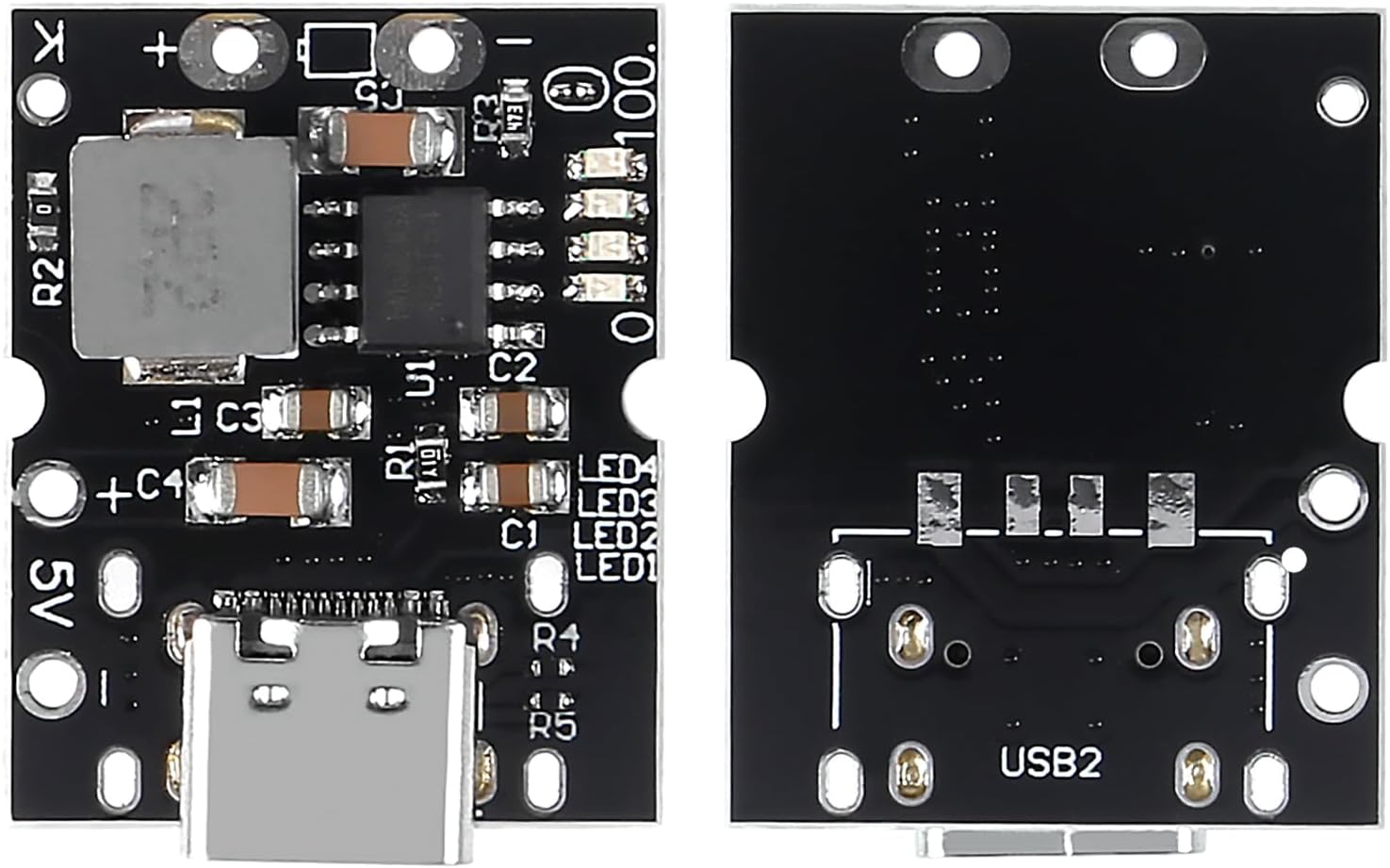

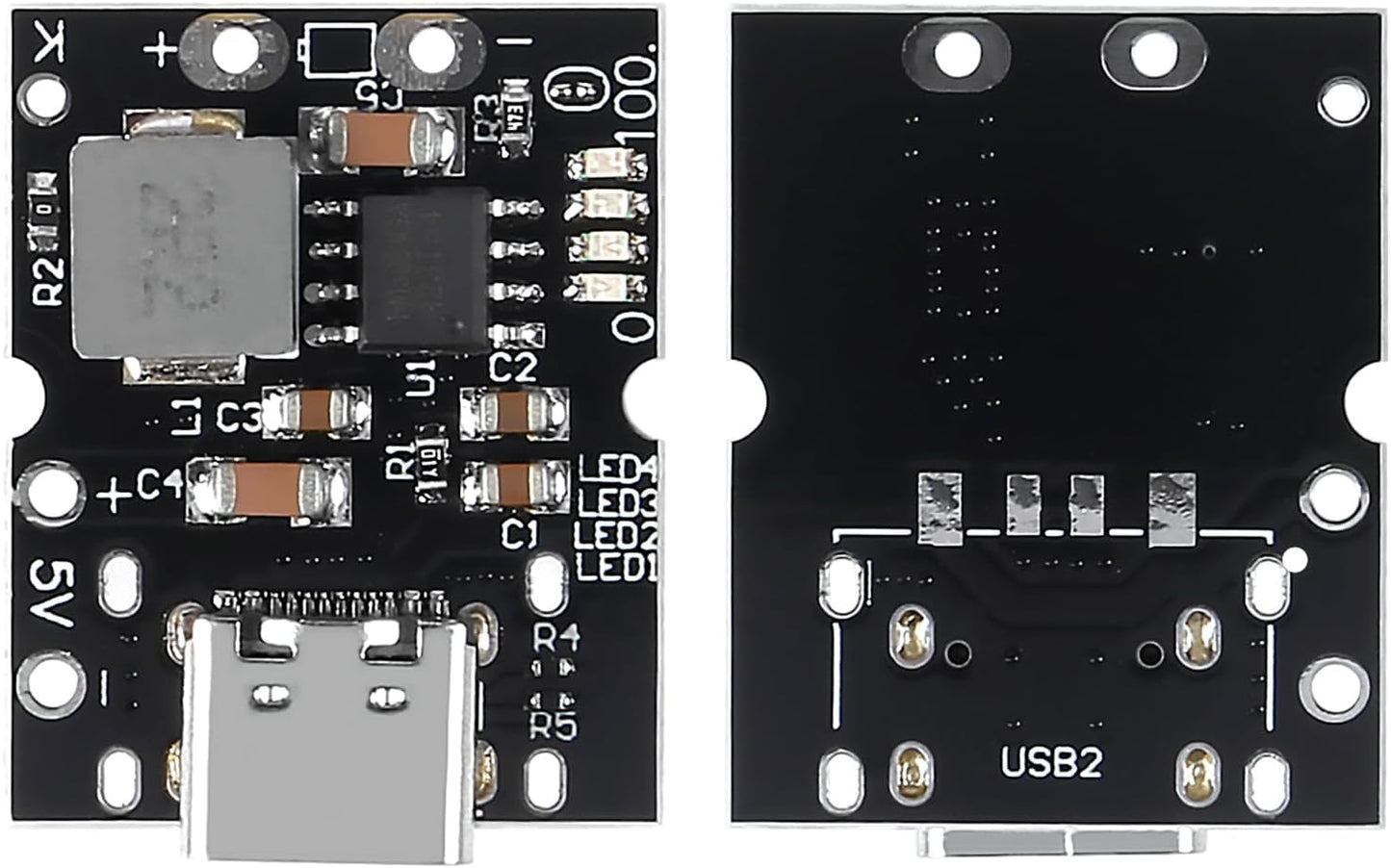

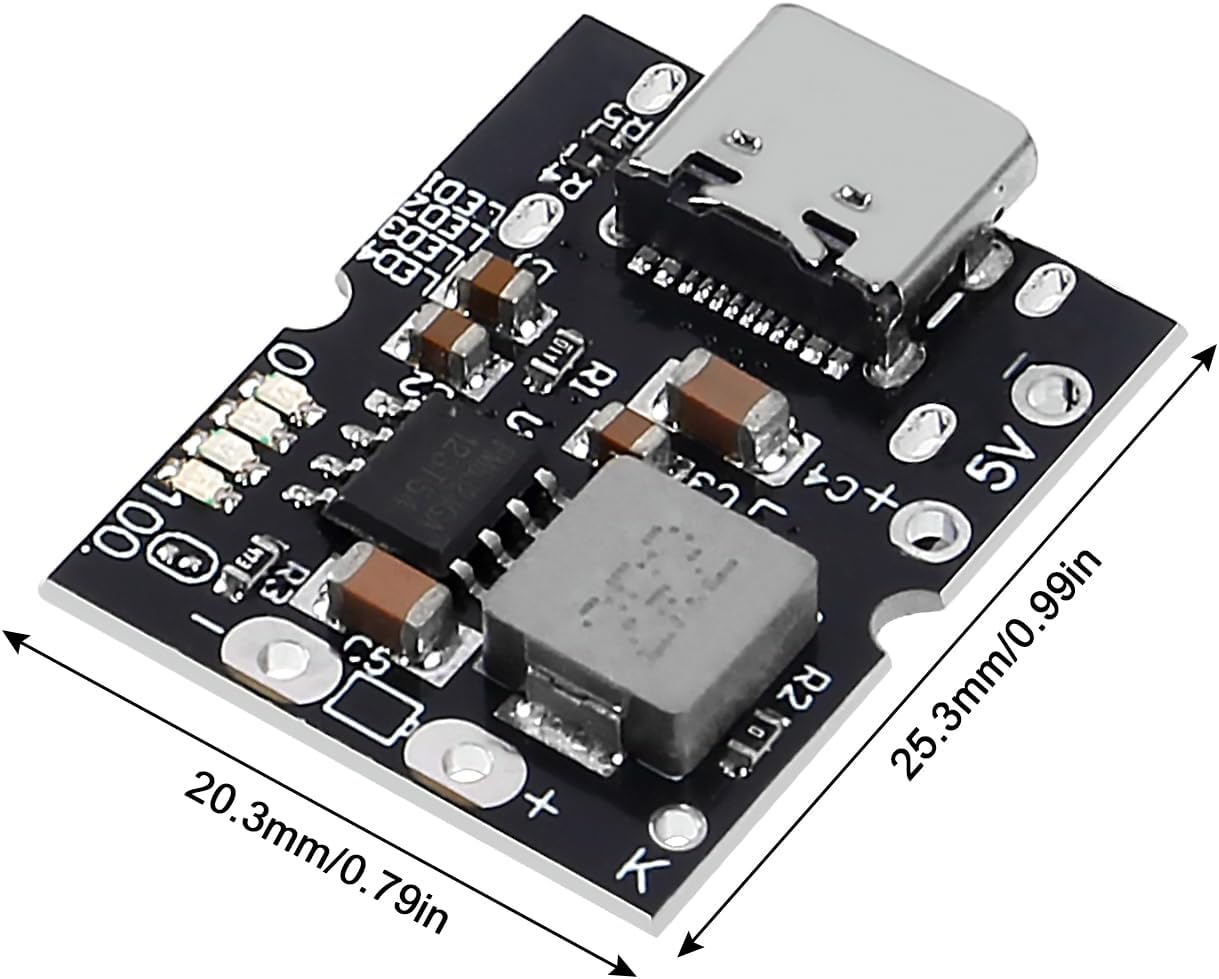

JUZITAO 12PCS 5V 2A Type-C USB Step-Up Power Module Boost Converter Lithium Battery Charging Protection Board with LED

Name: JUZITAO 12PCS 5V 2A Type-C USB Step-Up Power Module Boost Converter Lithium Battery Charging Protection Board with LED
Brand: JUZITAO
SKU: TGABL2553495
Price: 16.45 USD
Availability: InStock

$16.45 USD

~~$19.09 USD~~ $16.45 USD

Sale Sold out

Shipping calculated at checkout.

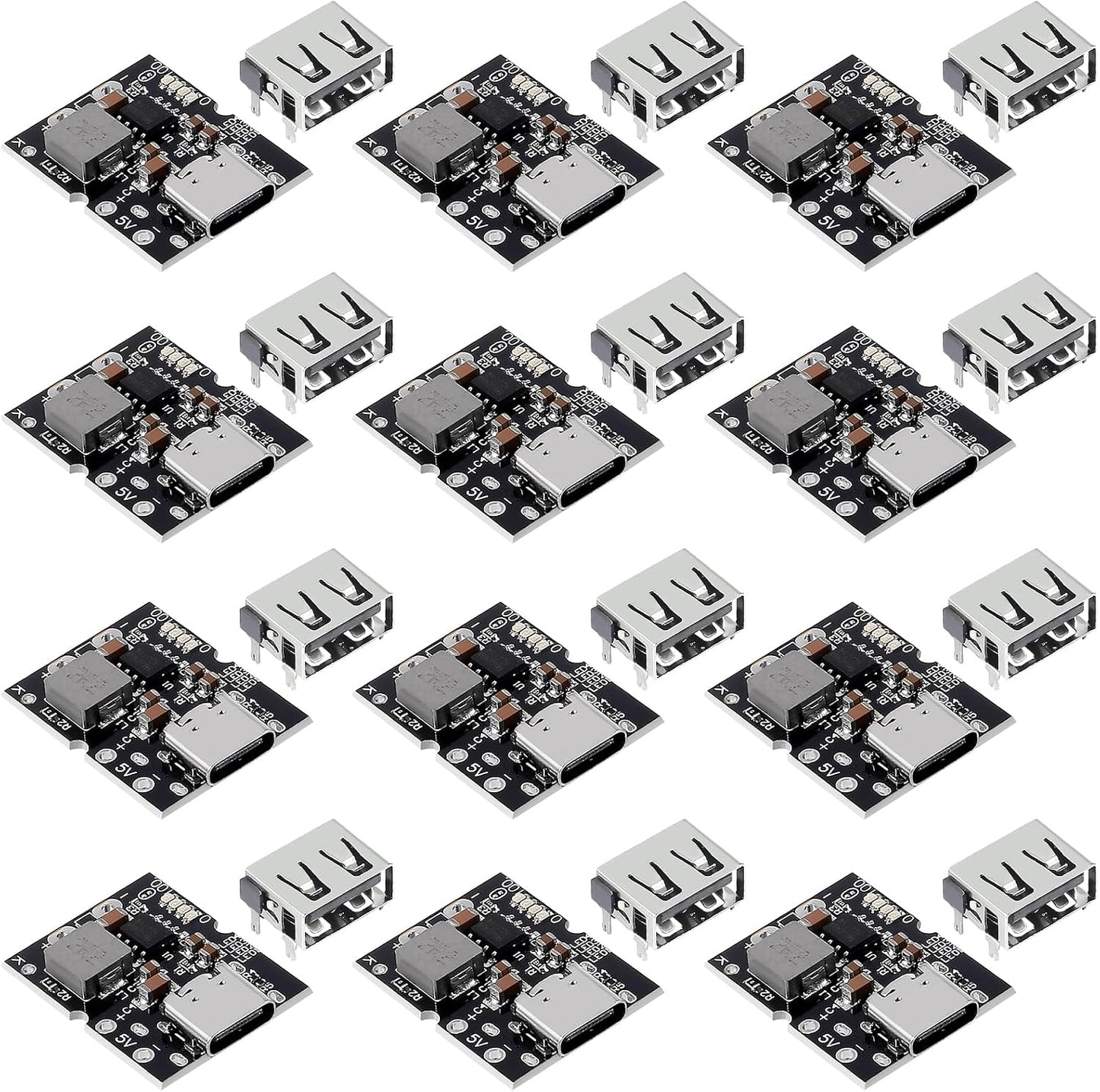

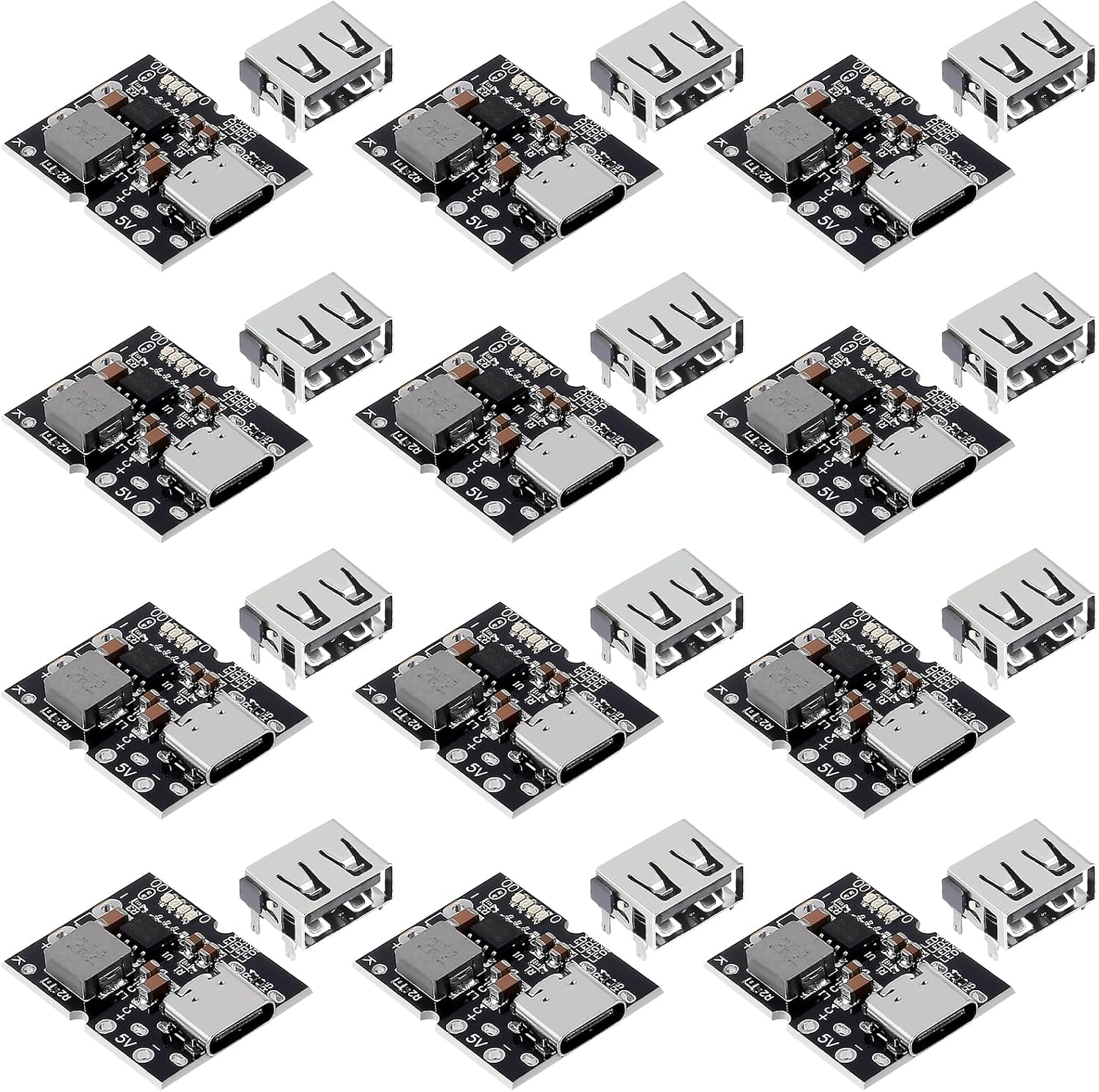

12PCS Type-C USB 5V 2A Step-Up Power Module Boost Converter Lithium Battery Charging Protection Board with LED Indicator(Not Welded)

JUZITAO 12PCS 5V 2A Type-C USB Step-Up Power Module Boost Converter Lithium Battery Charging Protection Board with LED

Brand: JUZITAO

board led, welded electronics, board, type usb, step, lithium battery, not welded, converters, converter, led indicator, indicator, converter lithium Electronics Power Accessories Power Converters

Key Features

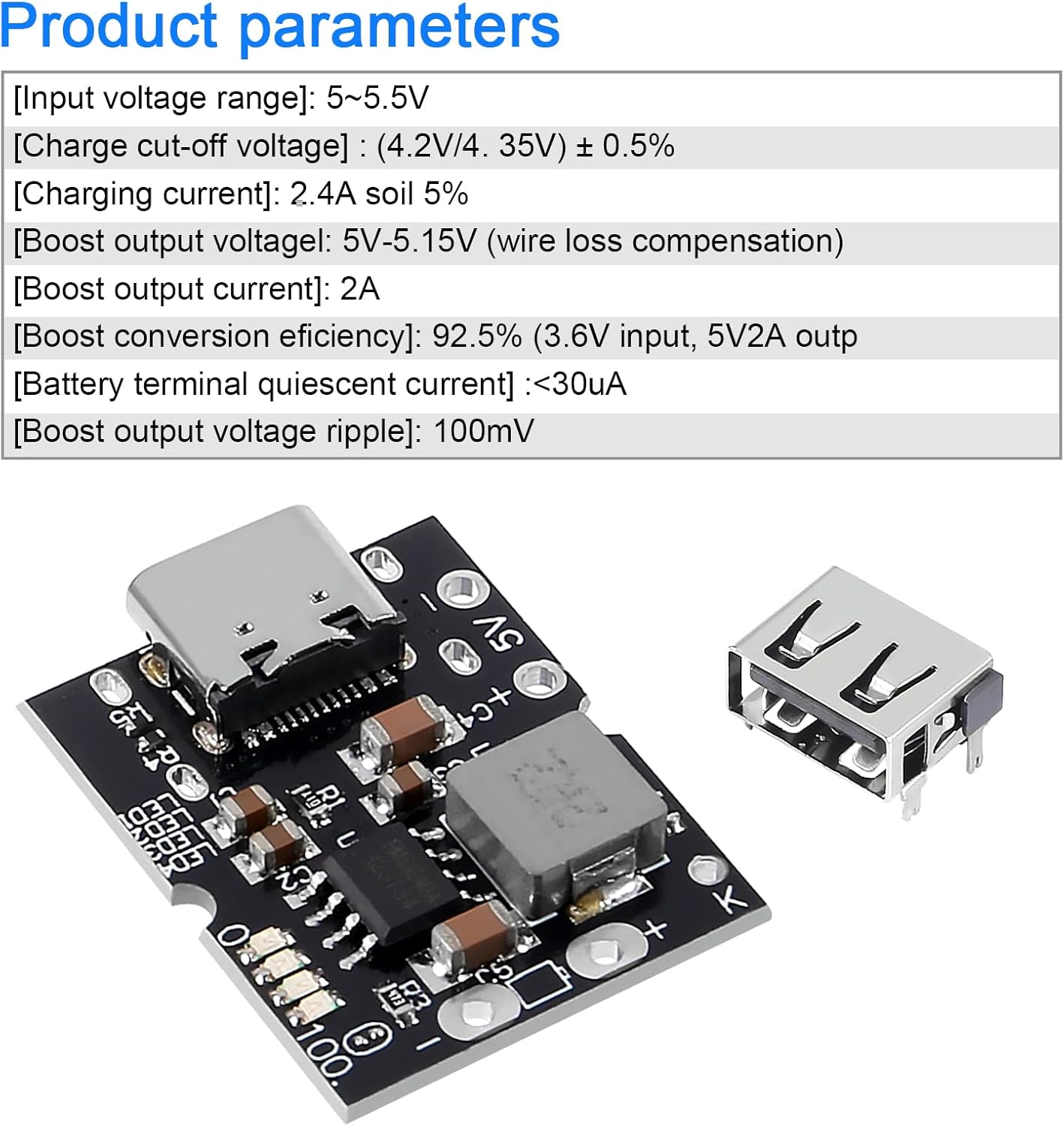

✓ Input voltage range: 5 ~ 5.5V; Charging cut-off voltage: (4.2v/4.35v) 0.5%; Charging current: 2.4A 5%; Boost output voltage: 5V ~ 5.15v (line loss compensation); Boost output voltage ripple: 100mV; Boost output current: 2A.

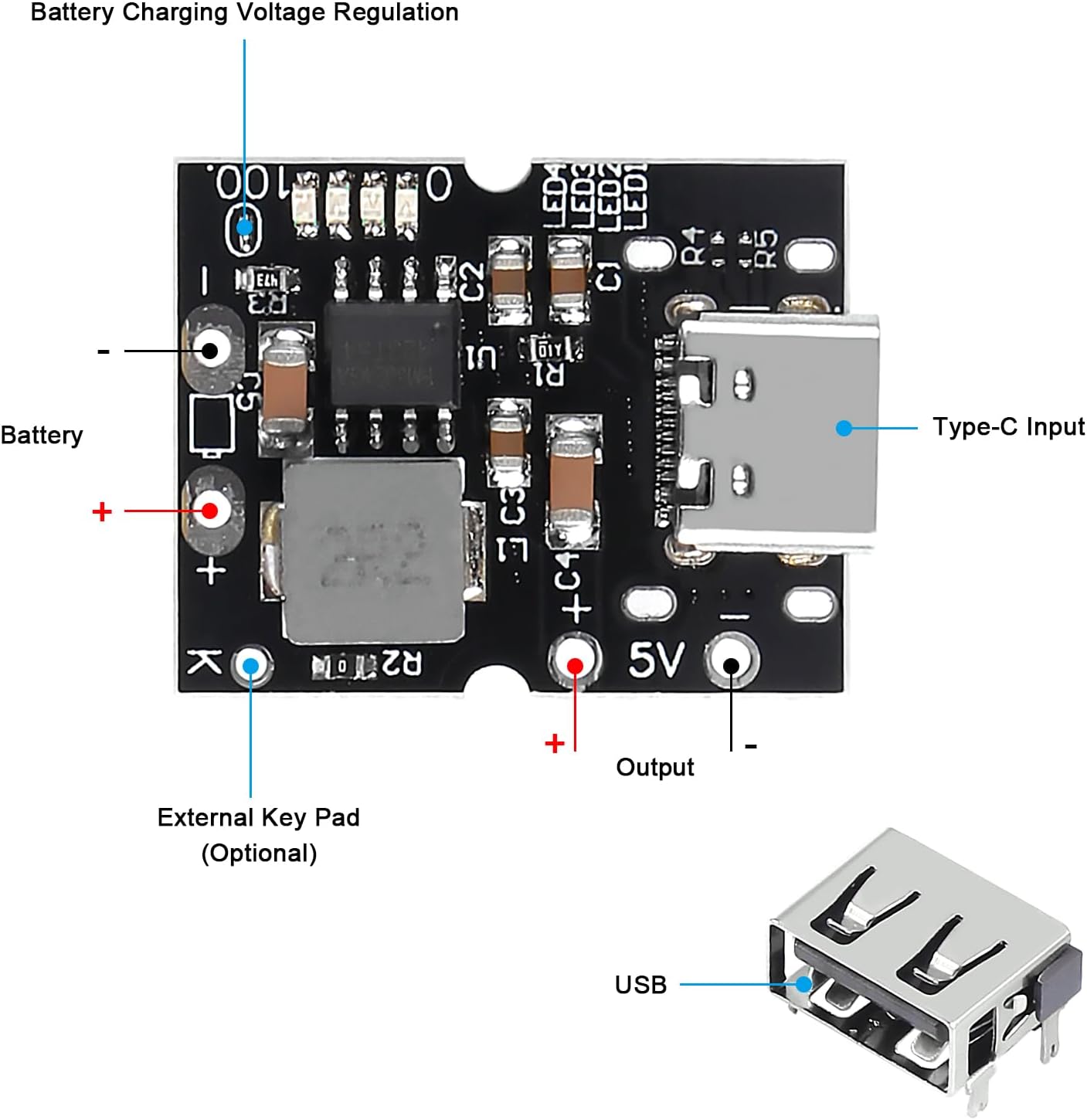

✓ The boost converter supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
✓ When the load current is less than 50mA continuously, the output will be turned off.When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
✓ When the battery voltage drops below 4.1V, the charging cycle starts again.When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

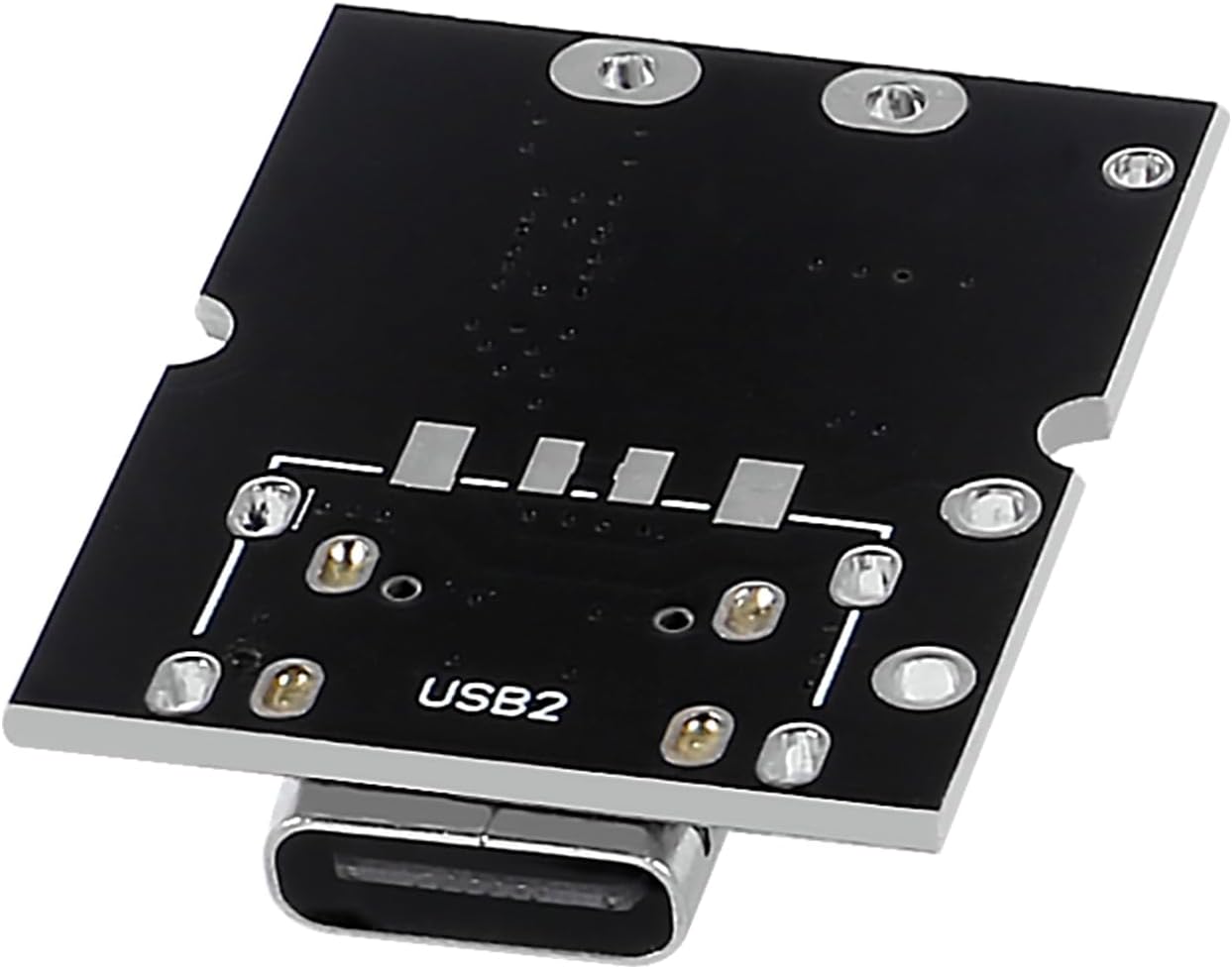

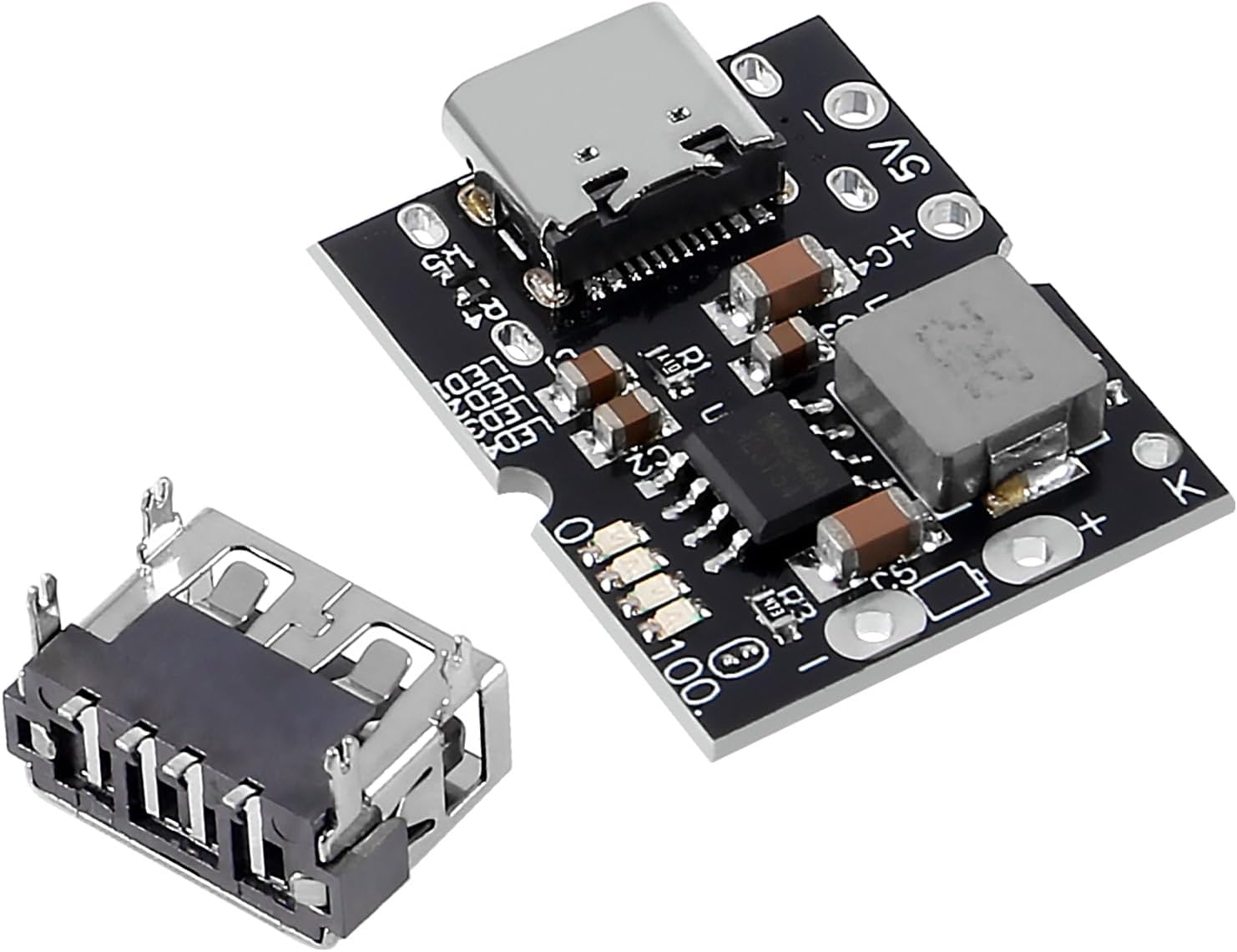

✓ It supports discharging while charging. The usb-a base weldingposition is provided on the back of the product, which can be installed manually.
