JESSINIE 1.3" 128x64 SH1107 OLED Display Screen, Vertical LCD, Driver, SPI/IIC Interface White

1.3' OLED Display Screen, 128x64 Vertical LCD, SH1107 Driver, SPI/IIC Interface White

JESSINIE 1.3' 128x64 SH1107 OLED Display Screen, Vertical LCD, Driver, SPI/IIC Interface White

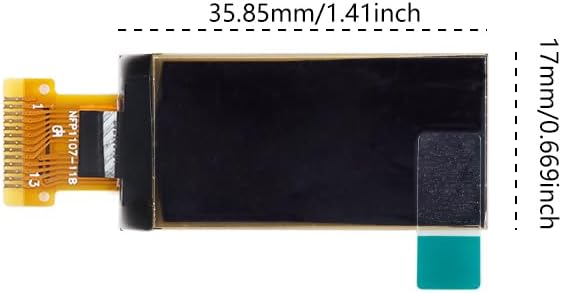

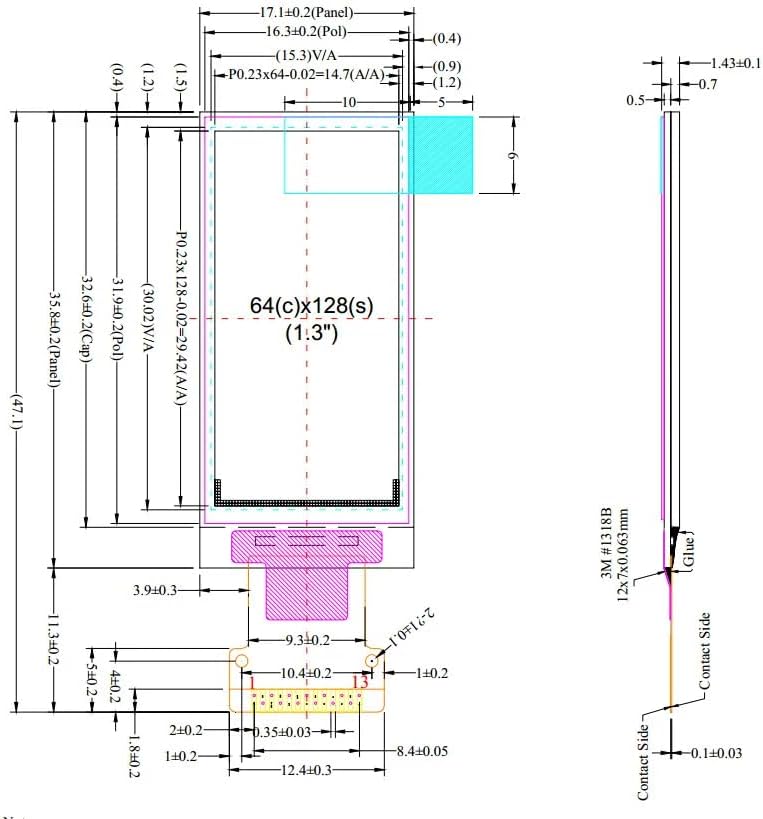

Description Report Item Size: 1.3 inch Active Area: 14.7*29.42 mm Module Size: 17.1*35.8*1.43 mm Resolution: 64*128 (vertical screen) Drive IC: SH1107 Color: White Material: OLED Autonomous luminescence Interface: 4-Wire SPI Interface, IIC Interface PIN NO.: 13Pin Voltage: 3.3V Working Temp.: -40 ~ 70 degree Pin Symbol 1 NC 2 VPP 3 VCOMH 4 VDD 5 IM1 6 IREF 7 CS 8 RES 9 DC 10 D0 11 D1 12 VSS 13 NC

Brand: JESSINIE

vertical lcd, computers, 128x64 vertical, 128x64, vertical, iic, spi iic, sh1107, display screen, computer, oled, accessories Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✅ **Compact 1.3' OLED Display:** Featuring a clear 128x64 vertical resolution, this display is perfect for compact projects requiring high-contrast visuals. Ideal for wearables and portable devices.
• ✅ **Versatile Interface Options:** Easily integrate with your project using 4-Wire SPI or IIC interfaces, providing flexibility for various microcontroller setups.
• ✅ **Superior OLED Technology:** Enjoy the benefits of OLED's autonomous luminescence, offering energy efficiency and exceptional image quality with crisp, white monochrome display.
• ✅ **Wide Operating Range:** Designed to perform in extreme conditions, this display operates reliably between -40C and 70C, making it suitable for both indoor and outdoor applications.
• ✅ **User-Friendly Integration:** With a straightforward 13-pin setup, including essential connections like VDD, CS, and RES, this module simplifies the development process for hobbyists and professionals alike.
