Haldzemo 1.3 inch I2C 128x64 H1106 12864 (2 Pack, OLED Display Module IIC LCD Screen S Compatible Arduino Blue)

1.3 inch OLED Display Module I2C IIC 128x64 LCD Screen S H1106 12864 Compatible Arduino (2 Pack, Blue)

Haldzemo 1.3 inch I2C 128x64 H1106 12864 (2 Pack, OLED Display Module IIC LCD Screen S Compatible Arduino Blue)

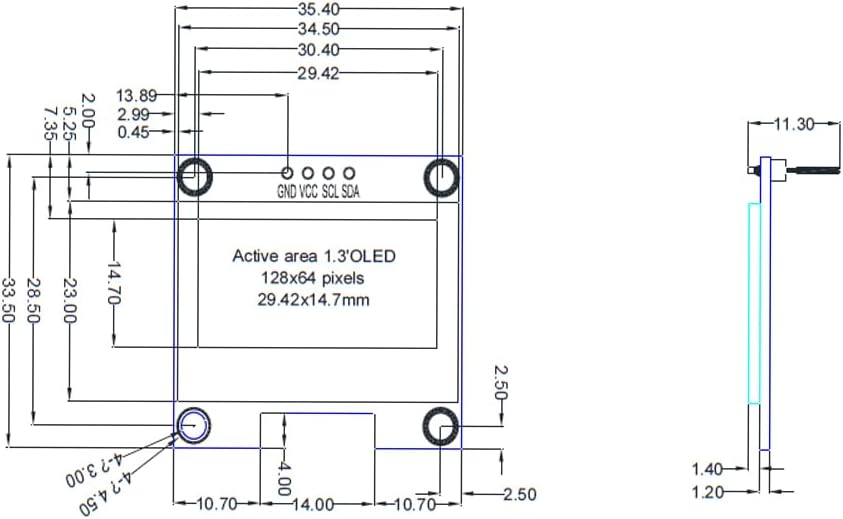

Specifications: Screen size: 1.3 inch Number of Pixels: 128 64 PCB size: 35.433.5mm Active area: 29.4214.7mm Pixel pitch: 0.230.23mm Pixel size: 0.210.21mm Viewing angle: > 160 Display color: Blue Driver IC: S H1106 Interface type: IIC interface Operating voltage: 3.3V~5.0V Number of Pins: 4Pin Operating temperature: -40 ~ 70 celsius degree Pin Interface: GND: Power Ground (GND) VCC: Power + (DC 3.3 - 5V) SCL: Clock line (UNO A5) SDA: Data line (UNO A4)

Brand: Haldzemo

module i2c, h1106 12864, i2c iic, haldzemo, computers accessories, blue, 128x64 lcd, pack blue, accessories computer, lcd screen, i2c, 128x64 Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ 1.3' OLED screen module 128*64 resolution, panel size: 35.433.5mm, Interface type: IIC interface

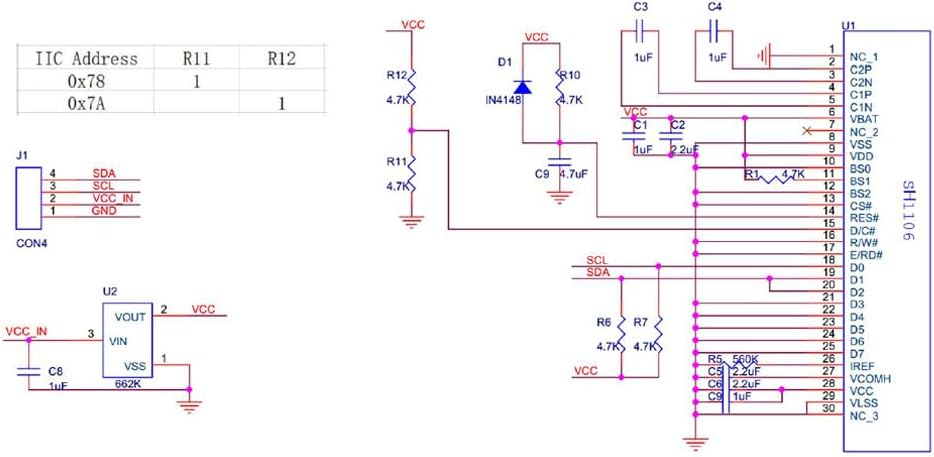

• ✓ The I2C default address is 0x3C(on the back it says 0x78) (selectable to 0x7A by re-soldering a resistor)
• ✓ 1.3inch OLED self-luminous, no backlight. The main chip is S H1106, supports DC 3.3V to 5.0V

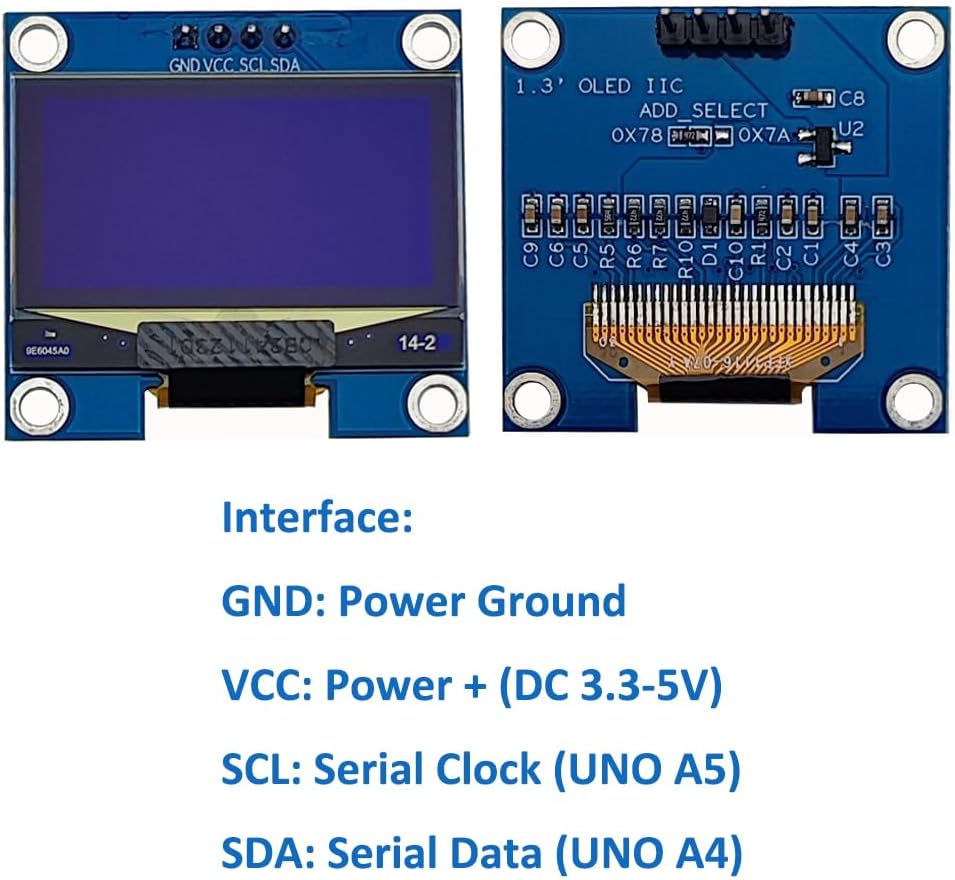

• ✓ 4pin Interface: GND: Ground, VCC: DC 3.3-5V, SCL: Serial Clock, SDA: Serial Data
• ✓ Compatible Arduino Raspberry Pi ESP8266 ESP32
