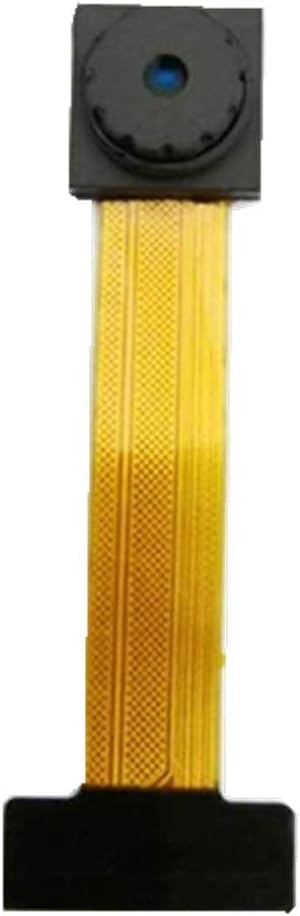

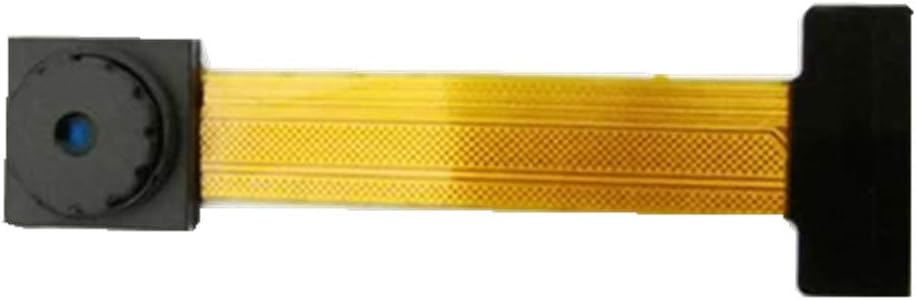

ESP32 OV2640 4 CM OV2640 2 24 Taidacent Cam Camera Module MINI Megapixel DVP Pin Interface YUV RGB JPEG Camera Breakout

Taidacent ESP32 Cam OV2640 4 CM OV2640 Camera Module MINI 2 Megapixel DVP 24 Pin Interface YUV RGB JPEG Camera Breakout

ESP32 OV2640 4 CM OV2640 2 24 Taidacent Cam Camera Module MINI Megapixel DVP Pin Interface YUV RGB JPEG Camera Breakout

The 0V2640 is a low voltage CMOS image sensor that provides the full functionality of a single-chip UXGA (1 632x1232) camera and image processor in a small footprint package. The OV2640 provides ful-frame, sub-sampled, scaled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This product has an image array capable of operating at up to 15 frames per second (fps) in UXGA resolution with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturationhue control, white pixel canceling noise cancelingand more, are also programmable through the SCCB interface. The OV2640 also includes a compression engine for_ increased processing power. In addition, it use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable color image.

Brand: Taidacent

megapixel, computers accessories, accessories computer, esp32 cam, taidacent, camera module, cam, computer, pin interface, breakout electronics, taidacent esp32, megapixel dvp Electronics Computers & Accessories Computer Accessories & Peripherals Audio & Video Accessories Webcams & VoIP Equipment

Key Features

• ✓ Pixel 2MP
• ✓ Lens 66 degree

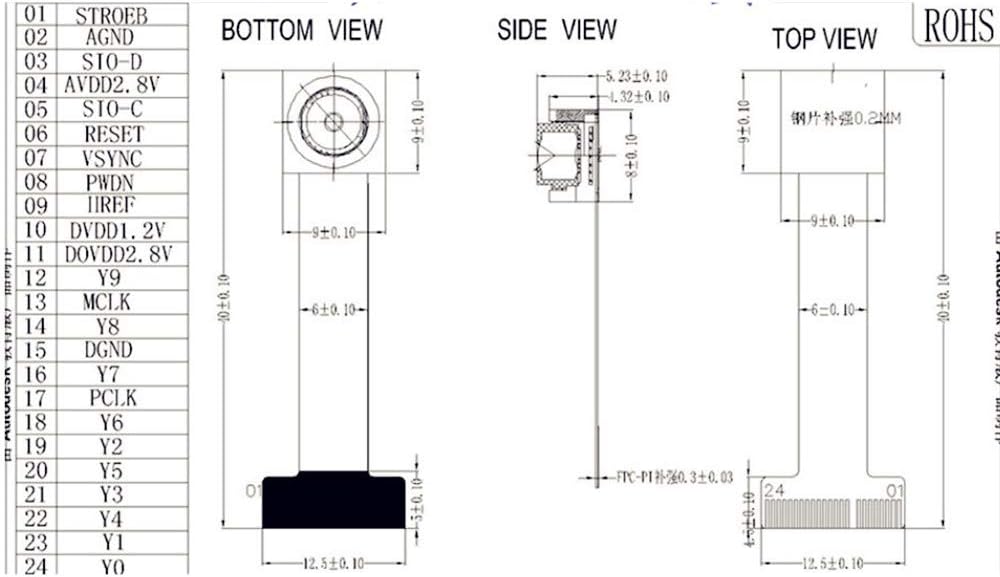

• ✓ Pins 24p
• ✓ FPC cable length 4cm

Product Details

• ✓ Package Dimensions: 3.98 x 2.56 x 0.59 inches
• ✓ Item Weight: 0.176 ounces
