EPLZON 5 Pack 1.3 inch 128x64 OLED IIC Display Module Pixel Mini Self-Luminous Display Screen Board for Arduino

5 Pack 1.3 inch OLED IIC Display Module 128x64 Pixel Mini Self-Luminous Display Screen Board for Arduino Projects Raspberry Pi with Wire(White)

EPLZON 5 Pack 1.3 inch 128x64 OLED IIC Display Module Pixel Mini Self-Luminous Display Screen Board for Arduino

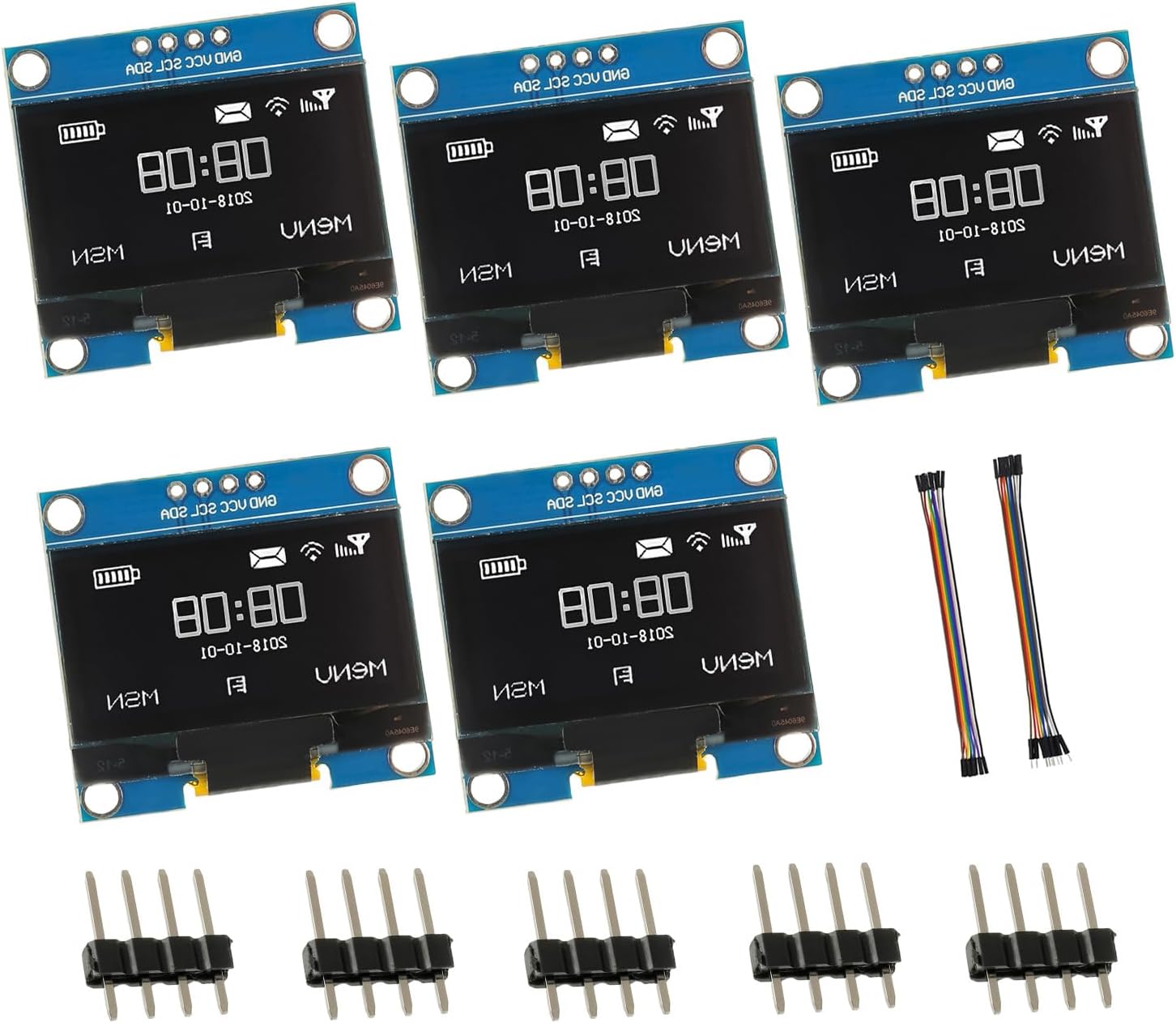

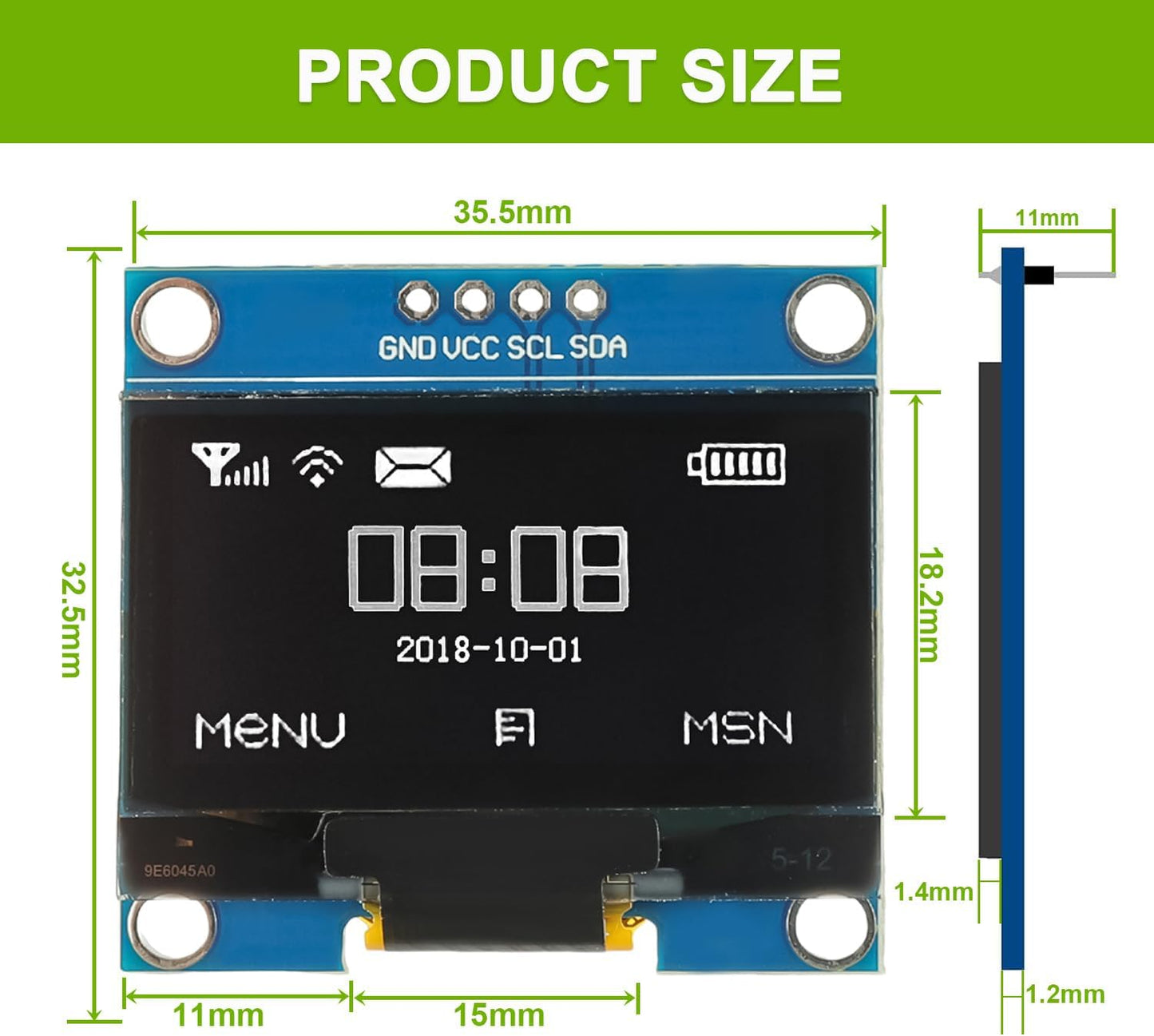

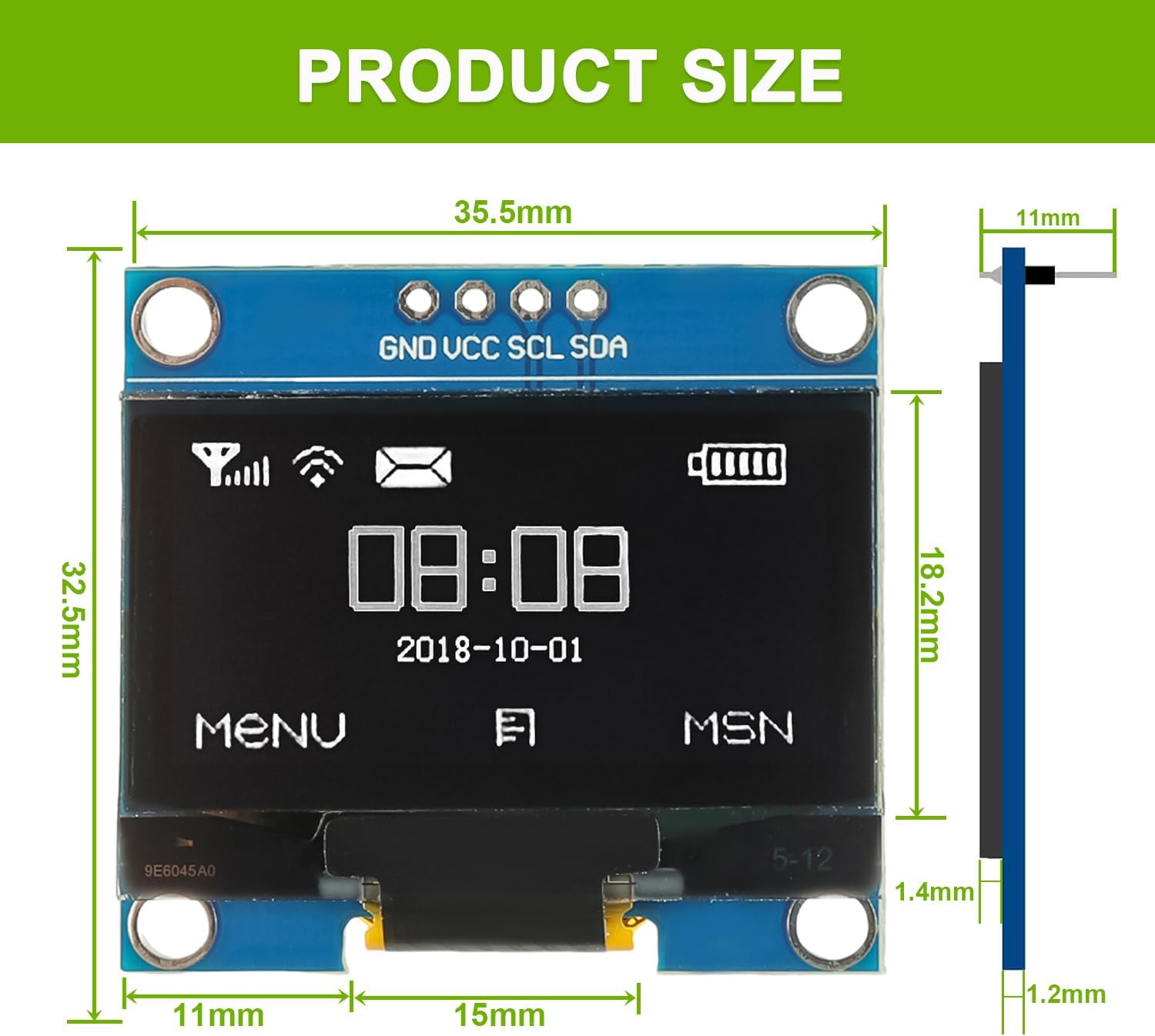

EPLZON 1.3 inch OLED IIC Display Module 128x64 Pixel Mini Self-Luminous Display Screen Board Applications: MP3, MP4, watch,Head-mounted displays,Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices Specifications: Module interface:IIC,4PIN Effective display area:29.4x14.7(mm) Module size:33.7x35.5(mm) Field of View:>160 Pin Definition:GND,VCC,SCL,SDA Voltage:3.3 V ~ 5V DC Working Temperature:-20~60 degree High Resolution:128 x 64 Pixels Driver IC:SH1106 Displya Display Type: OLED (Organic Light Emitting Diode Energy Consumption (Normally): 0.06W Working Temperature: -20C to 60C Drive Duty: 1/64 Duty Package include: 5PCS * 1.3 Inch Disyplay Module 10PCS* Female to Female Dupont Wire 10PCS* Male to Female Dupont Wire

Brand: EPLZON

pack inch, module 128x64, raspberry wire, wire, computers accessories, board, board arduino, accessories computer, 128x64, screen board, inch oled, mini self Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Size: 1.3 inches, Resolution: 128 x 64;Viewing angle:>160;Supported voltage: 3.3V-5V DC,no need for level conversion chips;Power consumption during normal operation: 0.06W;Full screen illumination: 0.08W;Color:White

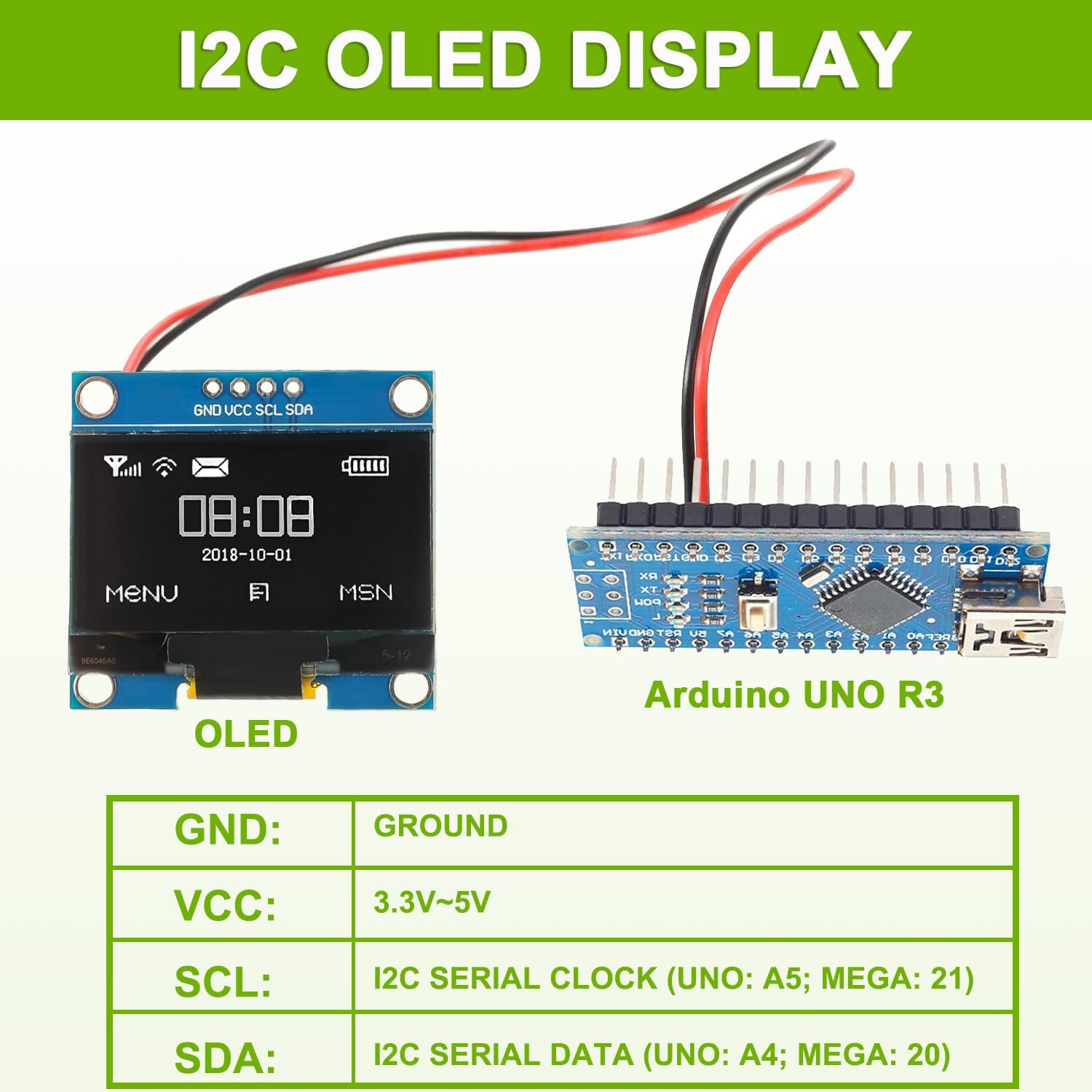

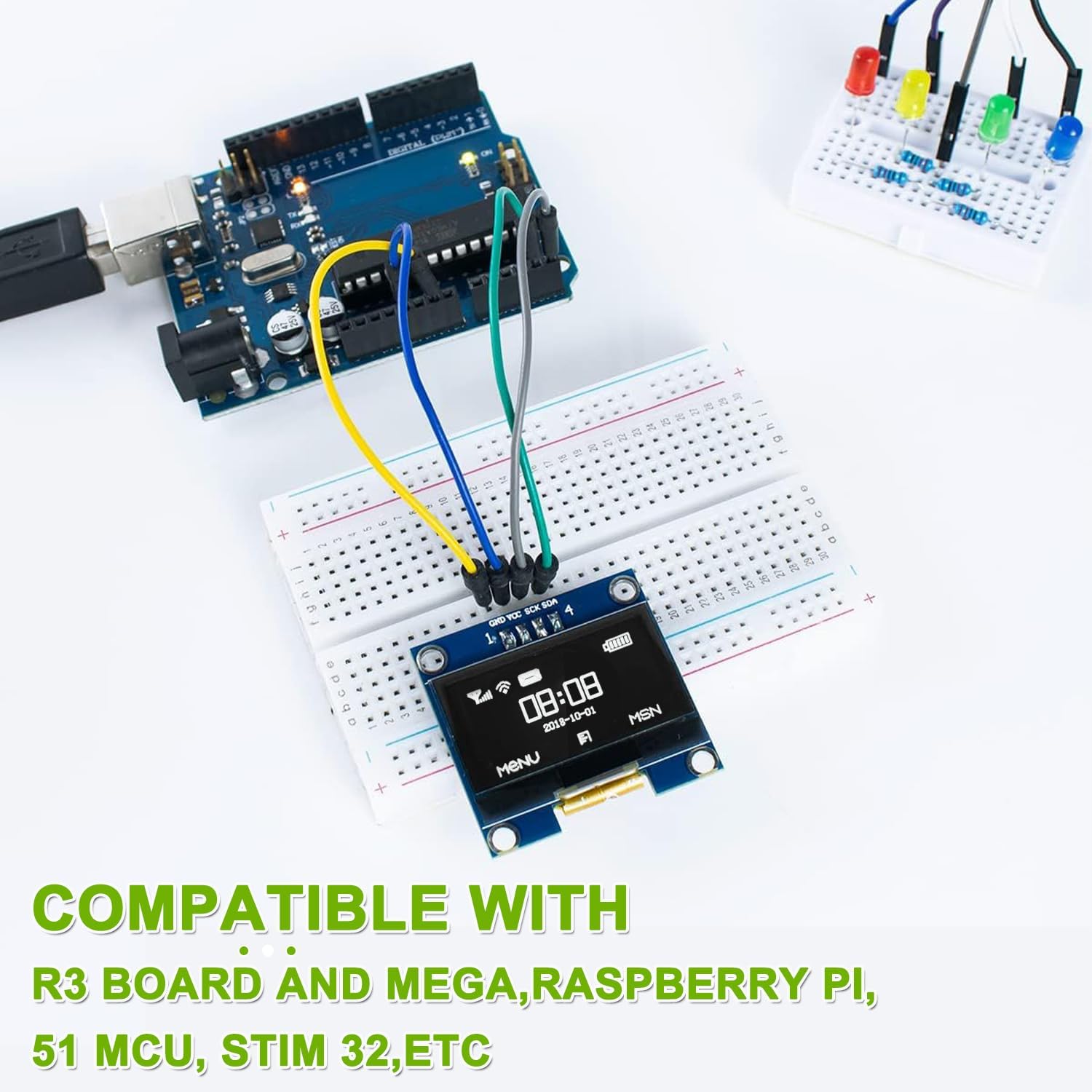

• ✓ Embedded driver IC: SH1106;Communication: I2C/IC interface, only requires two I/O ports, compatible with R3 board and Arduino Mega, Raspberry Pi, 51 MCU, STIM 32, MMDVM, Pi Star, etc

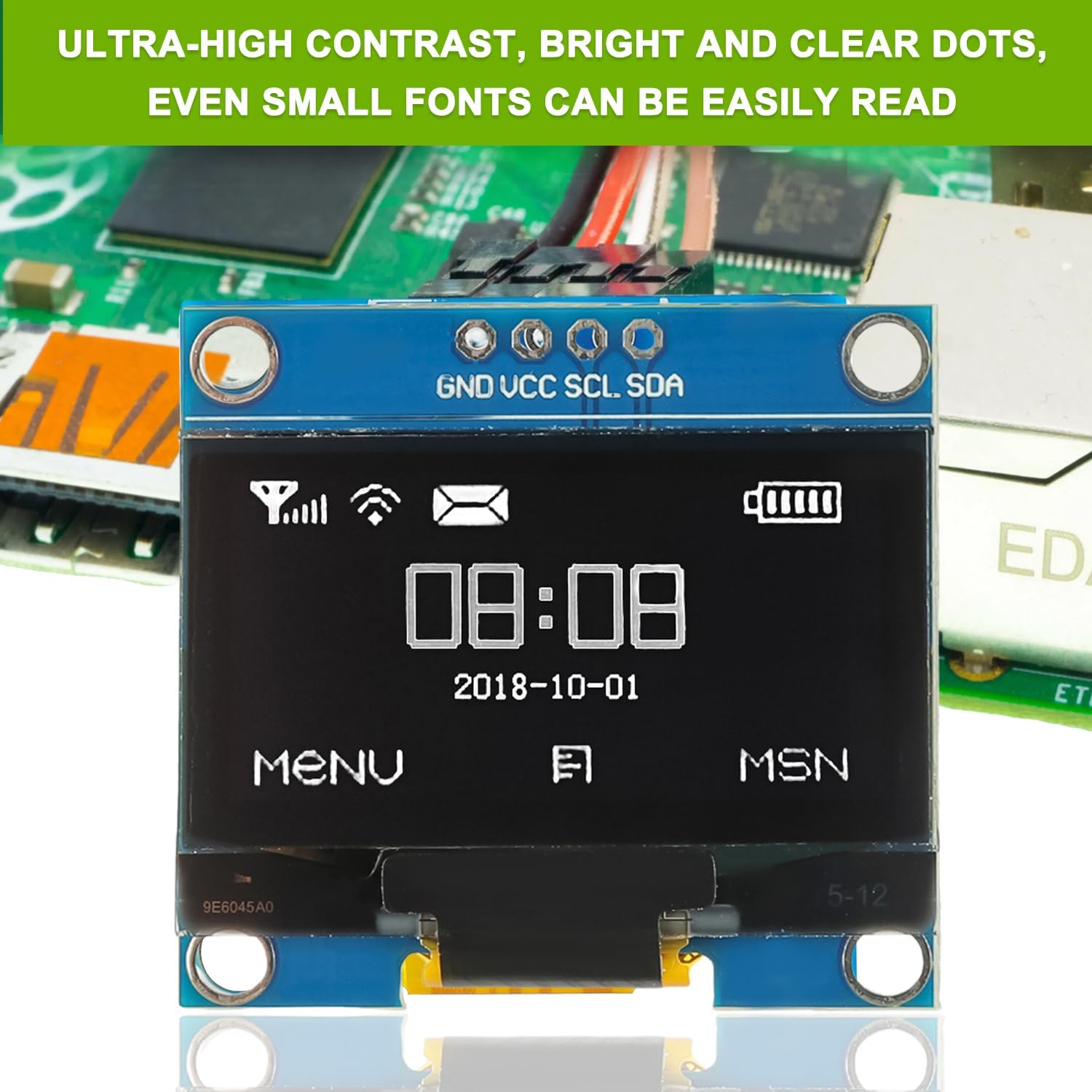

• ✓ No backlight required, each pixel emits light independently. It has ultra-high contrast, high resolution, bright and clear dots, making it easy to read even in small fonts
• ✓ Graphics and text information can be directly displayed on microcontroller projects, and OLED controllers do not have embedded fonts. Users can create fonts through font generation software
• ✓ Equipped with 20 DuPont wires (10 male-female and 10 female) to increase convenience

Product Details

• ✓ Model Number: EP-1.3in-White
