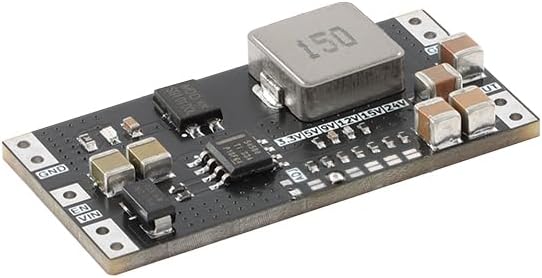

EC Buying 2Pcs TPS54560 60V 5V, 5A Step-Down Switching Power Supply Module, Low Ripple DC-DC, High Voltage to High

2Pcs TPS54560 Step-Down Switching Power Supply Module, Low Ripple DC-DC, High Voltage 60V to 5V, 5A High Current

EC Buying 2Pcs TPS54560 60V 5V, 5A Step-Down Switching Power Supply Module, Low Ripple DC-DC, High Voltage to High

Key Features: - Stable and Reliable: Utilizes the TPS54X60 dedicated chip for efficient voltage reduction, ensuring low output ripple and stable performance. - Wide Input Voltage Range: Supports input voltages from 5.5V to 60V, making it suitable for a variety of applications. - Multiple Output Options: Available in 3.3V, 5V, 9V, 12V, 15V, and 24V versions, with adjustable output options. - High Output Current: Capable of delivering up to 5A of output current, ideal for high-power applications. - Compact Design: Small form factor (40.0 x 20.0 x 5.5 mm) with large solder pads for easy integration into your projects. Technical Specifications: - Module Type: Step-down switch power supply - Input Voltage: DC 5.5-60V - Output Voltage: DC 3.3/5/9/12/15/24V (adjustable) - Output Current: 5A (maximum) - Input/Output Voltage Difference: Greater than 2V - Static Current: 1mA - Output Ripple: Better than 25mV (Vin=12V, Vout=5V5A; higher output power increases ripple) - Conversion Efficiency: 90% (Vin=12V, Vout=5V1A; higher output power decreases efficiency) - Switching Frequency: 600KHZ - Operating Temperature: -25C to 125C - Output Adjustment: Jumper pad selection for 3.3V, 5V, 9V, 12V, 15V, 24V - Module Interface: Large area solder pads (compatible with 2.54mm pin arrangement) Pin Configuration: - VIN: Power input positive pole (5.5-60V) - GND: Input/output negative pole (shared) - VOUT: Power output positive pole (3.3/5/9/12/15/24V/adjustable) - EN: Enable pin (high level or floating to enable, low level to disable) Applications: - Power Supply for Electronics Projects: Ideal for powering microcontrollers, sensors, and other electronic components. - LED Lighting: Suitable for driving LED strips and other lighting applications. - Automotive Applications: Can be used in automotive electronics where a wide input voltage range is required.

Brand: EC Buying

tps54560, step down, low ripple, low, switching, high, step, 2pcs, converters, power supply, voltage 60v, electronics Electronics Power Accessories Power Converters

Key Features

• ✓ Efficient and Reliable Power Conversion: The TPS54560 step-down switching power supply module ensures stable performance with low ripple, making it ideal for high-precision electronics projects that require a 5V output
• ✓ Wide Input Voltage Range: This DC-DC high voltage 60V step-down module supports input voltages from 5.5V to 60V, providing flexibility for a variety of applications, including automotive and industrial settings
• ✓ High Output Current Capability: Delivering up to 5A of high current, the TPS54560 module is perfect for powering demanding devices such as LED lighting and high-power microcontrollers, ensuring reliable operation

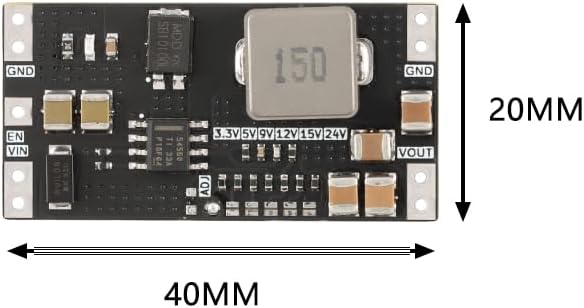

• ✓ Compact and Easy to Integrate: With a small form factor (40.0 x 20.0 x 5.5 mm) and large solder pads, this step-down switching power supply module is easy to integrate into your projects, offering both convenience and versatility
• ✓ Adjustable Output Voltages: Choose from multiple fixed output voltages (3.3V, 5V, 9V, 12V, 15V, 24V) or adjust to your specific needs, making the TPS54560 module a versatile solution for various power requirements.
