D-FLIFE 2.08" SH1122 256x64 2.08 Inch 256 64 7 4 16 OLED Display Module * OLED LCD Display SPI Pin Wires Supports

2.08' SH1122 256x64 OLED Display Module 2.08 Inch 256 * 64 OLED LCD Display SPI 7 Pin 4 Wires Supports 16 Levels of Crayscale -White

D-FLIFE 2.08' SH1122 256x64 2.08 Inch 256 64 7 4 16 OLED Display Module * OLED LCD Display SPI Pin Wires Supports

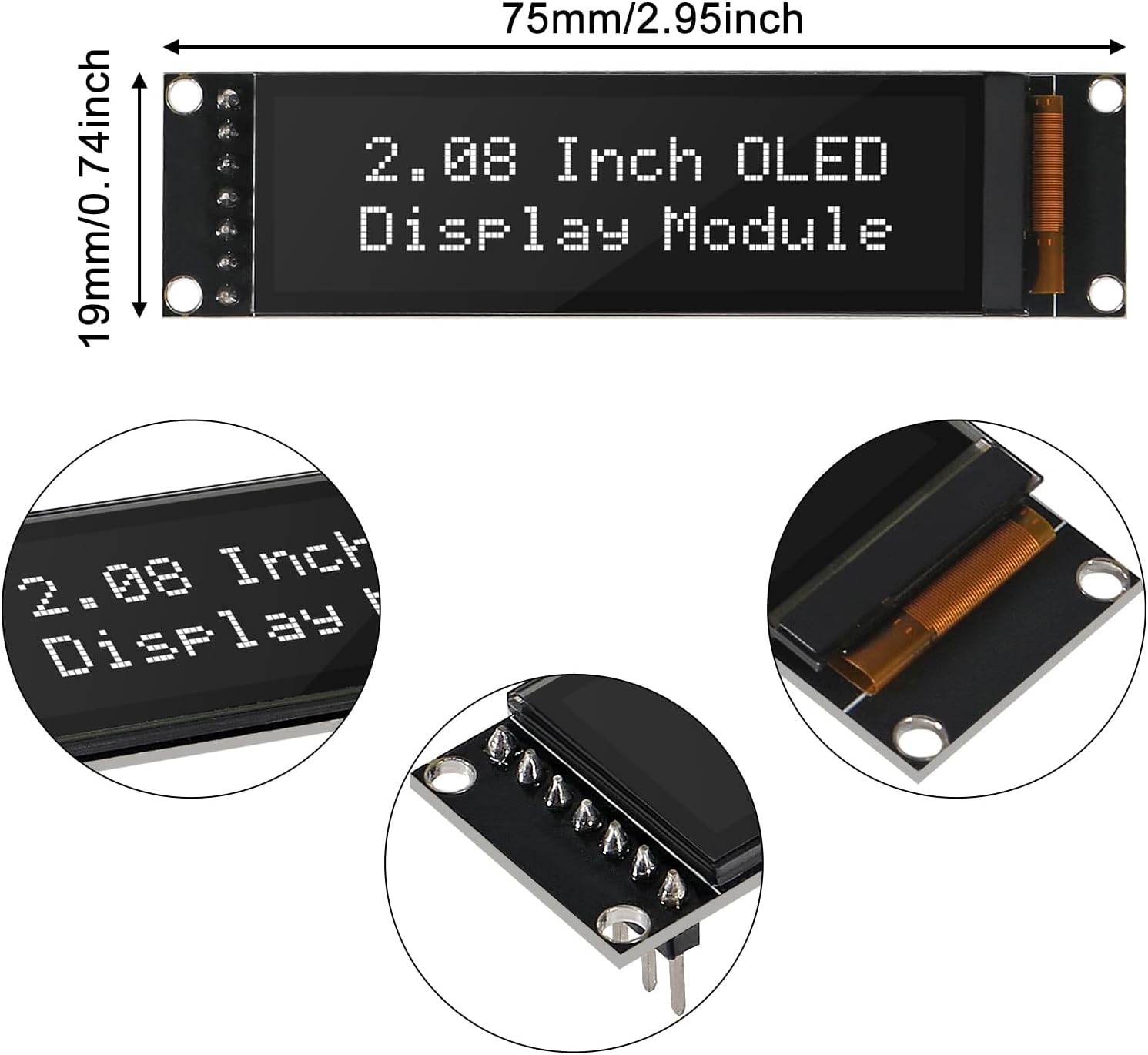

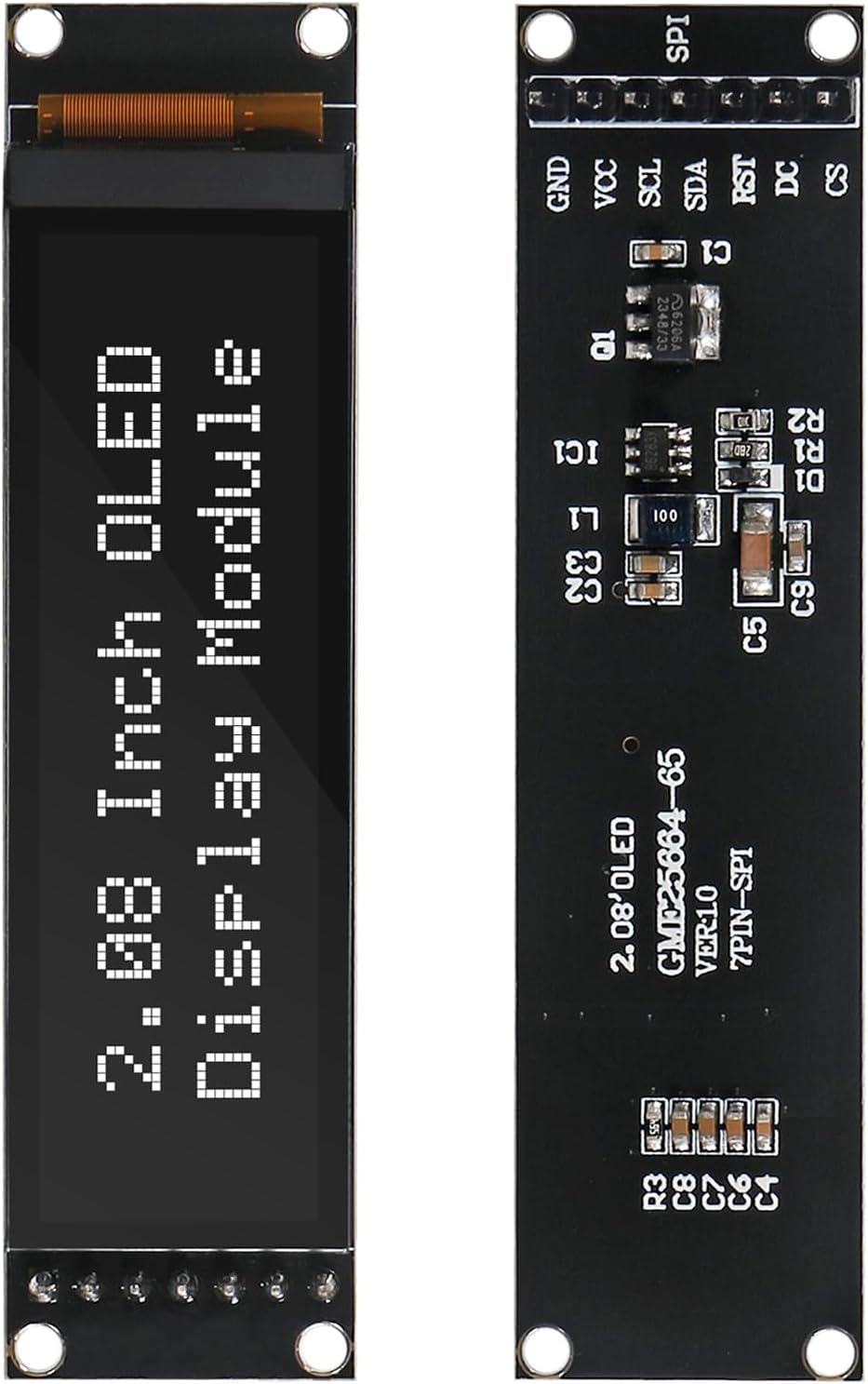

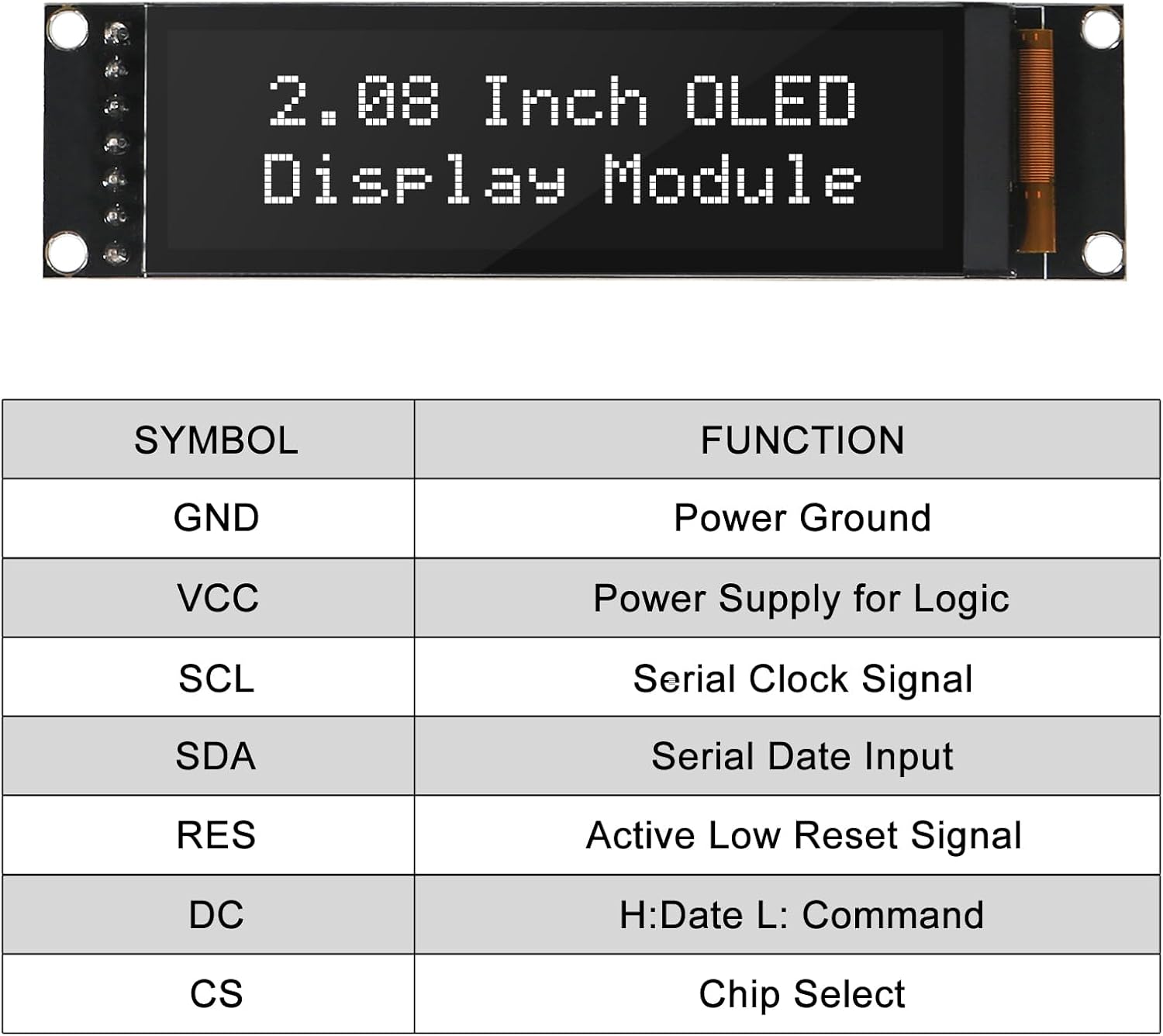

Description: Driver chip: SH1122 Interface: 4-wire SPI Resolution: 256*64 Display size: 2.08 inches Display color: White OLED mode: negative, fully transparent Grayscale type: supports 16 Levels of Crayscale Working temperature: -40C~70C Storage temperature: -40C~85C Working voltage: 3.0-5V Module sizes: 75.5mm19.35mm5.9mm Viewing area: 53.18mm14.78mm Effective area: 51.18mm12.78mm Point distance: 0.20mm0.20mm Dot size: 0.18mm0.18mmPin Definition: 1. GND power supply negative terminal 2. VIN power supply positive 3. SCL clock 4. SDA data 5. RES reset 6. DC commands/data 7. DS Chip selection

Brand: D-FLIFE

256, supports levels, levels, module inch, computers accessories, display spi, accessories computer, spi pin, sh1122, wires supports, computer, supports Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ 2.08' Inch SH1122 256x64 OLED Display Module
• ✓ 2.08 Inch 256 * 64 OLED LCD Display SPI 7 Pin 4 Wires Supports 16 Levels of Crayscale
• ✓ OLED mode: negative, fully transparent
• ✓ 2.08' SH1122 256x64 OLED Display Module 2.08 Inch 256 * 64 OLED LCD Display SPI 7 Pin 4 Wires
• ✓ Resolution: 25664; Display Color: White
