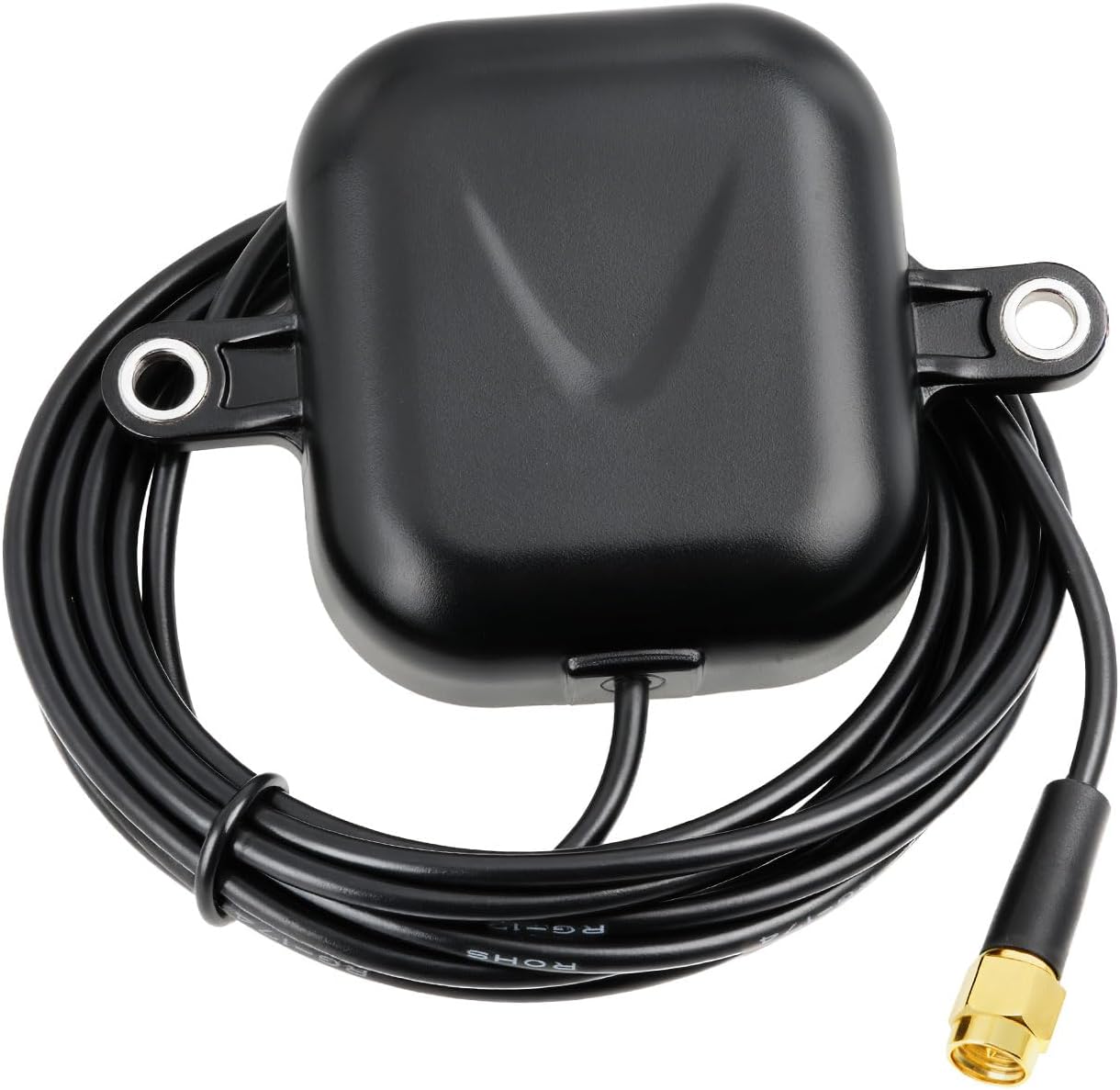

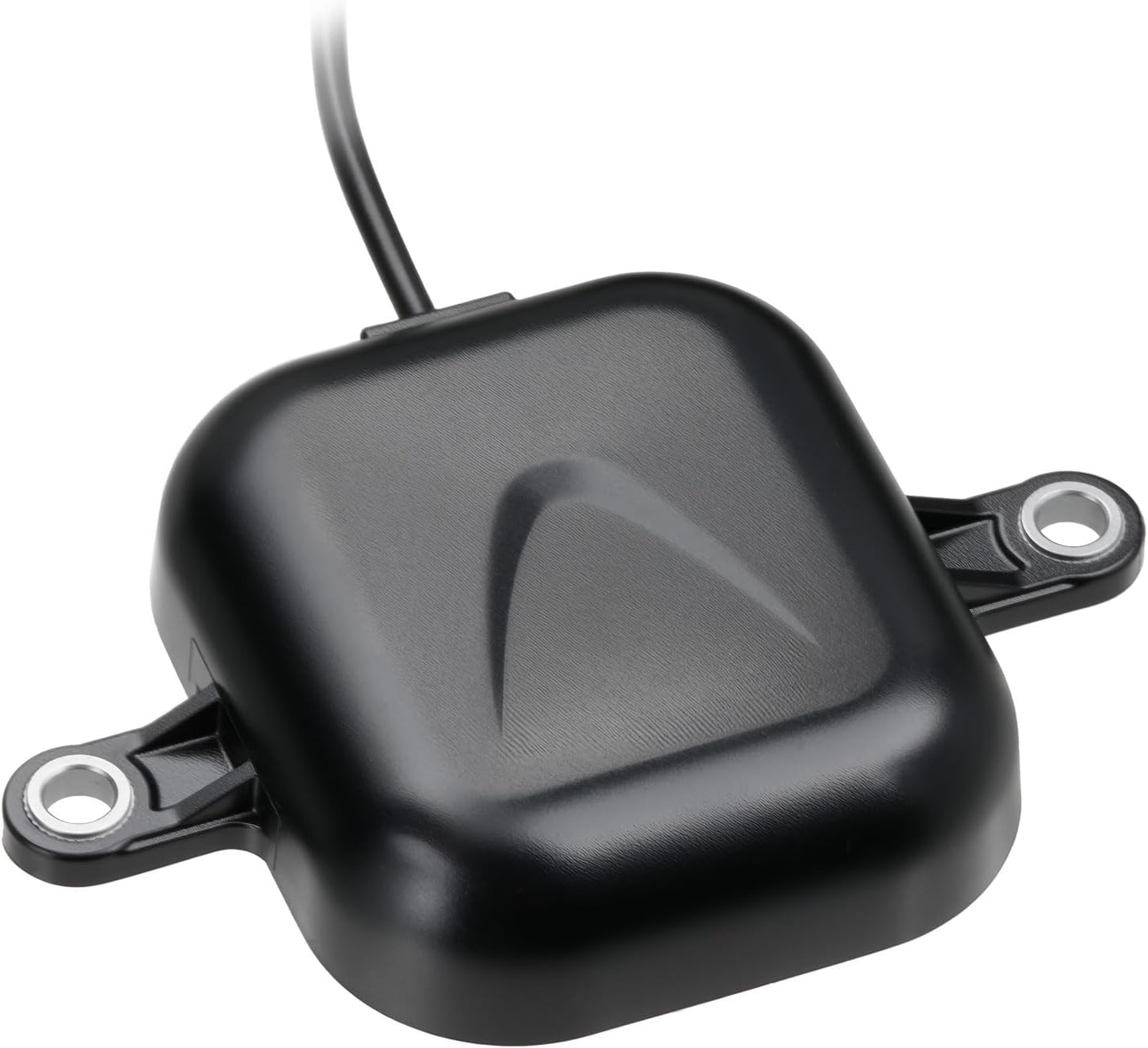

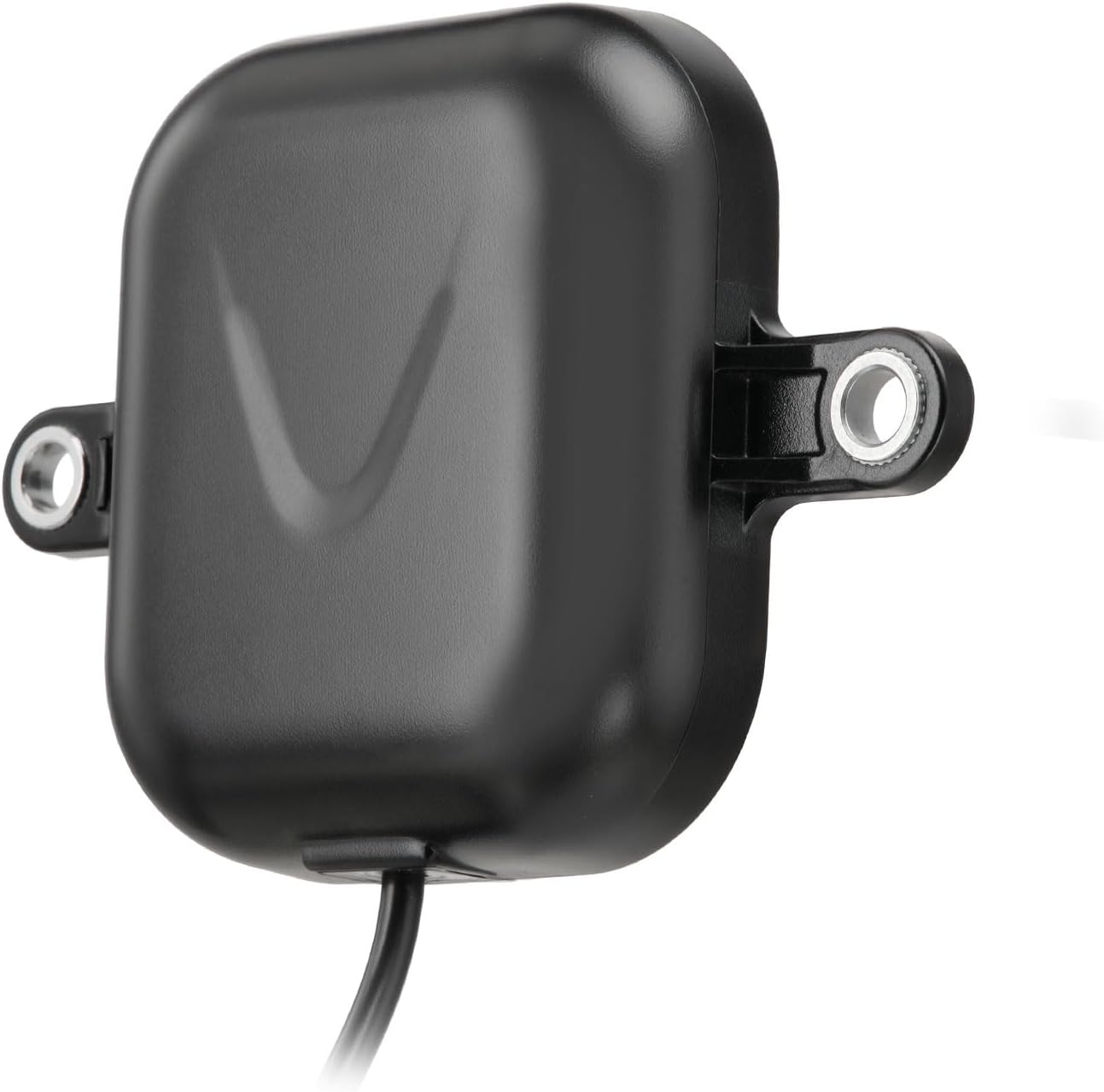

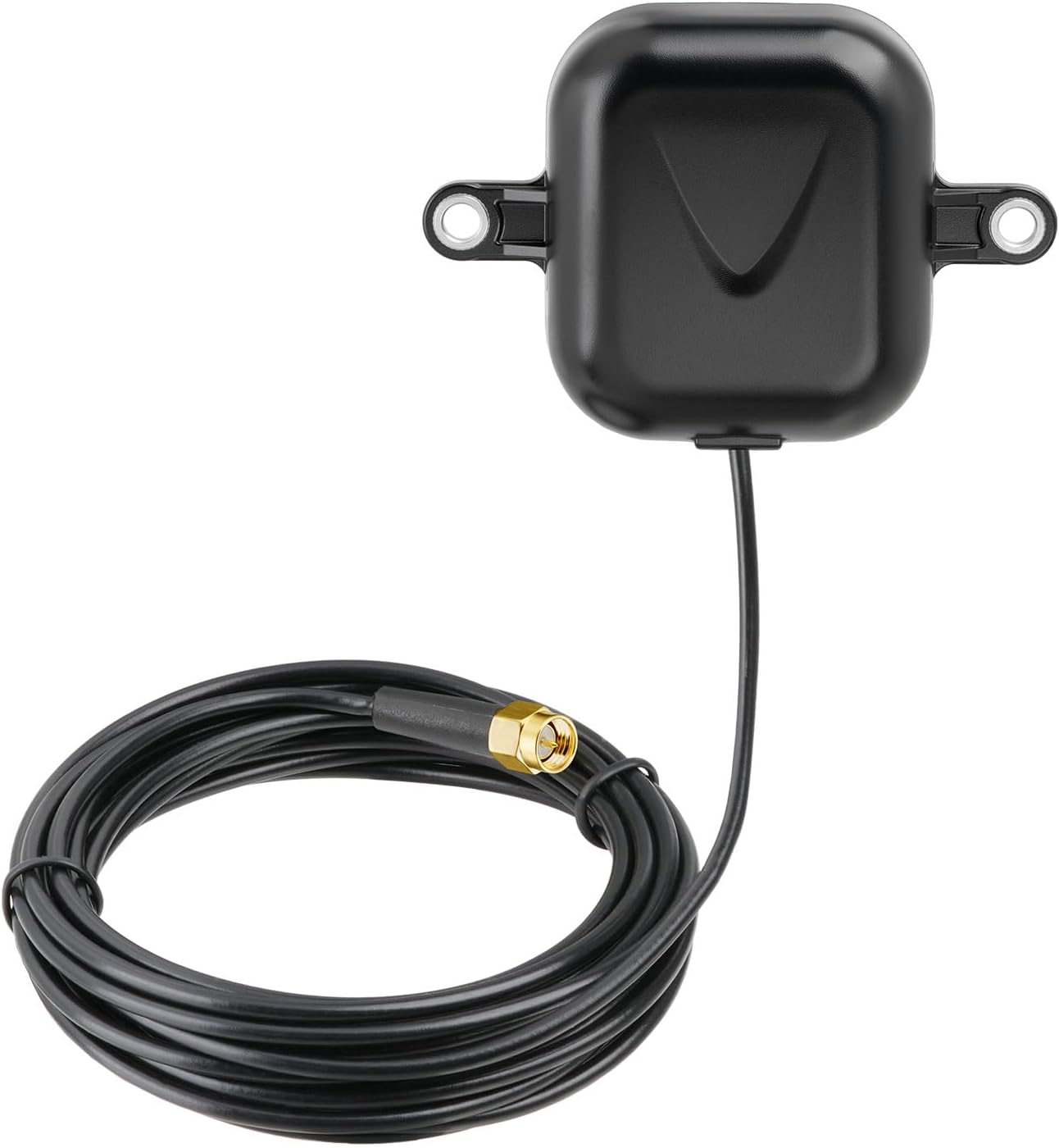

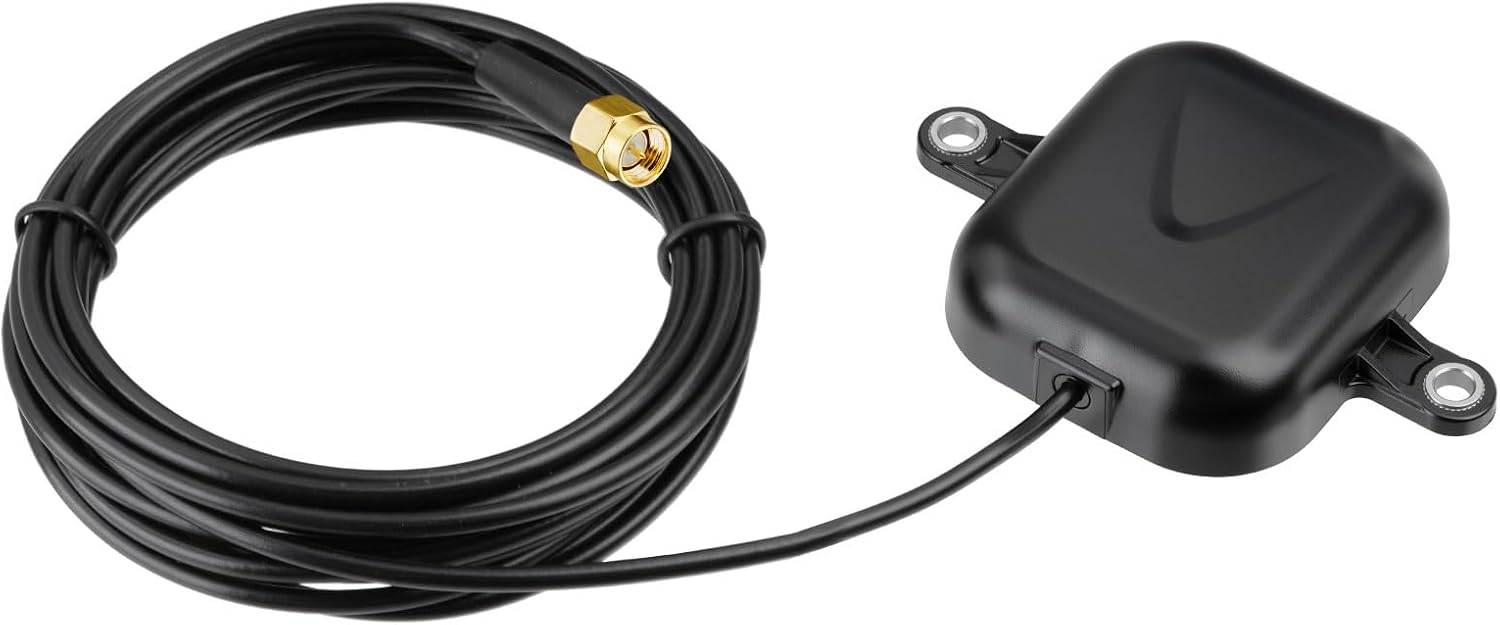

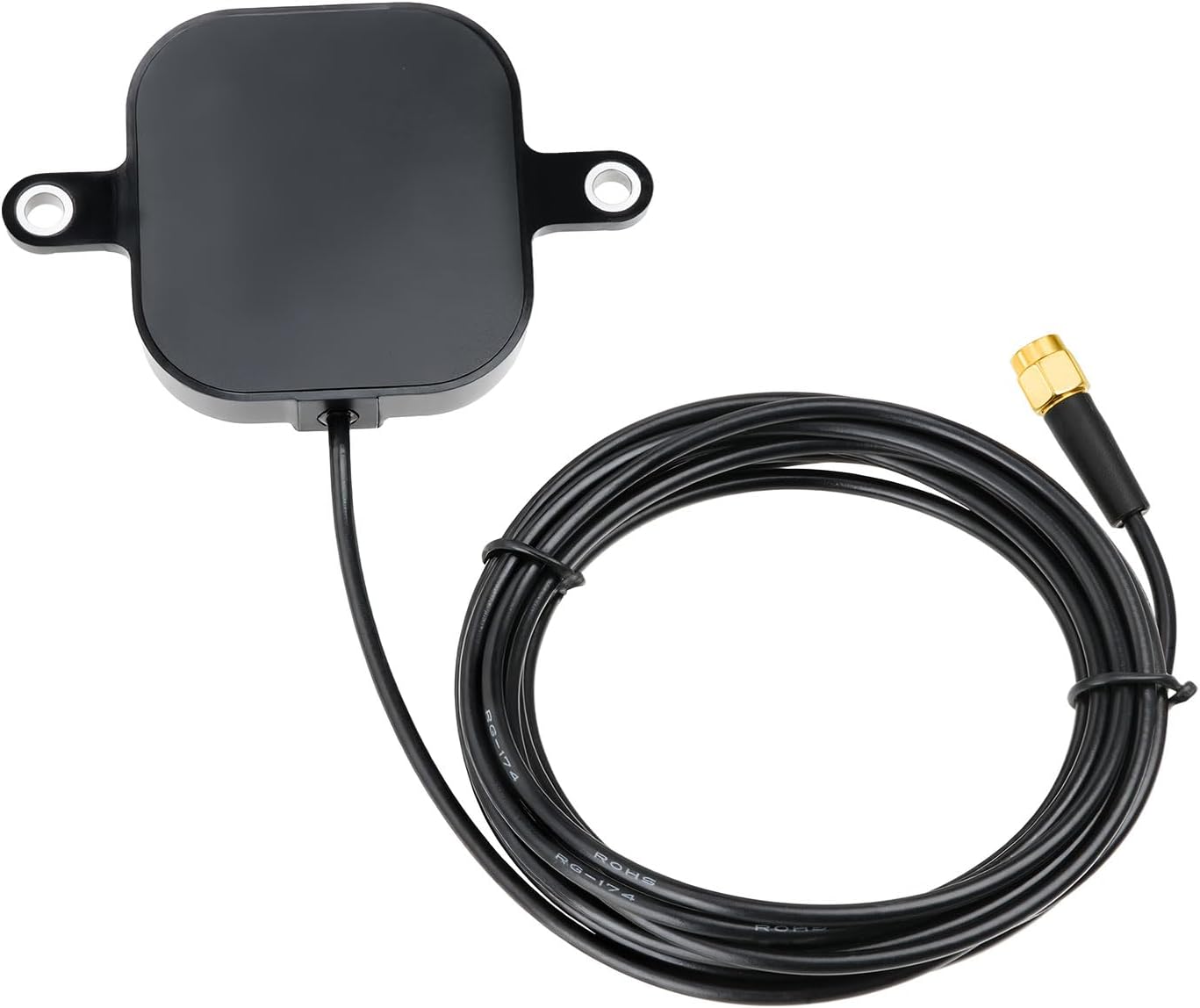

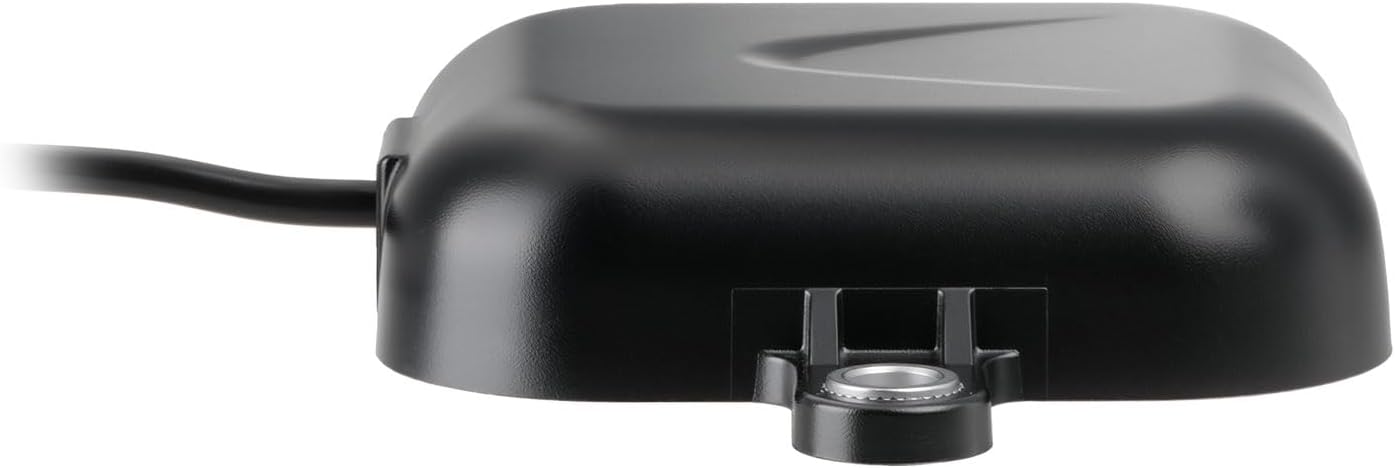

BINGFU 28dB RG174 10 Active GPS + BD Dual System Car Navigation SMA Antenna Gain Satellite Positioning Antenna with ft

Bingfu Active GPS + BD Dual System Car Navigation SMA Antenna 28dB Gain Satellite Positioning Antenna with RG174 10 ft Cable for Vehicles

BINGFU 28dB RG174 10 Active GPS + BD Dual System Car Navigation SMA Antenna Gain Satellite Positioning Antenna with ft

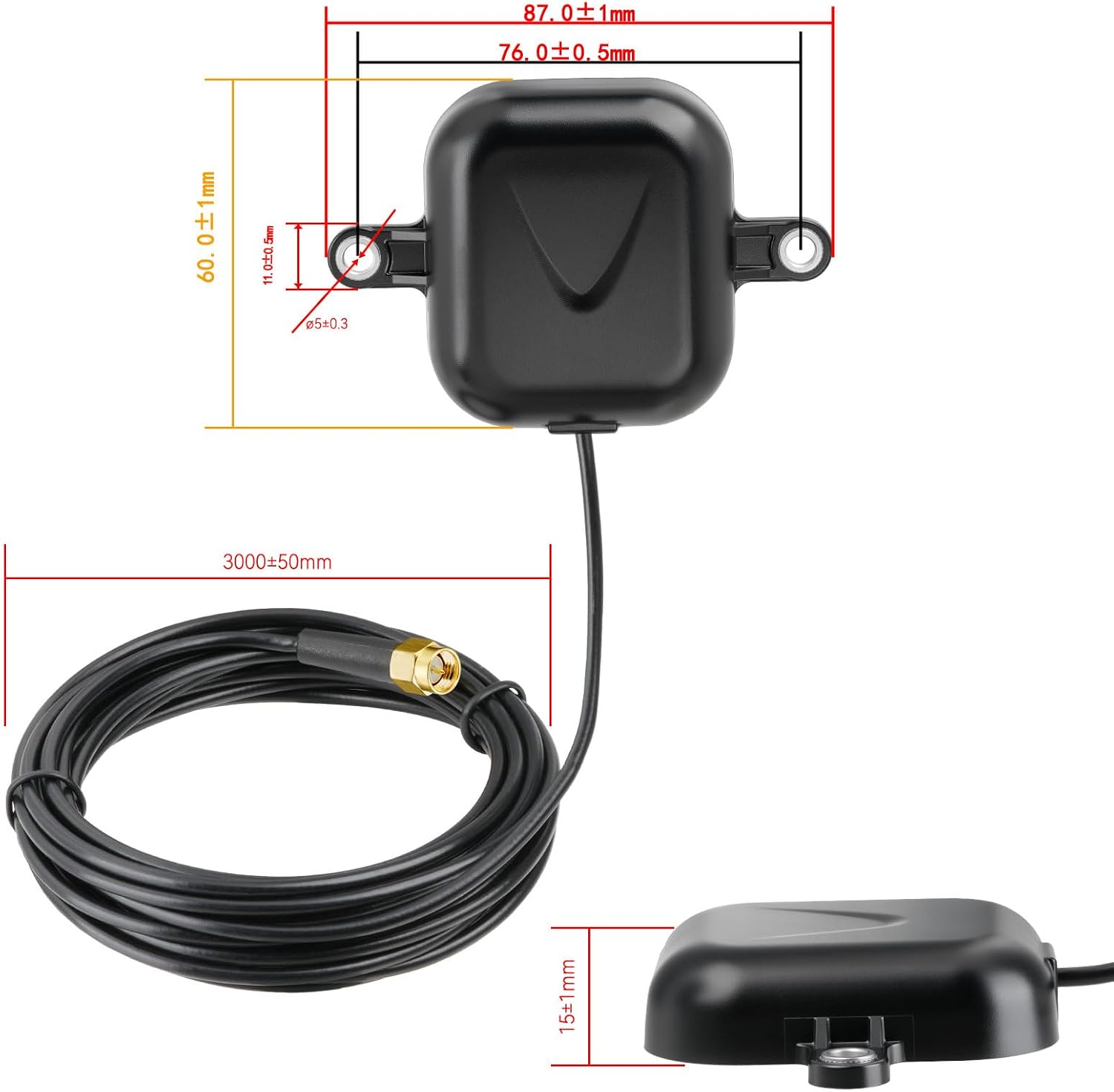

Specification: BeiDou: 1561.0982.046MHz GPS: 1575.421.023MHz Bandwidth: >5MHz Gain: 4.5dBic (zenith-mounted) VSWR: 2.0 Polarization: Right-Hand Circular (RHCP) LNA Specifications: Gain: 28dB Noise Figure: <1.5dB Operating Voltage: 3.0-3.6V DC Current Consumption: 30mA @3.3V Mechanical & Environmental: Dimensions: 87*60*15mm (optimized for horizontal mounting) Cable: RG174, 10ft Connector:SMA male Operating Temperature: -40C to +85C Storage Temperature: -40C to +90C Certifications & Compliance: RoHS compliant IP65 waterproof rating Vibration resistant (sine sweep 10-50Hz) Applications: Automotive fleet management IoT asset tracking devices Industrial equipment monitoring Marine navigation systems Packing List:1 x Combination Antenna

Brand: BINGFU

gain satellite, accessories gps, satellite positioning, active gps, car, sma, dual, antenna, cable, electronics gps, dual system, antenna 28db Electronics GPS, Finders & Accessories GPS System Accessories Antennas

Key Features

• ✅ Stable Navigation: Experience satellite tracking with simultaneous BeiDou and GPS reception; Supports 1561 MHz BD and 1575 MHz GPS frequencies for stable navigation
• ✅ Enhanced Signal:High gain amplifier and ultra low noise design significantly boost weak satellite signals; Ensures quick location fixes and consistent connection
• ✅ All Weather Design:Built tough for your adventures with waterproof enclosure rated IP65; Performs flawlessly from scorching heat 85 degrees C down to freezing cold minus 40 degrees C

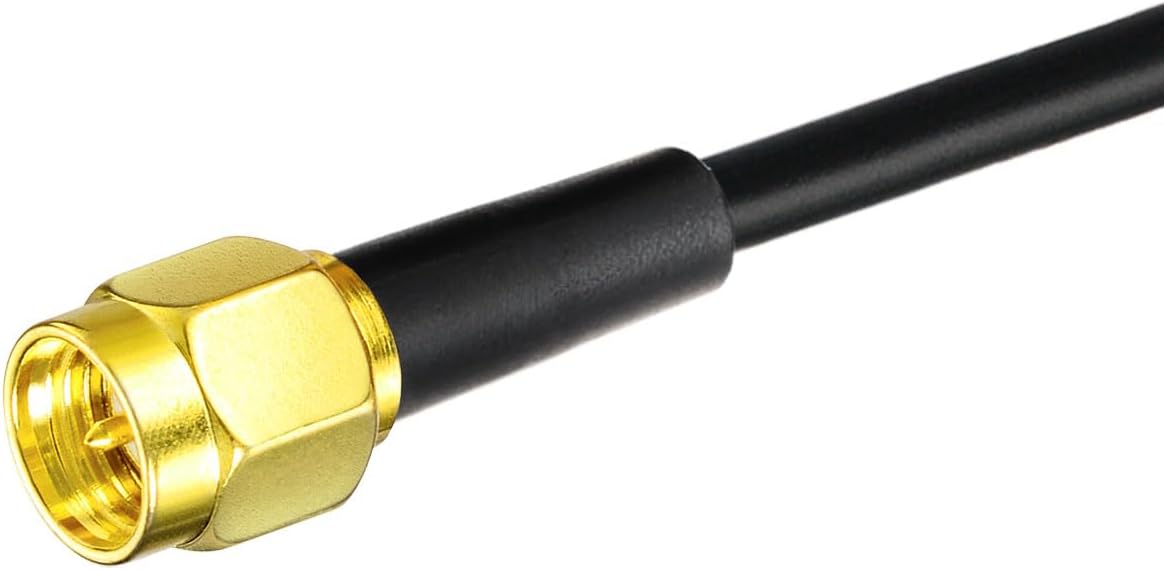

• ✅ Easy Plug and Play Setup:Install instantly using the included long 10 ft RG174 cable with SMA male connector; Low power draw under 30 mA at 3.3 V means hassle free integration with your navigation device
• ✅ Optimized For Vehicle Use:Horizontally mounted antenna design delivers excellent satellite signal reception; Superior build quality with vibration resistance ensures long lasting performance on any road

Product Details

• ✅ Model Number: BFUSAN0558
• ✅ Color: Black
