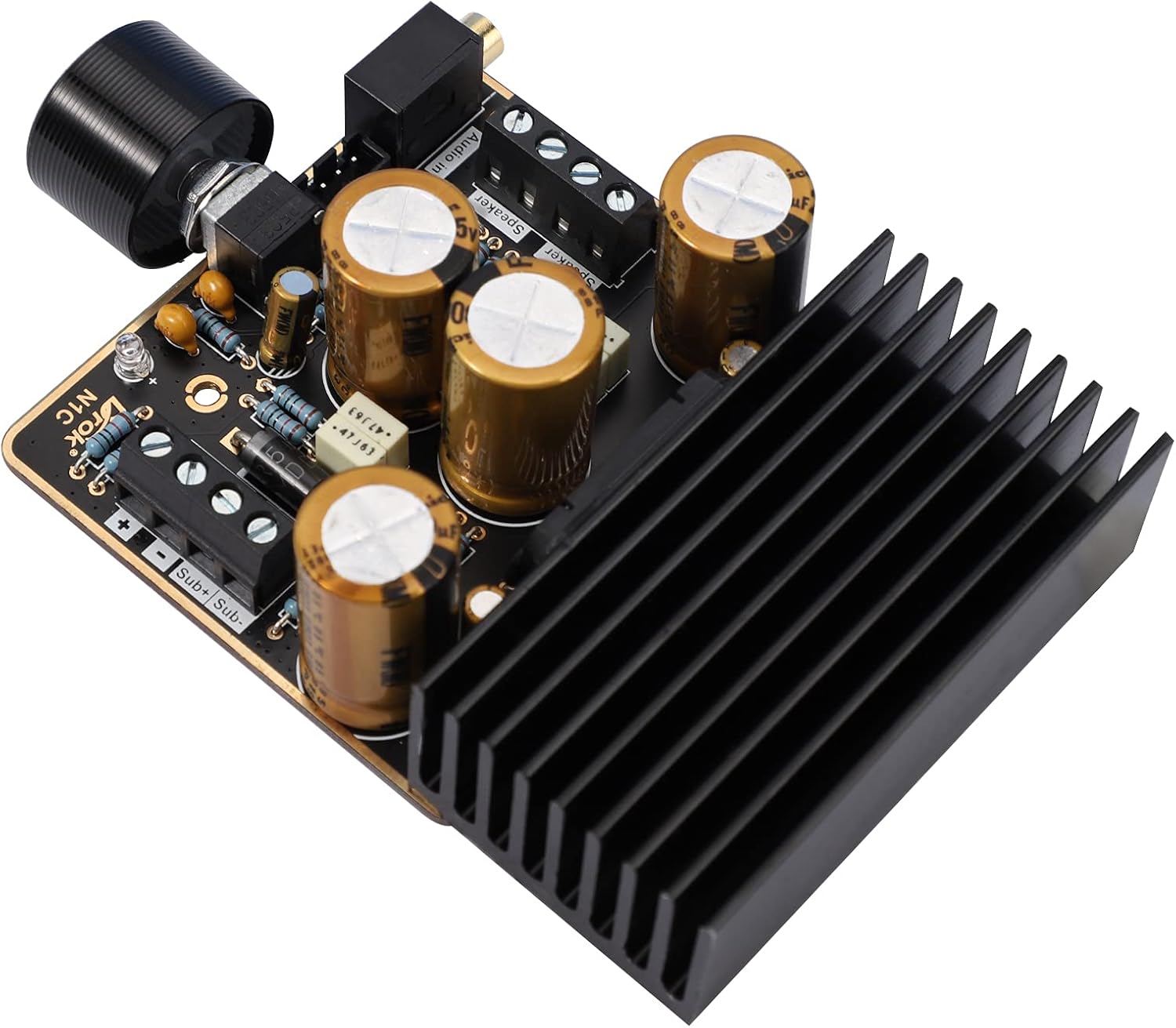

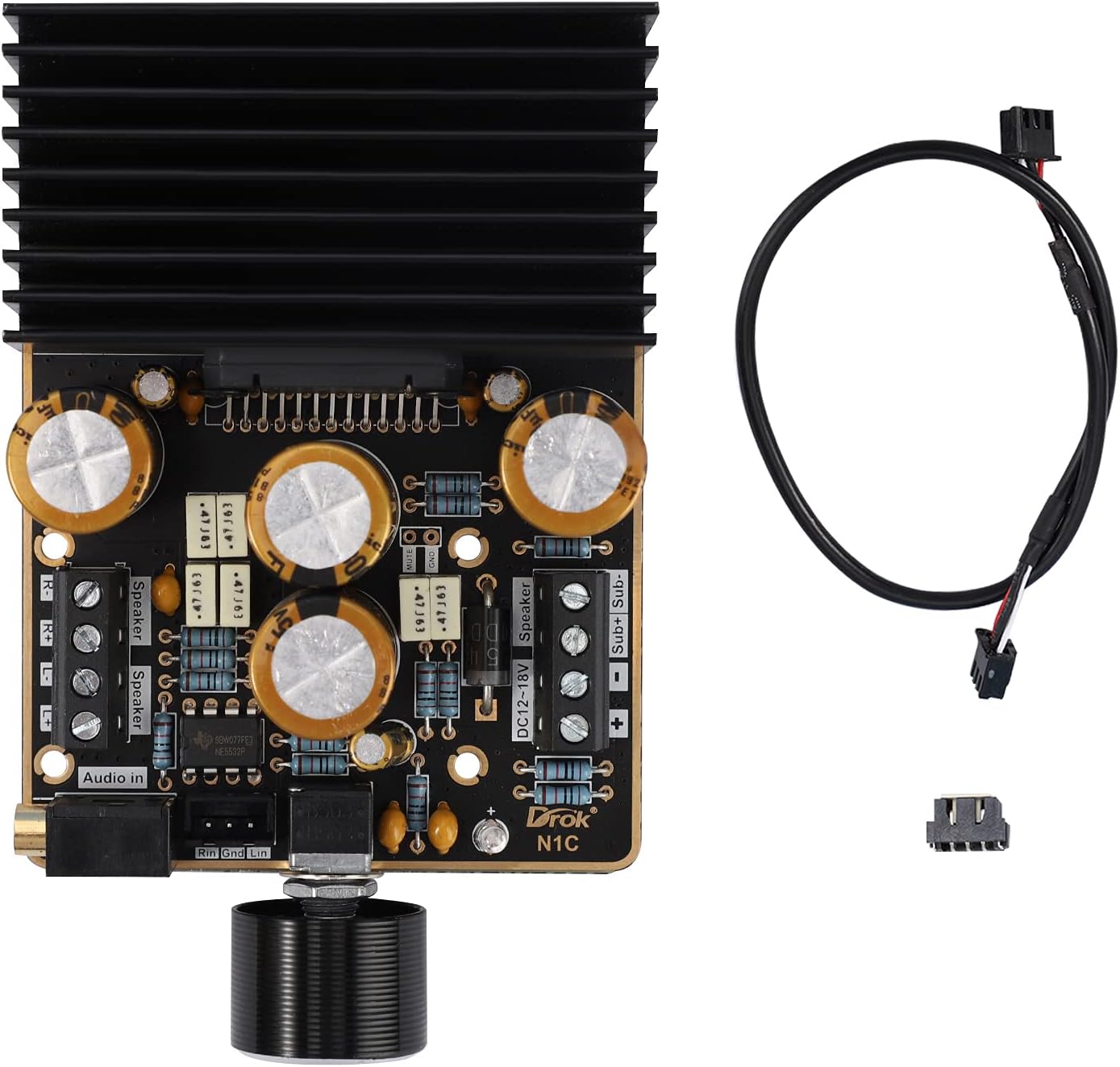

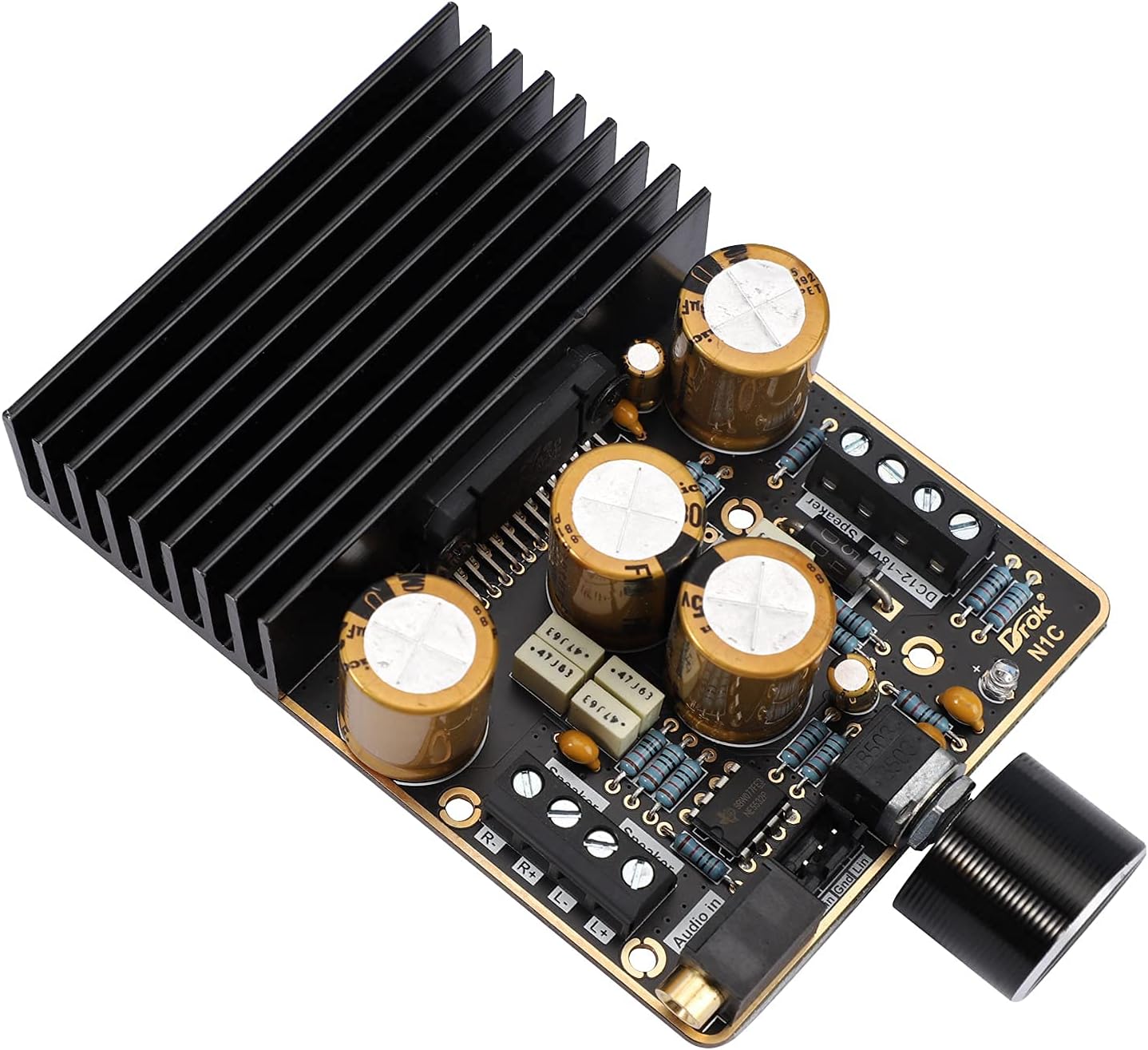

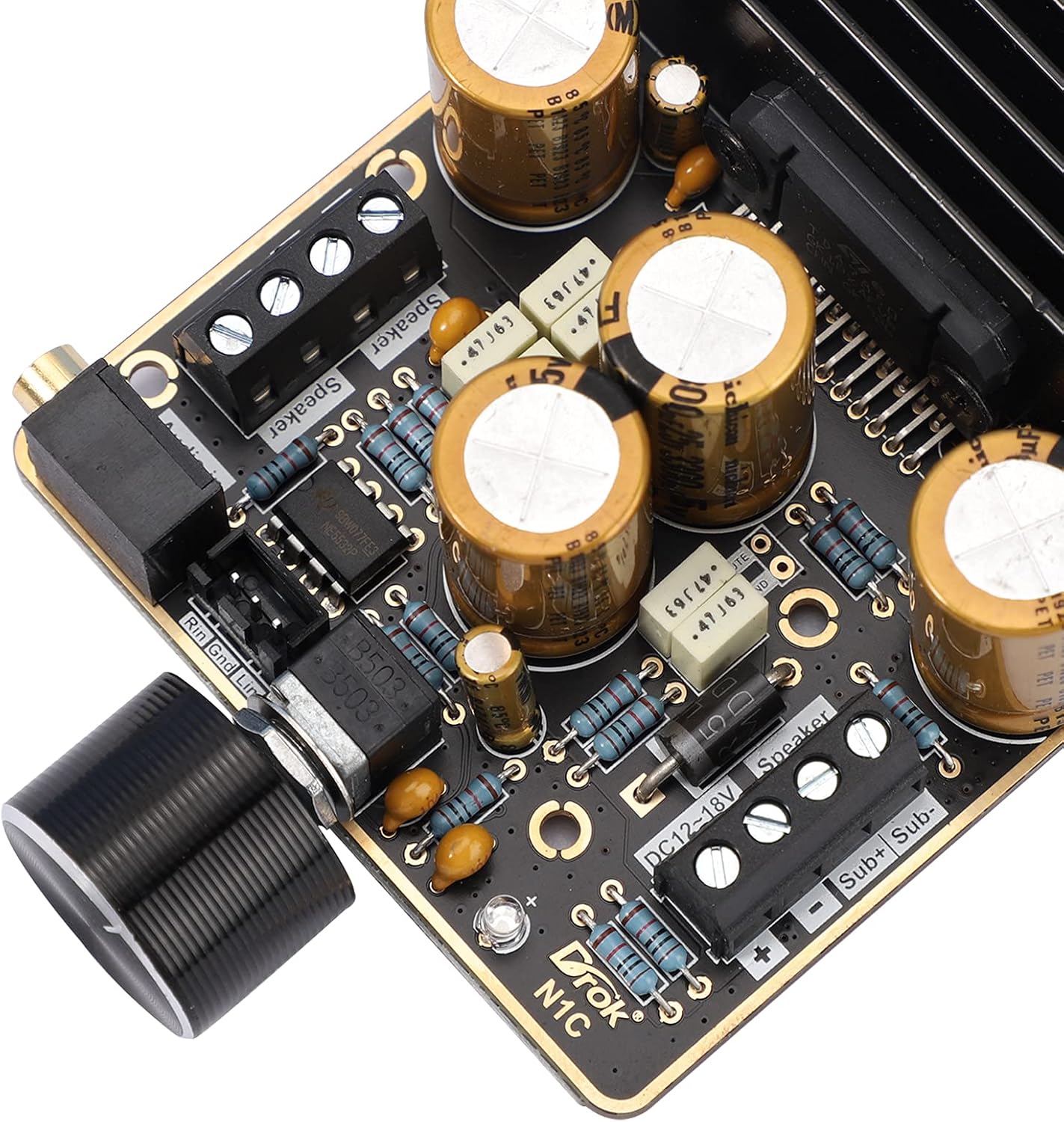

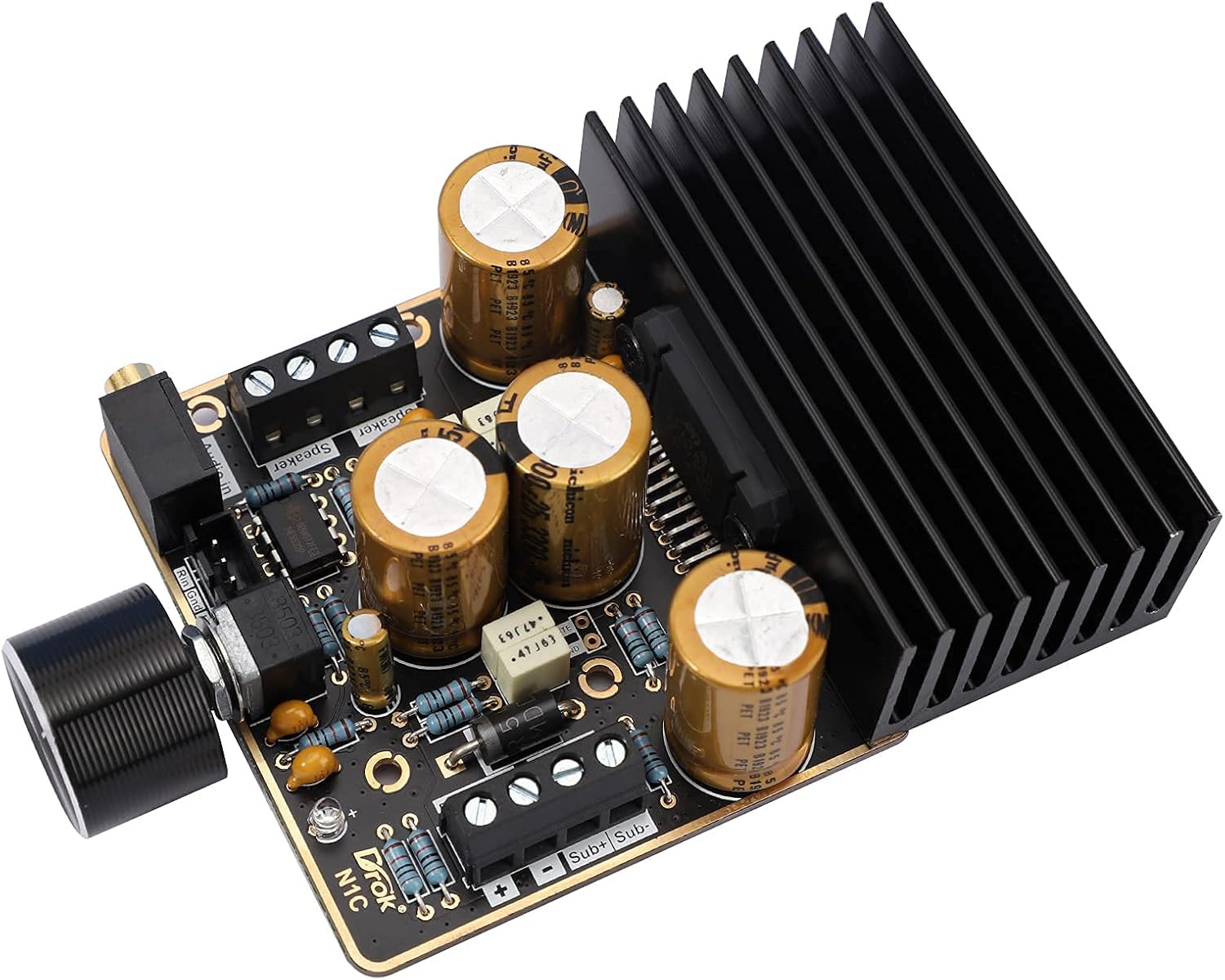

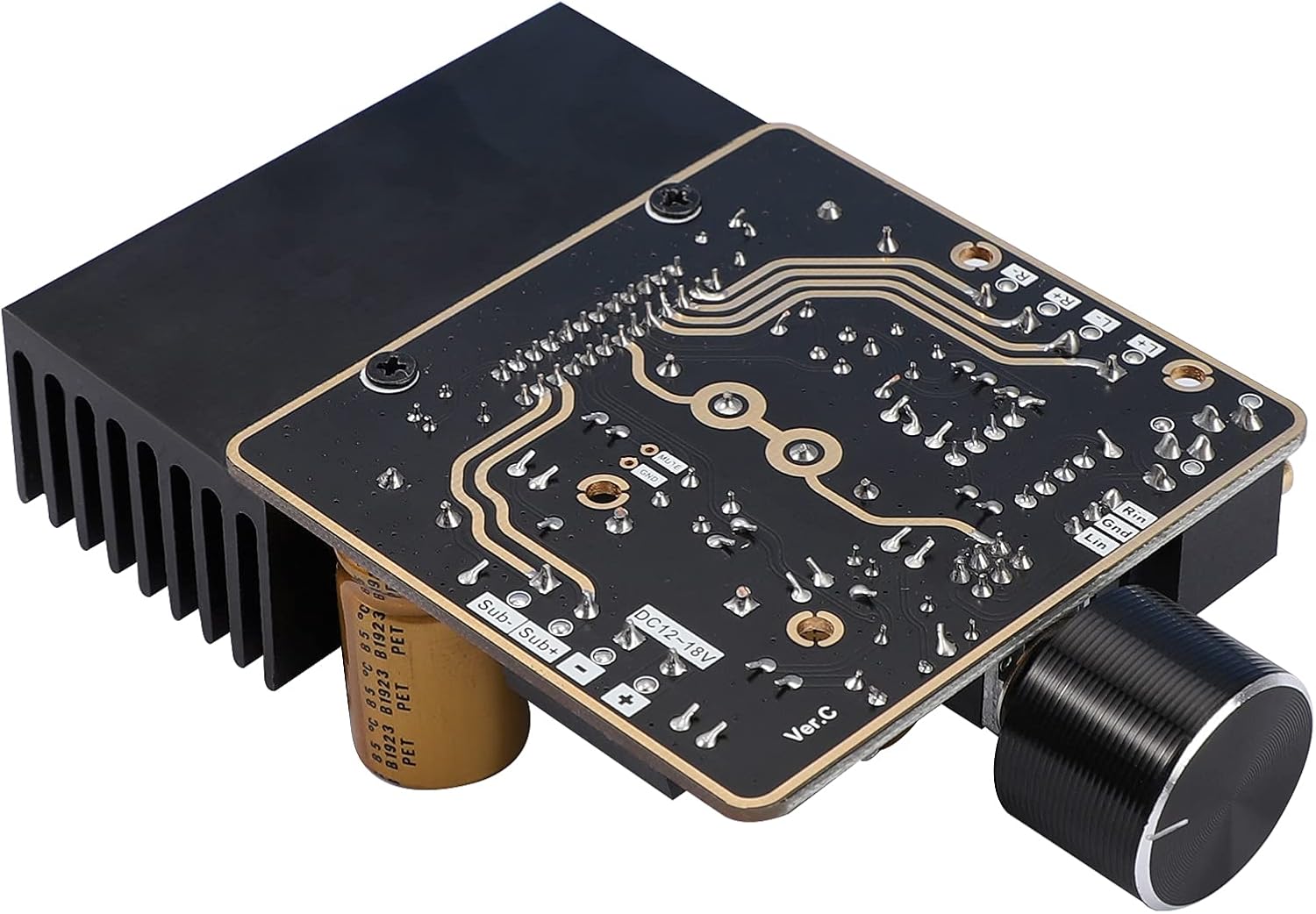

2.1 80W+80W and120W 9-18V 4 DROK Class AB Amplifier, Channel Stereo Pure Bass Audio Amplifier Board

DROK Class AB Amplifier, 2.1 Channel 80W+80W Stereo and120W Pure Bass 9-18V 4 Audio Amplifier Board

2.1 80W+80W and120W 9-18V 4 DROK Class AB Amplifier, Channel Stereo Pure Bass Audio Amplifier Board

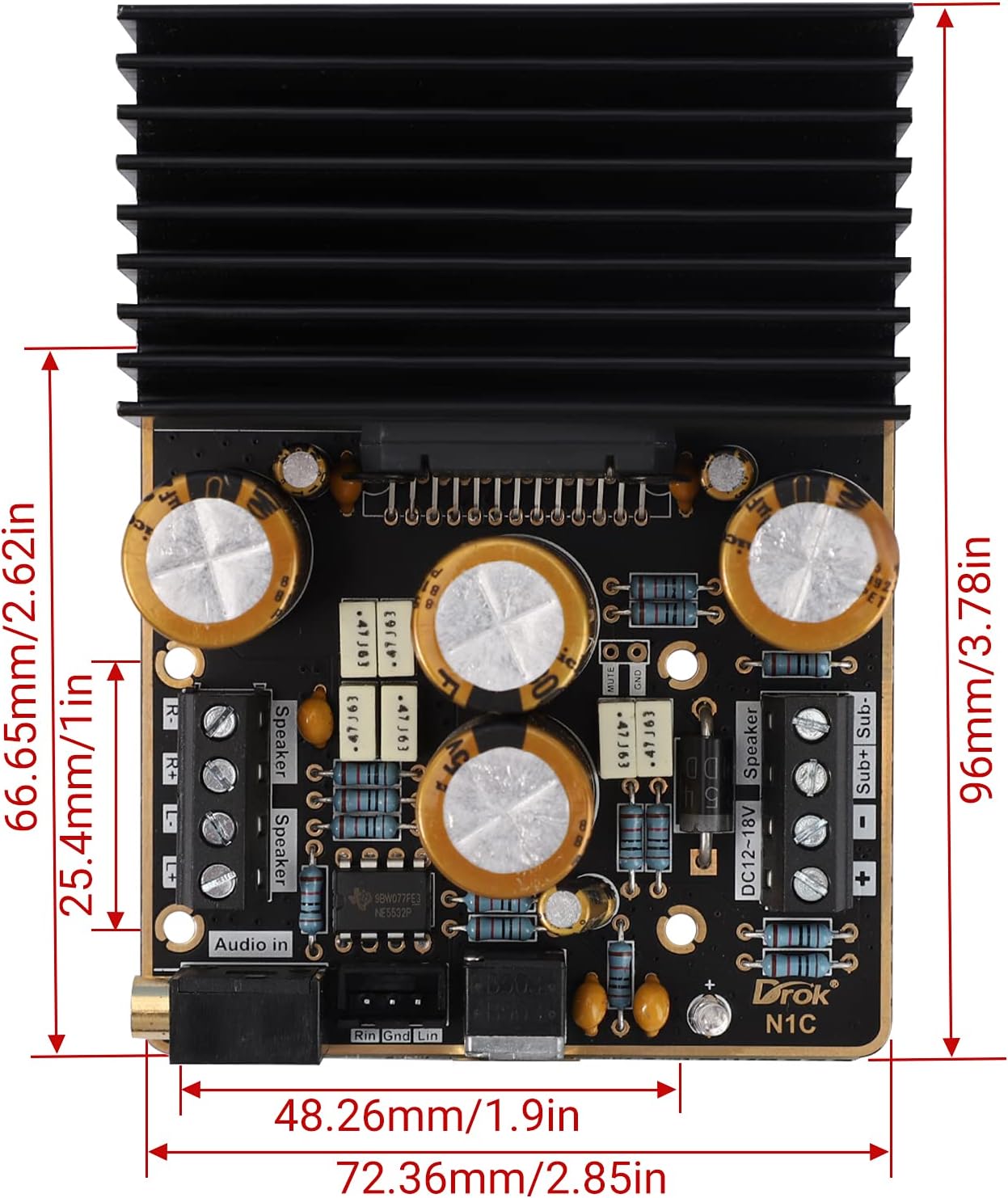

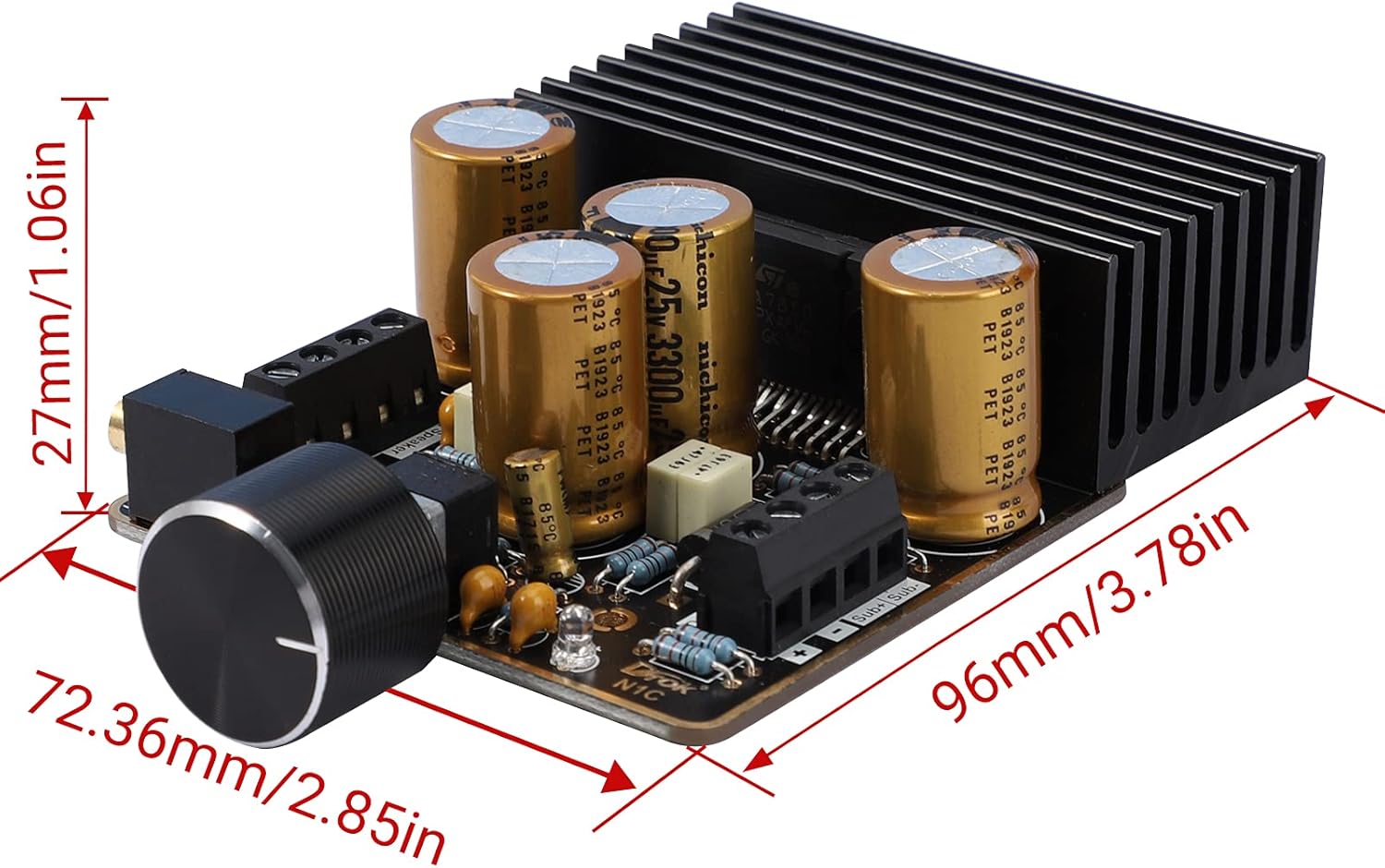

Parameter: Working Voltage: DC 9 - 18V Output Power: Max 2x80W stereo(18V/4), 1x120W pure bass(18V/2) Connecting: 2/4/6/8 speaker Input Method: 3.5mm audio input or 3P_2.54mm terminal input Protection: input anti reverse-connect protection, output short circuit protection, over current protection (OCP), over temperature protection (OTP). PCB Size: 72.36mm*66.65mm(length*wide) Overall Size(radiator included): 72.36mm*96mm*27mm Potentiometer Rotating Handle Opening: 7mm Installing Hole Spacing: 25.4mm*48.26mm(compatible for blue-tooth module spacing) Installing Hole Size: M3

Brand: DROK

drok class, home, channel, amplifier channel, stereo, and120w pure, home theater, 18v, 18v audio, amplifier, board electronics, bass 18v Electronics Home Audio Home Theater Receivers & Amplifiers Amplifiers

Key Features

• ✓ Parameter --- Working Voltage: DC 9-18V, Output Power: Max 2x80W Stereo(18V/4), 1x120W Pure Bass(18V/2), 2.1 Channels Recommended 2/4/6/8 Speakers, Can be Powered by 9V 12V.
• ✓ 3.5mm/3P Input --- This Amplifier Board Support Two Types of Input: 3.5mm Audio Input or 3P_2.54mm Terminal Input.
• ✓ Feature --- Eliminate Background Noise and Bring Better Sound Effect. Four 3300UF Professional Audio Filter Capacitors; Vehicle Level Amplifier Chip; Gold Plated Audio Input Terminal; Pure Blakc Sealing Potentiometer.
• ✓ Protection --- Input Anti Reverse-Connect Protection, Output Short Circuit Protection, Over Current Protection(OCP), Over Temperature Protection (OTP).
• ✓ Warranty Guarantee --- 1 Year Long-Term Warranty Guarantee Since Purchased the Product.
