0.96" I2C 128X64 SSD1306 51 MSP420 STIM32 (1pc OLED Module IIC Serial OLED Display Module Driver for Arduino SCR

0.96' OLED Module I2C IIC Serial 128X64 OLED Display Module SSD1306 Driver for Arduino 51 MSP420 STIM32 SCR Raspberry PI (1pc X White)

0.96' I2C 128X64 SSD1306 51 MSP420 STIM32 (1pc OLED Module IIC Serial OLED Display Module Driver for Arduino SCR

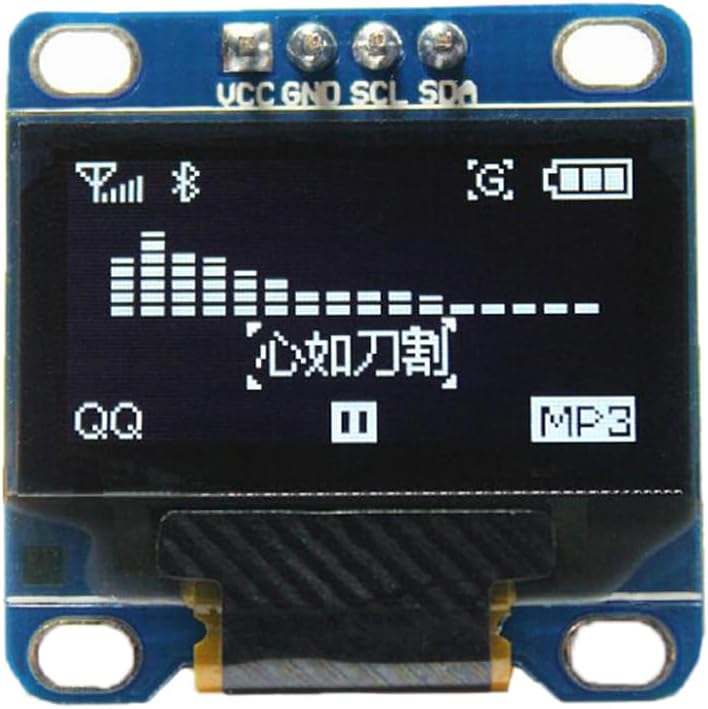

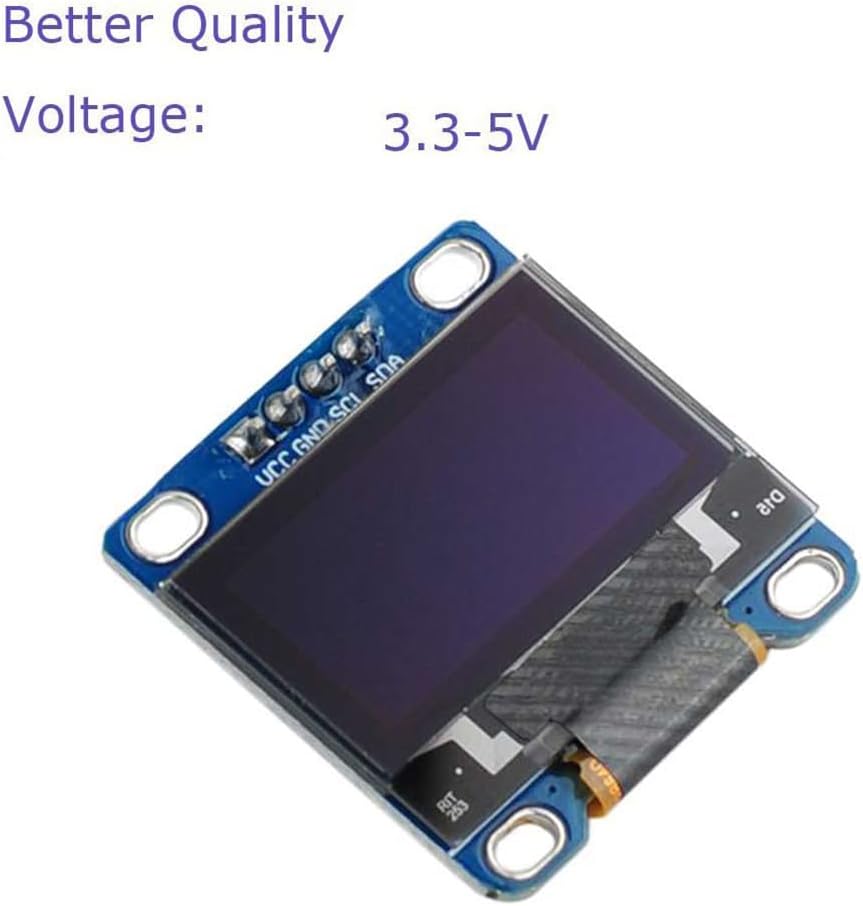

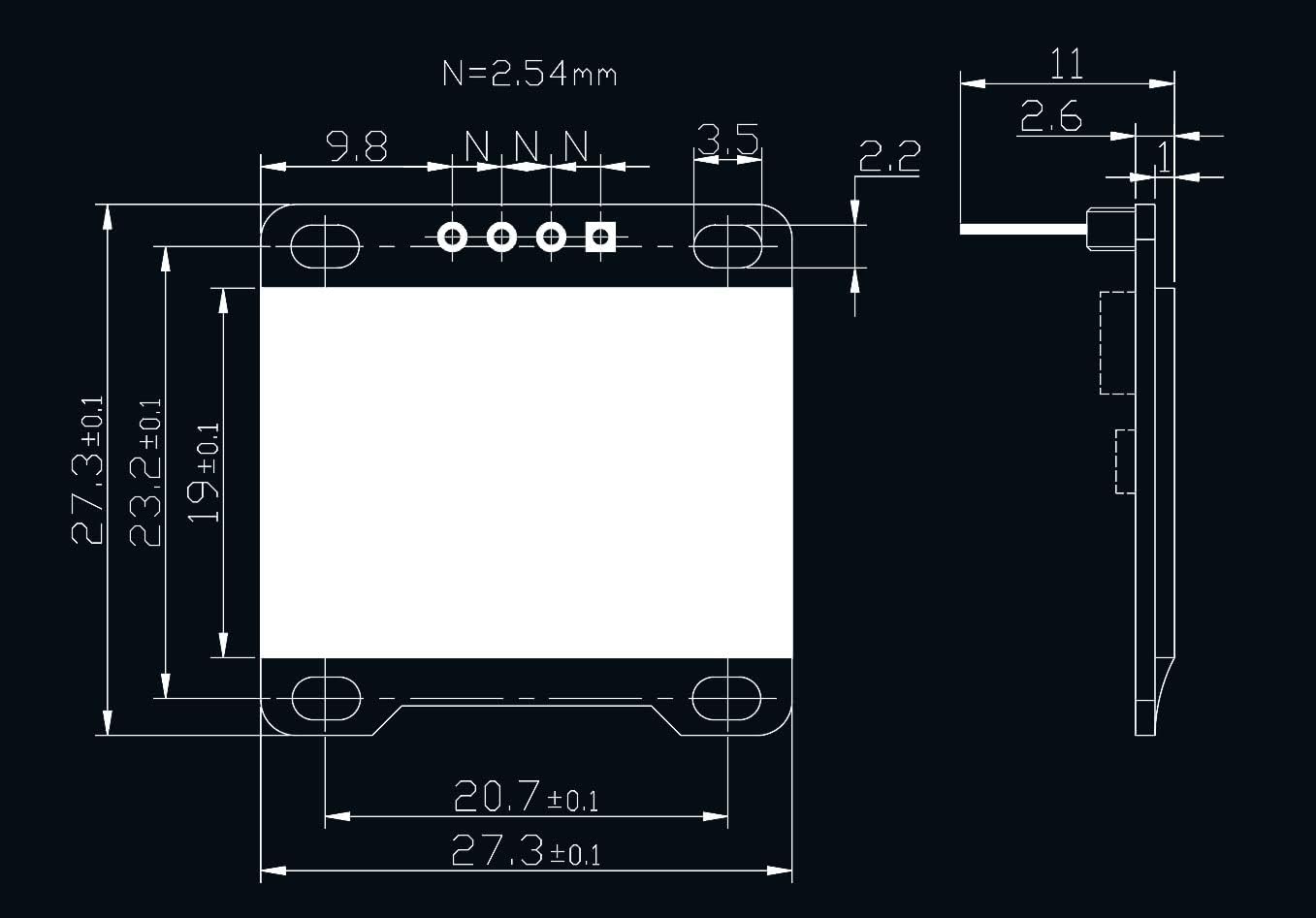

- Size: 0.96 - Resolution: 128X64 - Viewing angle: greater than 160 degrees - Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips - Low power consumption: 0.04W during normal operation - Support wide voltage: 3.3V-5V DC - Working temperature: -30-80 degrees - Volume: 27MM * 27MM * 4.1MM - Driver IC: SSD1306 - Communication: IIC, only two I / O ports - No font: The software takes word modulo - Backlight: OLED self light, no backlight Interface: - VCC: 3.3-5V - GND: Ground - SCL: Serial Clock - SDA: Serial Data Package Included: 1 X IIC OLED Module

Brand: DIYmall

module i2c, i2c iic, 1pc white, computers accessories, oled module, accessories computer, driver arduino, i2c, 128x64, driver, 1pc, arduino msp420 Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ The screen is made in Taiwan, quality is much better. Compatible with MMDVMPi-Star, and it works with raspberry pi. https://tech(dot)scargill(dot)net/ssd1306-with-python/

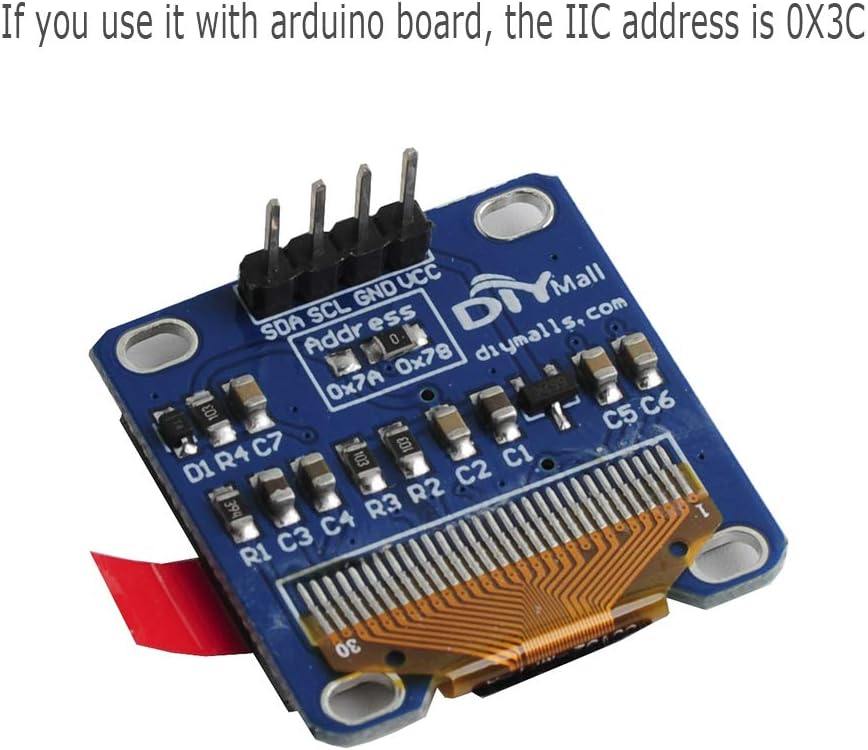

• ✓ The IIC address can be changed,it is convenient to use with different machines
• ✓ Four square holes are easy to install, and no need a pull-up resistor on the i2c lines from an arduino
• ✓ How to use these two oled display modules at the same time, pls check the vedio for reference: https://www(dot)youtube(dot)com/watch?v=yef23sJjiU0
• ✓ What You Get: 1 X 0.96 White OLED Module.

Product Details

• ✓ Color: 1pc X White
• ✓ Material Type: Plastic
